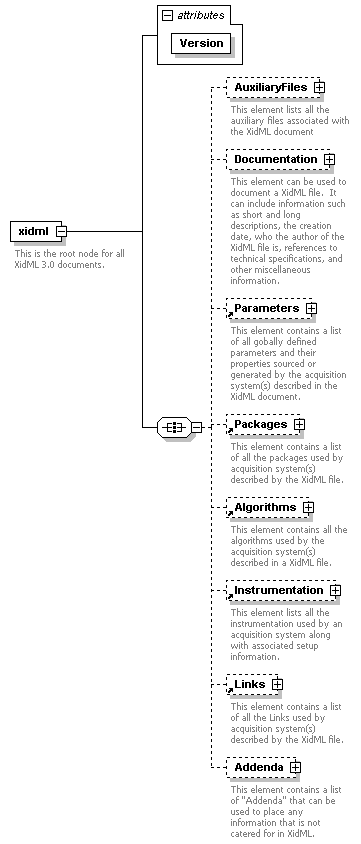

XidML Schema

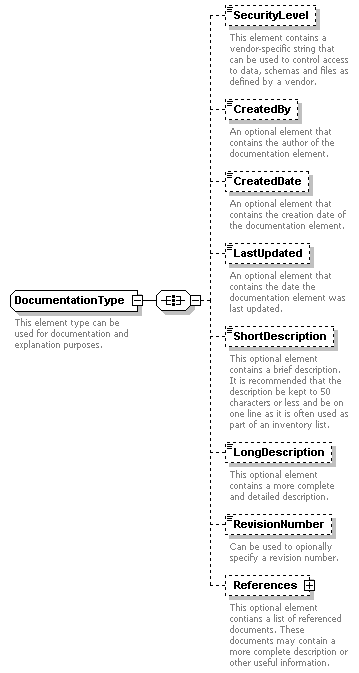

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

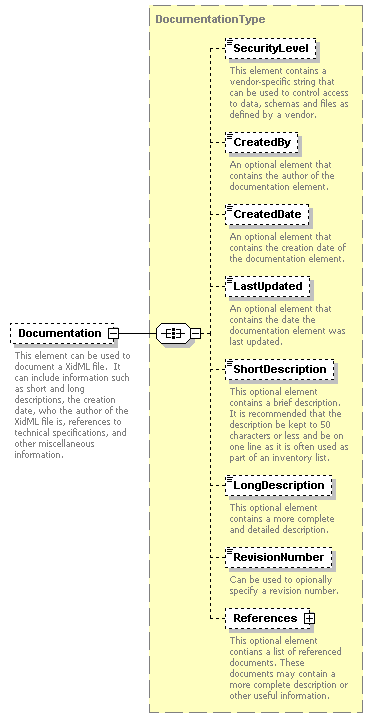

This element can be used to document a XidML file. It can include information such as short and long descriptions, the creation date, who the author of the XidML file is, references to technical specifications, and other miscellaneous information.

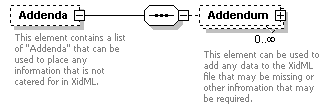

element
xidml/Addenda

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Addendum

annotation

documentation

This element contains a list of “Addenda” that can be used to place any information that is not catered for in XidML.

element

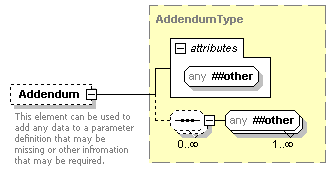

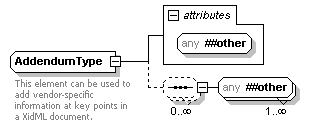

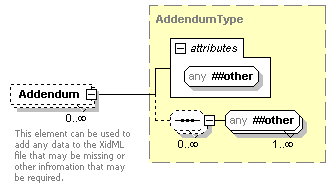

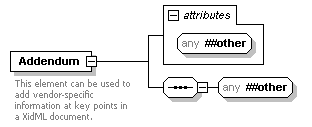

xidml/Addenda/Addendum

diagram


type

AddendumType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

used by

complexType

InstrumentGroupSet InstrumentSet

attributes

Name

Type

Use

Default

Fixed

annotation

documentation

This element can be used to add any data to the XidML file that may be missing or other infromation that may be required.

element

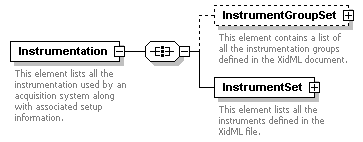

Instrumentation

diagram


properties

content

complex

children

used by

element

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInstrumentName		.//Instrument	@Name

annotation

documentation

This element lists all the instrumentation used by an acquisition system along with associated setup information.

element
Instrumentation/InstrumentGroupSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueTopLEvelGroupName		Group	@Name

annotation

documentation

This element contains a list of all the instrumentation groups defined in the XidML document.

element

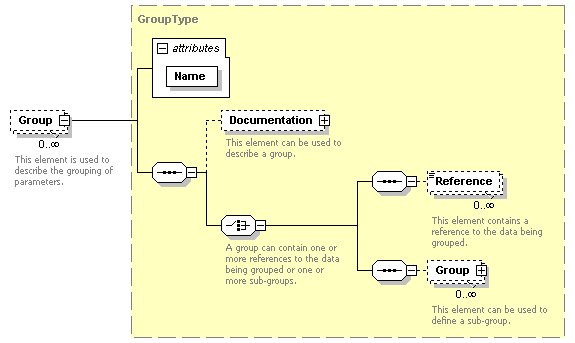

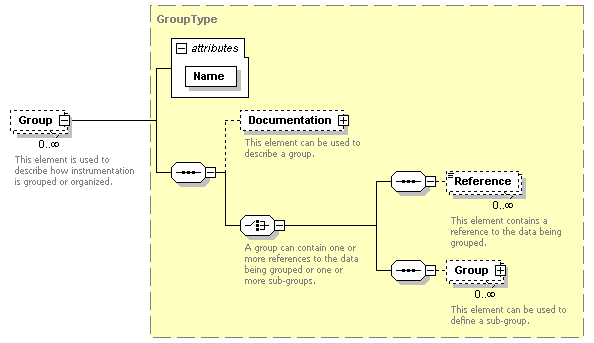

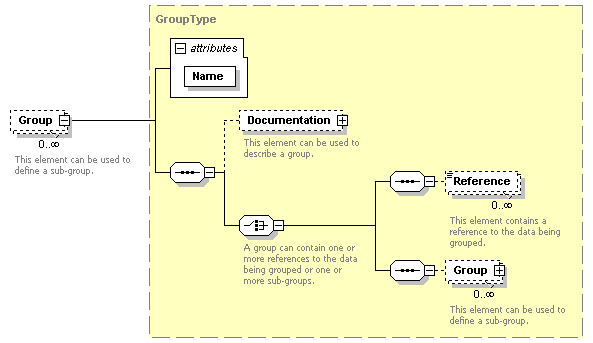

Instrumentation/InstrumentGroupSet/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

AlgorithmGroupSet AlgorithmSet

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element is used to describe how instrumentation is grouped or organized.

element
Instrumentation/InstrumentSet

diagram


properties

isRef	0
content	complex

children

InstrumentBase

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueGlobalInstrumentName		*	@Name

annotation

documentation

This element lists all the instruments defined in the XidML file.

element

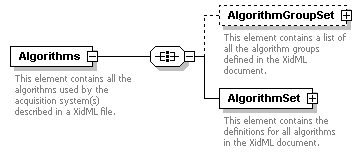

Algorithms

diagram


properties

content

complex

children

used by

element

annotation

documentation

This element contains all the algorithms used by the acquisition system(s) described in a XidML file.

element
Algorithms/AlgorithmGroupSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueAlgorithmGroupName		*	@Name

annotation

documentation

This element contains a list of all the algorithm groups defined in the XidML document.

element

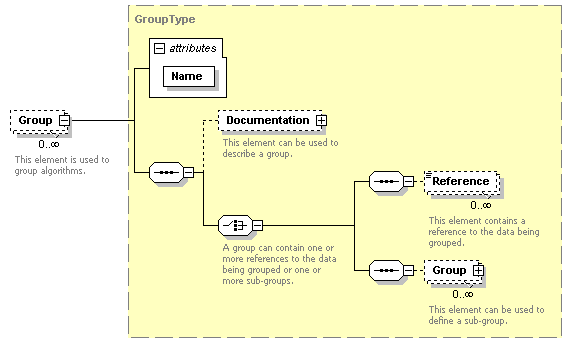

Algorithms/AlgorithmGroupSet/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element is used to group algorithms.

element

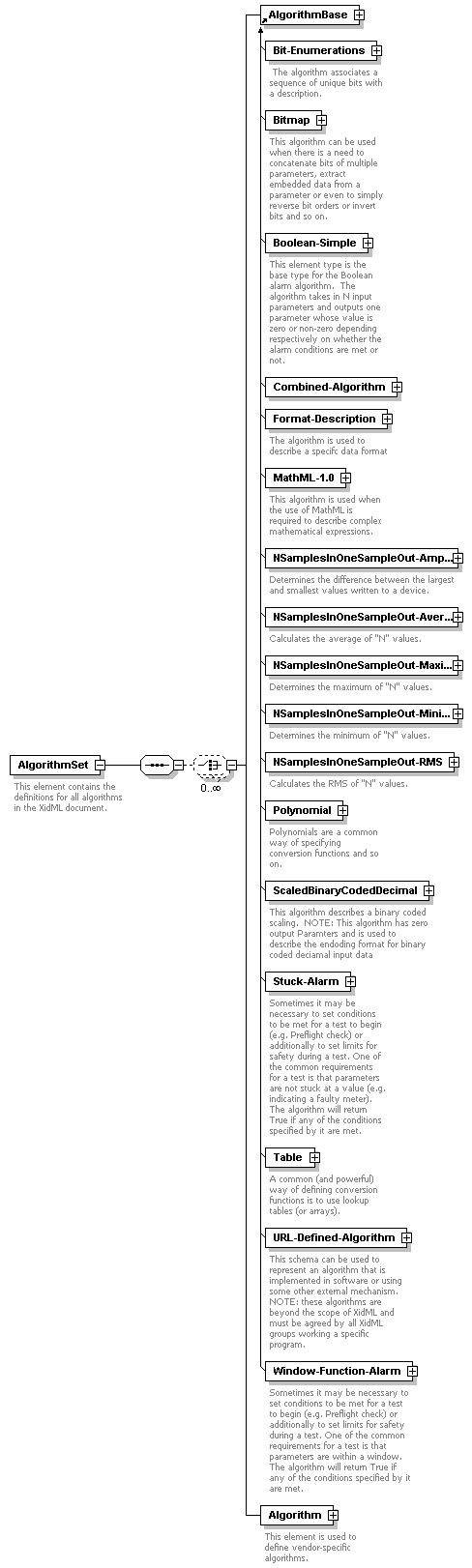

Algorithms/AlgorithmSet

diagram


properties

isRef	0
content	complex

children

AlgorithmBase Algorithm

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueAlgorithmName		*	@Name

annotation

documentation

This element contains the definitions for all algorithms in the XidML document.

element

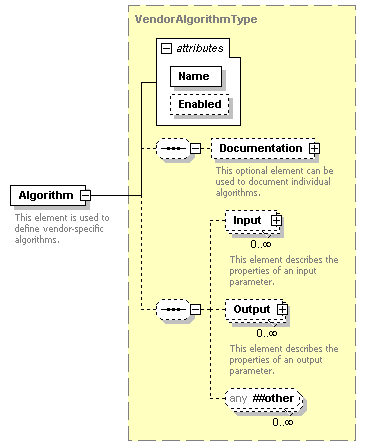

Algorithms/AlgorithmSet/Algorithm

diagram


type

VendorAlgorithmType

properties

isRef	0
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element is used to define vendor-specific algorithms.

element

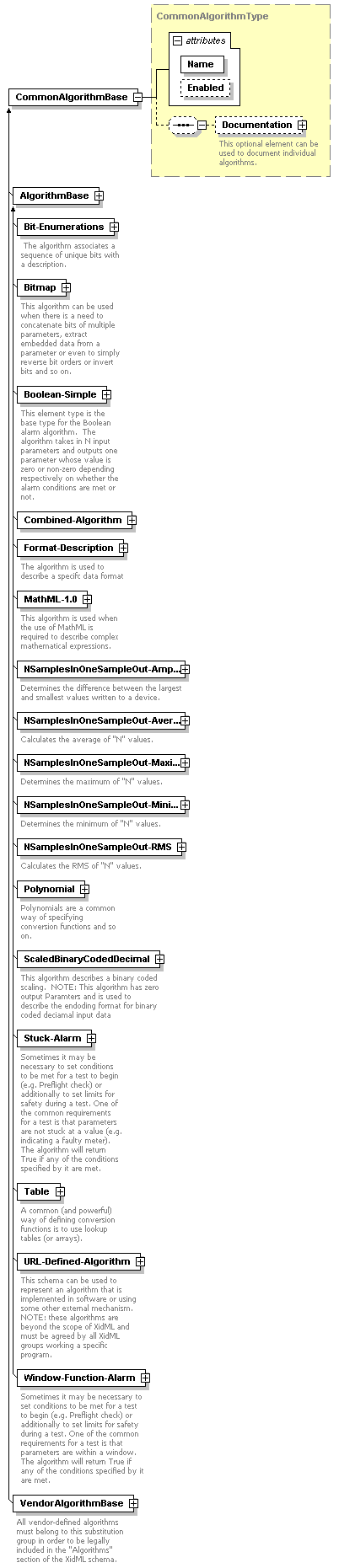

CommonAlgorithmBase

diagram


type

CommonAlgorithmType

properties

content	complex
abstract	true

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

element

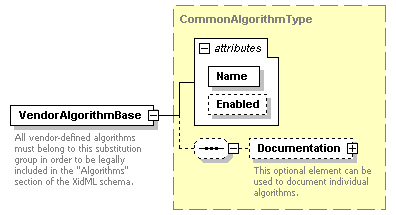

VendorAlgorithmBase

diagram


type

CommonAlgorithmType

properties

content	complex
substGrp	CommonAlgorithmBase

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

All vendor-defined algorithms must belong to this substitution group in order to be legally included in the “Algorithms” section of the XidML schema.

complexType

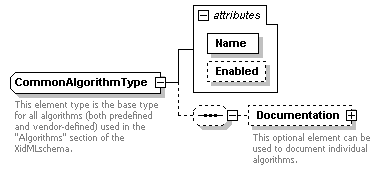

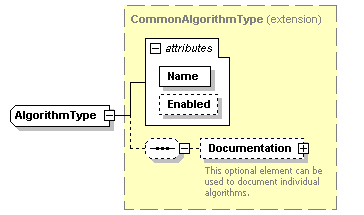

CommonAlgorithmType

diagram


children

used by

elements	AlgorithmBase CommonAlgorithmBase VendorAlgorithmBase

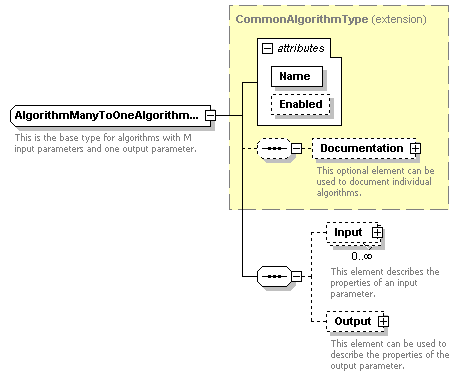

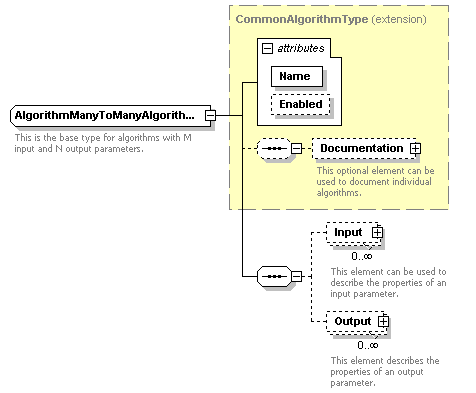

complexTypes	AlgorithmManyToManyAlgorithmType AlgorithmManyToOneAlgorithmType AlgorithmOneToManyAlgorithmType AlgorithmOneToOneAlgorithmType AlgorithmOneToZeroAlgorithmType AlgorithmType Combined-AlgorithmType VendorAlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for all algorithms (both predefined and vendor-defined) used in the “Algorithms” section of the XidMLschema.

attribute
CommonAlgorithmType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
CommonAlgorithmType/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element

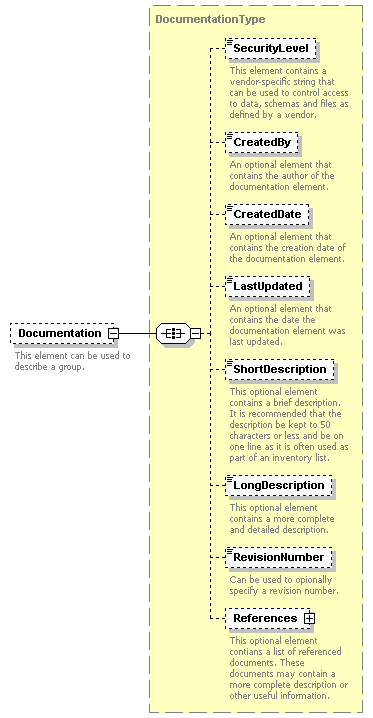

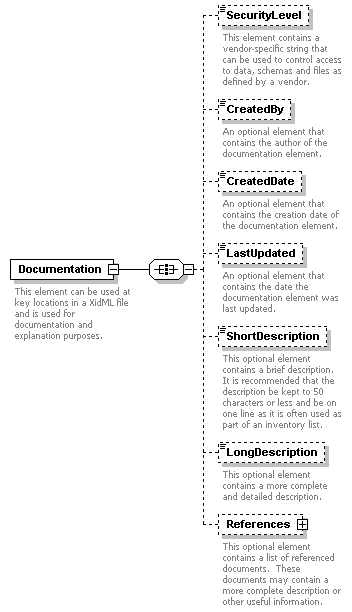

CommonAlgorithmType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual algorithms.

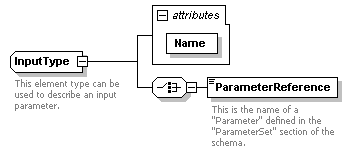

complexType

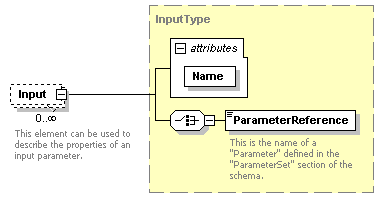

InputType

diagram


children

VendorAlgorithmType/Input AlgorithmOneToOneAlgorithmType/Input AlgorithmManyToOneAlgorithmType/Input AlgorithmOneToManyAlgorithmType/Input AlgorithmManyToManyAlgorithmType/Input AlgorithmOneToZeroAlgorithmType/Input Combined-AlgorithmType/Input

used by

elements

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element type can be used to describe an input parameter.

attribute
InputType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

element
InputType/ParameterReference

diagram

type

ParameterReferenceType

properties

isRef	0
content	complex

used by

elements

Channel/Parameters ChannelGroup/Parameters Parsers/Parser/Parameters Processes/Process/Parameters InstrumentType/Parameters

annotation

documentation

This is the name of a “Parameter” defined in the “ParameterSet” section of the schema.

complexType

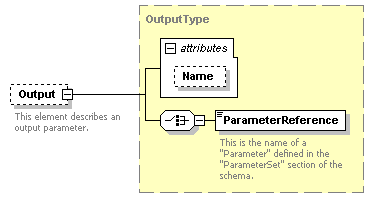

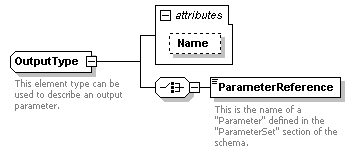

OutputType

diagram


children

VendorAlgorithmType/Output AlgorithmOneToOneAlgorithmType/Output AlgorithmManyToOneAlgorithmType/Output AlgorithmOneToManyAlgorithmType/Output AlgorithmManyToManyAlgorithmType/Output Combined-AlgorithmType/Output

used by

elements

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element type can be used to describe an output parameter.

attribute
OutputType/@Name

type

restriction of xs:string

properties

isRef	0
use	optional

facets

minLength

element
OutputType/ParameterReference

diagram

type

extension of ParameterReferenceType

properties

isRef	0
content	complex

used by

elements

Channel/Parameters ChannelGroup/Parameters Parsers/Parser/Parameters Processes/Process/Parameters InstrumentType/Parameters

annotation

documentation

This is the name of a “Parameter” defined in the “ParameterSet” section of the schema.

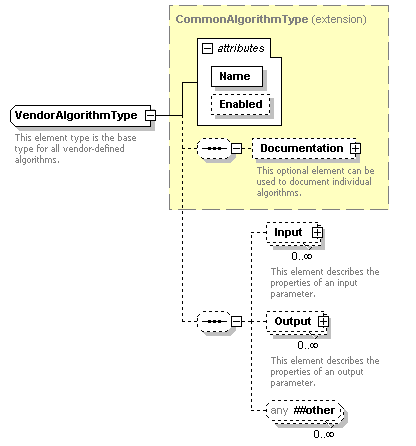

complexType
VendorAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

Algorithms/AlgorithmSet/Algorithm

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for all vendor-defined algorithms.

element

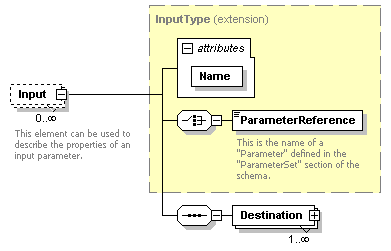

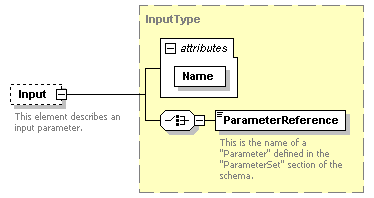

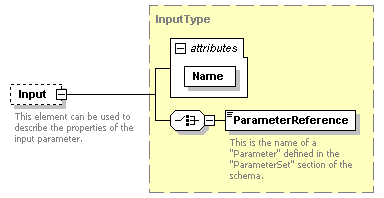

VendorAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element describes the properties of an input parameter.

element

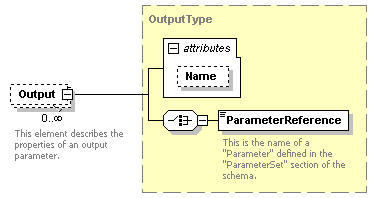

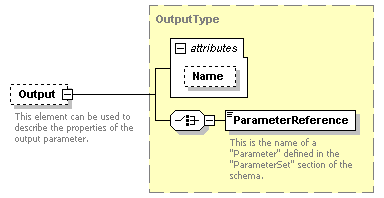

VendorAlgorithmType/Output

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element describes the properties of an output parameter.

element

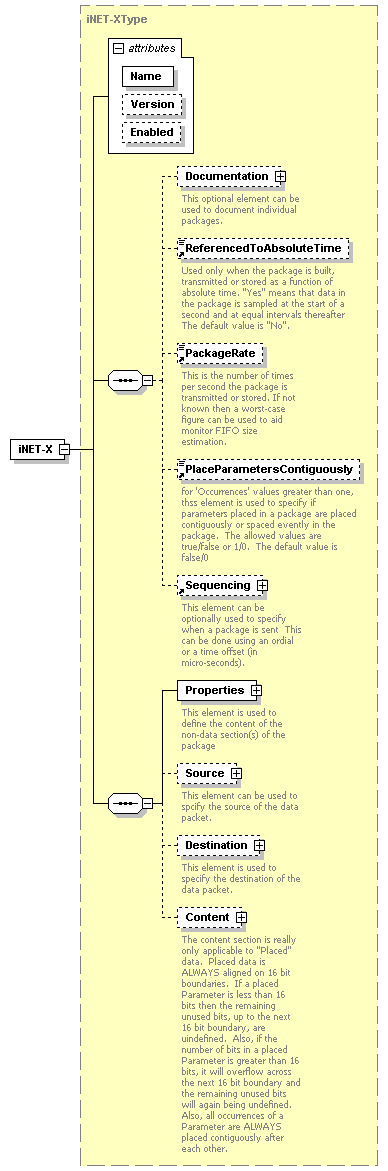

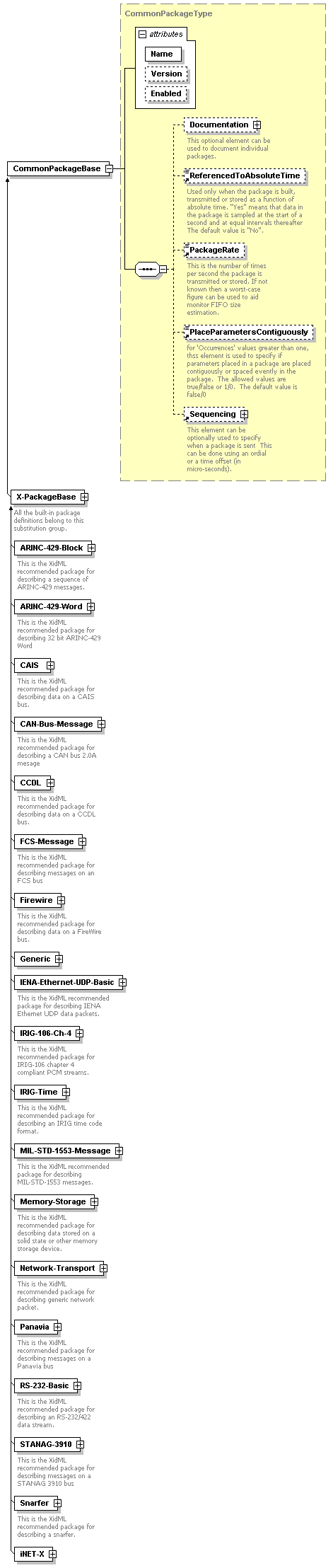

CommonPackageBase

diagram


type

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing

properties

content	complex
abstract	true

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

element
Complement

diagram

type

restriction of xs:string

properties

content	simple
default	No

used by

group

facets

enumeration	Yes
enumeration	No

annotation

documentation

This optional element can be used to complement the bits of the parameter. the allowed values are ‘Yes’ and ‘No’. The default value is ‘No’.

element
DefaultComplement

diagram

type

restriction of xs:string

properties

content	simple
default	No

used by

element

facets

enumeration	Yes
enumeration	No

annotation

documentation

This optional element can be used to complement the bits of the parameter. the allowed values are ‘Yes’ and ‘No’. The default value is ‘No’.

element
DefaultFillValue

diagram

type

xs:hexBinary

properties

content

simple

annotation

documentation

This element can be used to specify the default fill value that is used at this location if no parameter is placed

element
DefaultJustification

diagram

type

restriction of xs:string

properties

content	simple
default	Left

used by

element

facets

enumeration	Left
enumeration	Right

annotation

documentation

This element is used to specify the default for which part of a data word parameter data is transmitted (i.e. the left or right part).

element
DefaultMask

diagram

type

xs:hexBinary

properties

content

simple

used by

element

annotation

documentation

This element is used to determine default bits that are sent or used in a parameter.

element
DefaultMostSignificantBit

diagram

type

restriction of xs:string

properties

content	simple
default	First

used by

element	GenericPackageType/Properties

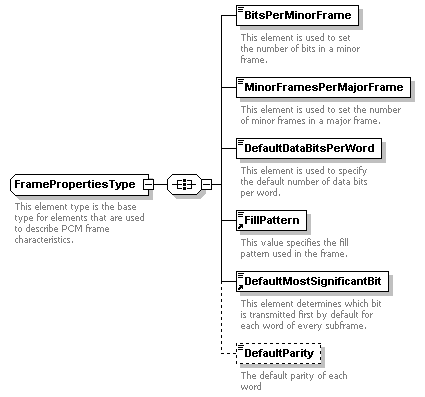

complexType	FramePropertiesType

facets

enumeration	First
enumeration	Last

annotation

documentation

This element determines which bit is transmitted first by default for each word of every subframe.

element
DefaultNumberOfDataBits

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

element

facets

minInclusive

annotation

documentation

The default number of bits transmitted for a parameter. NOTE: If the “Offset_Words” element is being used to specify the location then the data bits start at the word boundary.

element
DefaultParity

diagram

type

restriction of xs:string

properties

content	simple
default	None

used by

element

facets

enumeration	Odd
enumeration	Even
enumeration	None
enumeration	CarryForward

annotation

documentation

The default parity of a word .

element
DefaultWordSize

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

element

facets

minInclusive

annotation

documentation

The default number of bits in a word

element
FillValue

diagram

type

xs:hexBinary

properties

content

simple

used by

group

AlgorithmReference AlgorithmInputParameterMap AlgorithmOutputParameterMap

annotation

documentation

This optional element can be used to specify a fill value that is used at this location if no parameter is placed

element

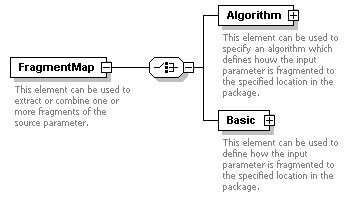

FragmentMap

diagram


properties

content

complex

children

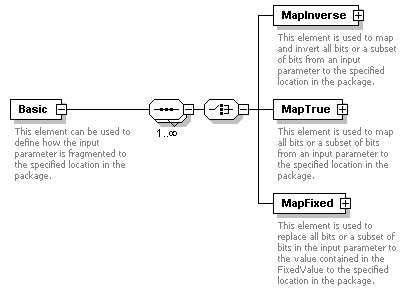

Algorithm Basic

annotation

documentation

This element can be used to extract or combine one or more fragments of the source parameter.

element

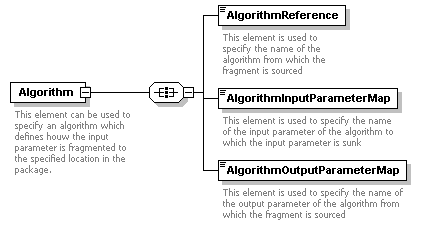

FragmentMap/Algorithm

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element can be used to specify an algorithm which defines houw the input parameter is fragmented to the specified location in the package.

element
FragmentMap/Algorithm/AlgorithmReference

diagram

type

AlgorithmReferenceType

properties

isRef	0
content	complex

used by

complexTypes

MapInverse MapTrue MapFixed

annotation

documentation

This element is used to specify the name of the algorithm from which the fragment is sourced

element
FragmentMap/Algorithm/AlgorithmInputParameterMap

diagram

properties

isRef

annotation

documentation

This element is used to specify the name of the input parameter of the algorithm to which the input parameter is sunk

element
FragmentMap/Algorithm/AlgorithmOutputParameterMap

diagram

properties

isRef

annotation

documentation

This element is used to specify the name of the output parameter of the algorithm from which the fragment is sourced

element
FragmentMap/Basic

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element can be used to define how the input parameter is fragmented to the specified location in the package.

element

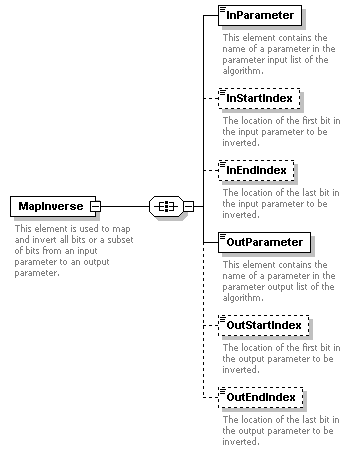

FragmentMap/Basic/MapInverse

diagram


properties

isRef	0
content	complex

children

InStartIndex InEndIndex OutStartIndex OutEndIndex

annotation

documentation

This element is used to map and invert all bits or a subset of bits from an input parameter to the specified location in the package.

element
FragmentMap/Basic/MapInverse/InStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the input parameter to be inverted.

element
FragmentMap/Basic/MapInverse/InEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the input parameter to be inverted.

element
FragmentMap/Basic/MapInverse/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be inverted.

element
FragmentMap/Basic/MapInverse/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be inverted.

element

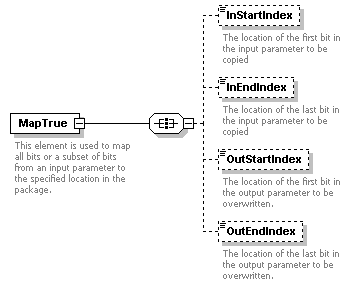

FragmentMap/Basic/MapTrue

diagram


properties

isRef	0
content	complex

children

InStartIndex InEndIndex OutStartIndex OutEndIndex

annotation

documentation

This element is used to map all bits or a subset of bits from an input parameter to the specified location in the package.

element
FragmentMap/Basic/MapTrue/InStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the input parameter to be copied

element
FragmentMap/Basic/MapTrue/InEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the input parameter to be copied

element
FragmentMap/Basic/MapTrue/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be overwritten.

element
FragmentMap/Basic/MapTrue/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be overwritten.

element
FragmentMap/Basic/MapFixed

diagram


properties

isRef	0
content	complex

children

OutStartIndex OutEndIndex FixedValue

annotation

documentation

This element is used to replace all bits or a subset of bits in the input parameter to the value contained in the FixedValue to the specified location in the package.

element
FragmentMap/Basic/MapFixed/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be set to the value contained in the FixedValue element.

element
FragmentMap/Basic/MapFixed/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be set to the value contained in the FixedValue element.

element
FragmentMap/Basic/MapFixed/FixedValue

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[10]+

annotation

documentation

The value of this element is used to replace the bits in the range OutStartIndex to OutEndIndex with the binary value contined in this element. NOTE: the number of bits contained in FixedValue must fit into the range of bits specified.

element
Justification

diagram

type

restriction of xs:string

properties

content	simple
default	Left

used by

group

facets

enumeration	Left
enumeration	Right

annotation

documentation

This element is used to specify in which part of a data word parameter data is transmitted (i.e. the left or right part).

element
Mask

diagram

type

xs:hexBinary

properties

content

simple

used by

group

annotation

documentation

This element is used to determine which bits are sent or used in a parameter.

element
MostSignificantBit

diagram

type

restriction of xs:string

properties

content	simple
default	First

used by

group

facets

enumeration	First
enumeration	Last

annotation

documentation

This element determines in which order the data bits are transmitted for this parameter.

element
NumberOfDataBits

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

group

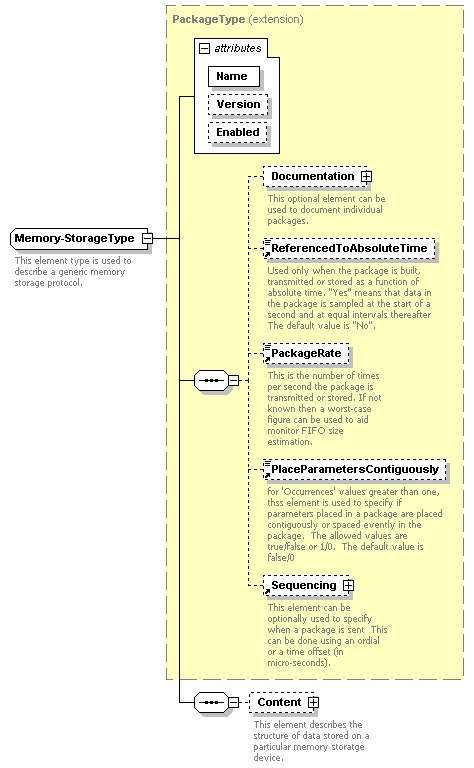

Memory-StorageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location

facets

minInclusive	1
maxInclusive	512

annotation

documentation

The number of bits transmitted for this parameter. NOTE: If the “Offset_Words” element is being used to specify the location then the data bits start at the word boundary.

element
Occurrences

diagram

type

xs:unsignedInt

properties

content	simple
default	1

used by

elements

annotation

documentation

The number of times that a parameter occurs in a package. If this value is greater than one then it is presumed that each occurence of a parameter is placed at equally spaced intervals in the package.

element
Offset_Address

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

elements

facets

minInclusive

annotation

documentation

The location of the parameter in a package using an address.

element

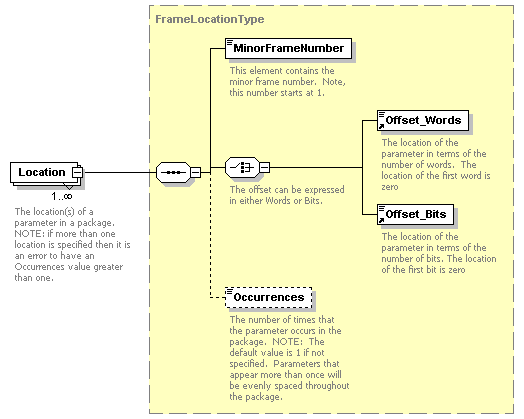

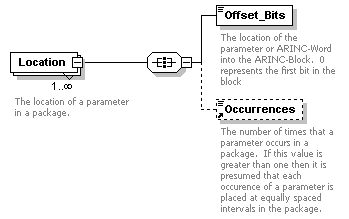

Offset_Bits

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

elements	CAISType/Content/Mapping/Location CAN-Bus-MessageType/Content/Mapping/Location CCDLType/Content/Mapping/Location FCS-MessageType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Network-TransportType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location

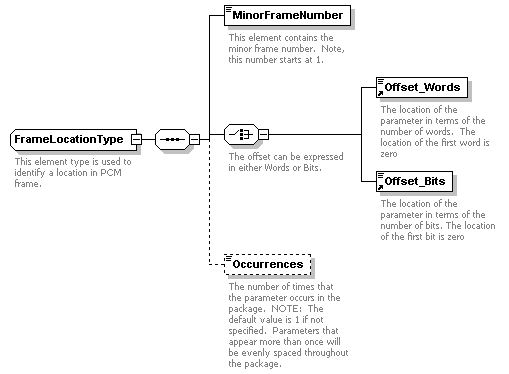

complexType	FrameLocationType

facets

minInclusive

annotation

documentation

The location of the parameter in terms of the number of bits. The location of the first bit is zero

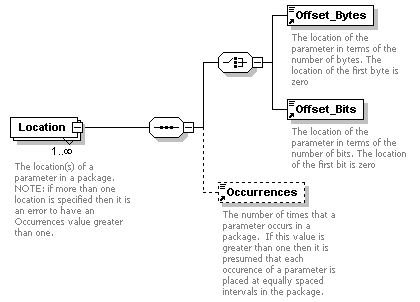

element
Offset_Bytes

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

elements

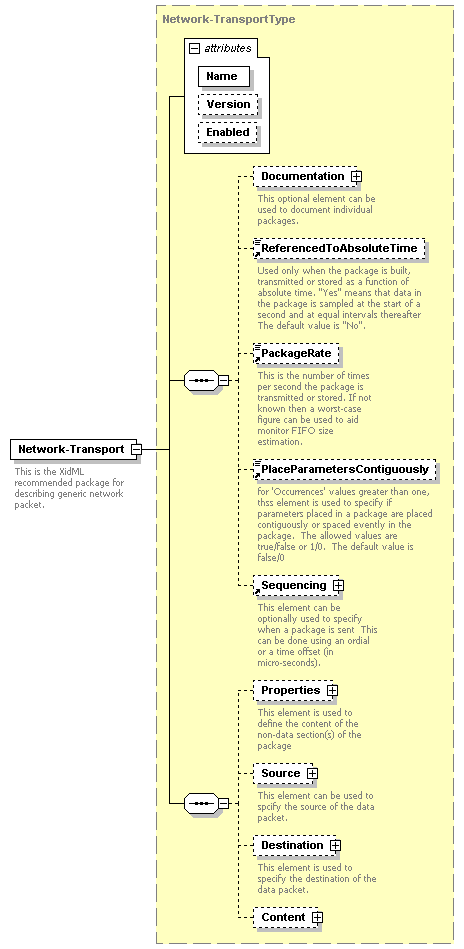

CAN-Bus-MessageType/Content/Mapping/Location Network-TransportType/Content/Mapping/Location iNET-XType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location

facets

minInclusive

annotation

documentation

The location of the parameter in terms of the number of bytes. The location of the first byte is zero

element
Offset_uS

diagram

type

restriction of xs:double

properties

content

simple

used by

elements

CAISType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location

facets

minInclusive

annotation

documentation

The offset from the start of the start of the acquistion cycle in micro-seconds.

element

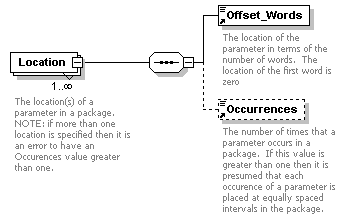

Offset_Words

diagram

type

restriction of MinorFrameOffsetType

properties

content

complex

used by

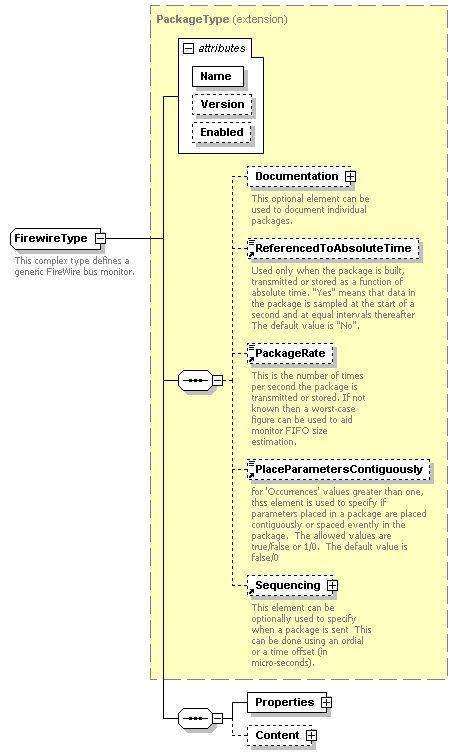

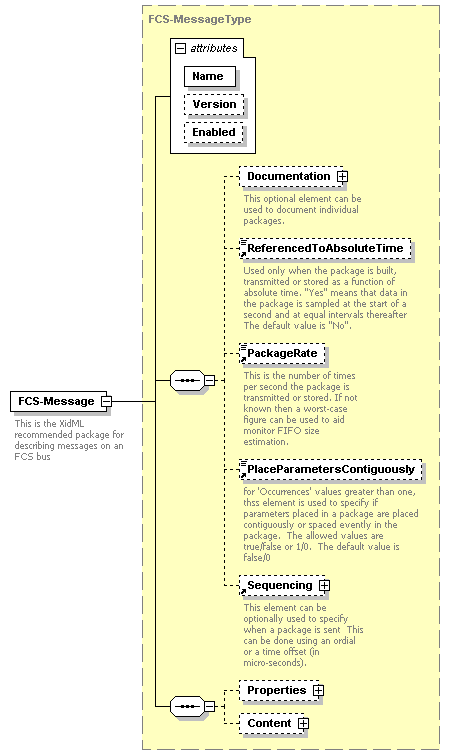

elements	FCS-MessageType/Content/Mapping/Location FirewireType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Panavia-MessageType/Content/Mapping/Location RS-232-BasicType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location
complexType	FrameLocationType

facets

minInclusive

annotation

documentation

The location of the parameter in terms of the number of words. The location of the first word is zero

element
PackageRate

diagram

type

xs:double

properties

content

simple

used by

complexType

PackageGroupSet PackageSet

annotation

documentation

This is the number of times per second the package is transmitted or stored. If not known then a worst-case figure can be used to aid monitor FIFO size estimation.

element
Packages

diagram


properties

content

complex

children

used by

element

annotation

documentation

This element contains a list of all the packages used by acquisition system(s) described by the XidML file.

element
Packages/PackageGroupSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniquePackageGroupName		*	@Name

annotation

documentation

This element contains a list of all the package groups defined in the XidML document.

element
Packages/PackageGroupSet/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element is used to organize packages into logical groups.

element

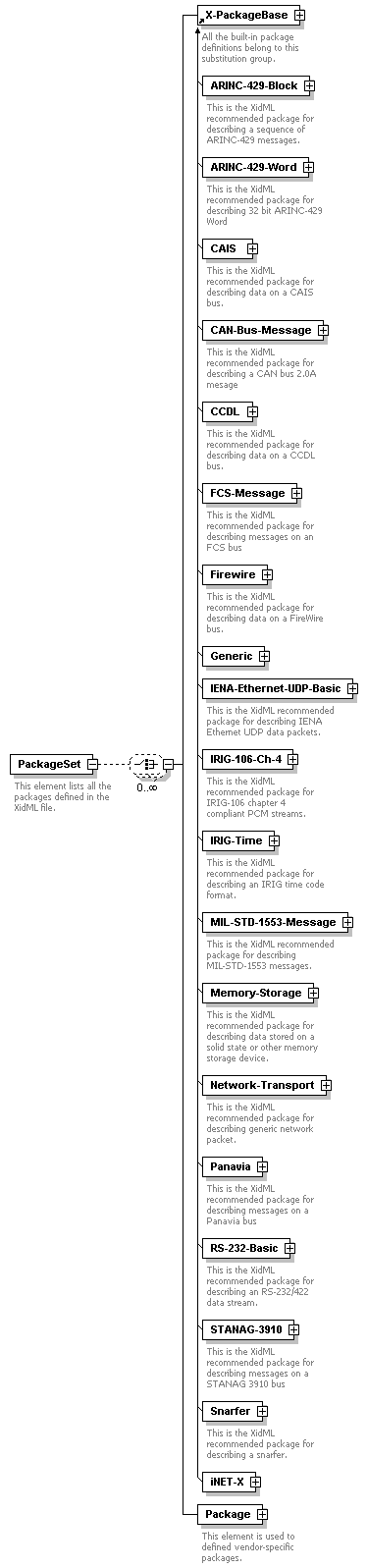

Packages/PackageSet

diagram


properties

isRef	0
content	complex

children

X-PackageBase Package

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniquePackageName		*	@Name

annotation

documentation

This element lists all the packages defined in the XidML file.

element

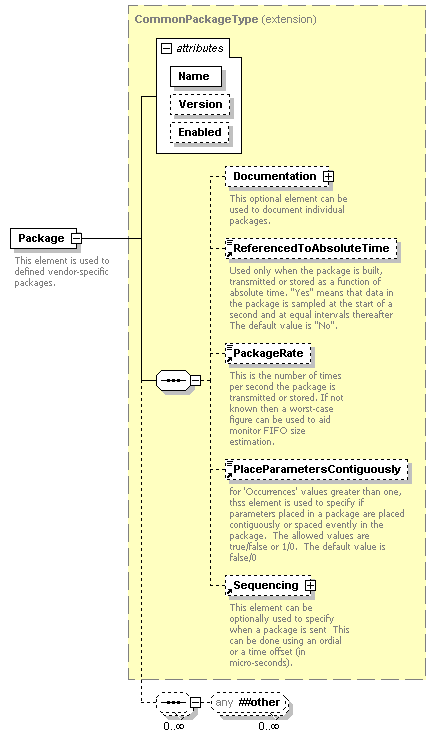

Packages/PackageSet/Package

diagram


type

extension of CommonPackageType

properties

isRef	0
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This element is used to defined vendor-specific packages.

element
Parity

diagram

type

restriction of xs:string

properties

content	simple
default	None

used by

group

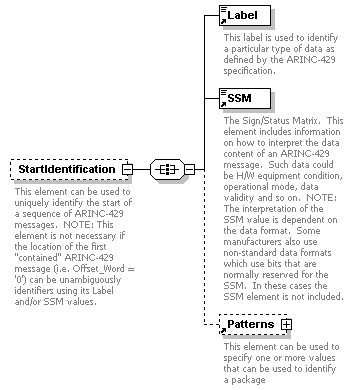

ARINC-429-BlockType/Properties/StartIdentification RS-232-BasicType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification RS-232-BasicType/Properties/StopIdentification

facets

enumeration	Odd
enumeration	Even
enumeration	None
enumeration	CarryForward

annotation

documentation

The parity of the word .

element

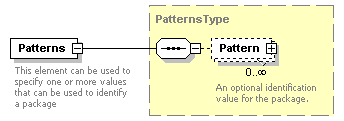

Patterns

diagram


type

PatternsType

properties

content

complex

children

Pattern

used by

elements

annotation

documentation

This element can be used to specify one or more values that can be used to identify a package

element
PlaceParametersContiguously

diagram

type

xs:boolean

properties

content

simple

used by

complexType

annotation

documentation

for ‘Occurrences’ values greater than one, thss element is used to specify if parameters placed in a package are placed contiguously or spaced evently in the package. The allowed values are true/false or 1/0. The default value is false/0

element
ReferencedToAbsoluteTime

diagram

type

restriction of xs:string

properties

content	simple
default	No

used by

complexType

SequenceNumber Offset_uS Occurrences

facets

enumeration	Yes
enumeration	No

annotation

documentation

Used only when the package is built, transmitted or stored as a function of absolute time. “Yes” means that data in the package is sampled at the start of a second and at equal intervals thereafter The default value is “No”.

element

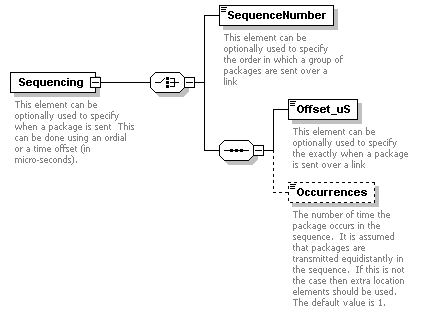

Sequencing

diagram


properties

content

complex

children

used by

complexType

CAISType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location

annotation

documentation

This element can be optionally used to specify when a package is sent This can be done using an ordial or a time offset (in micro-seconds).

element
Sequencing/SequenceNumber

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element can be optionally used to specify the order in which a group of packages are sent over a link

element
Sequencing/Offset_uS

diagram

type

xs:double

properties

isRef	0
content	simple

used by

elements

annotation

documentation

This element can be optionally used to specify the exactly when a package is sent over a link

element
Sequencing/Occurrences

diagram

properties

isRef	0
minOcc	0
maxOcc	1

used by

elements

annotation

documentation

The number of time the package occurs in the sequence. It is assumed that packages are transmitted equidistantly in the sequence. If this is not the case then extra location elements should be used. The default value is 1.

element
WordNumber

diagram

type

restriction of MinorFrameOffsetType

properties

content

complex

used by

element

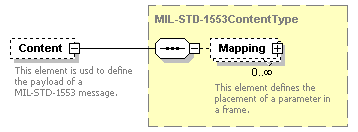

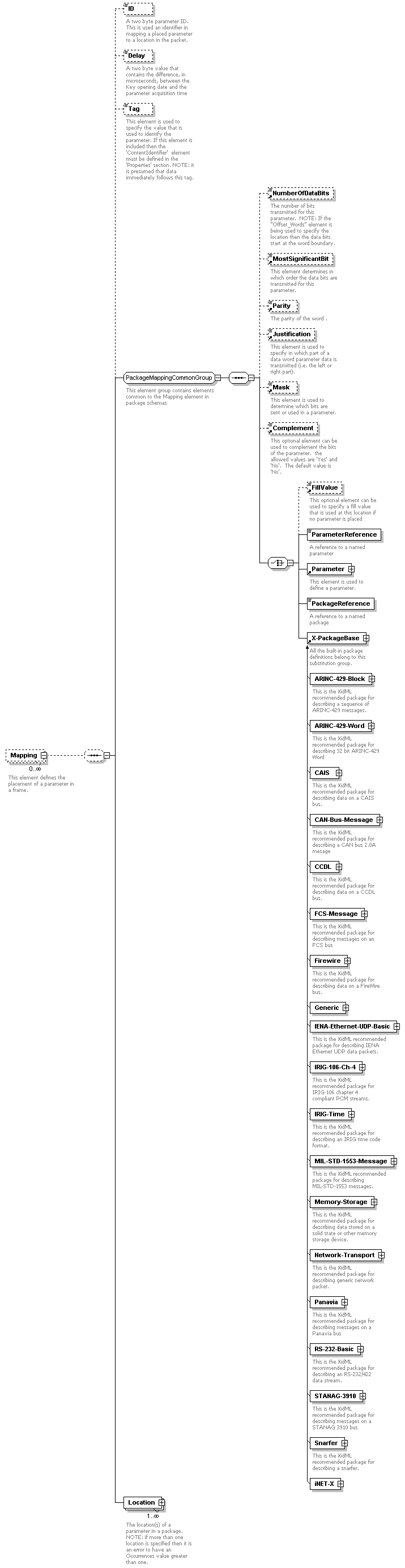

MIL-STD-1553ContentType/Mapping/Location

facets

minInclusive

annotation

documentation

The location of the parameter in terms of the number of words. The location of the first word is one

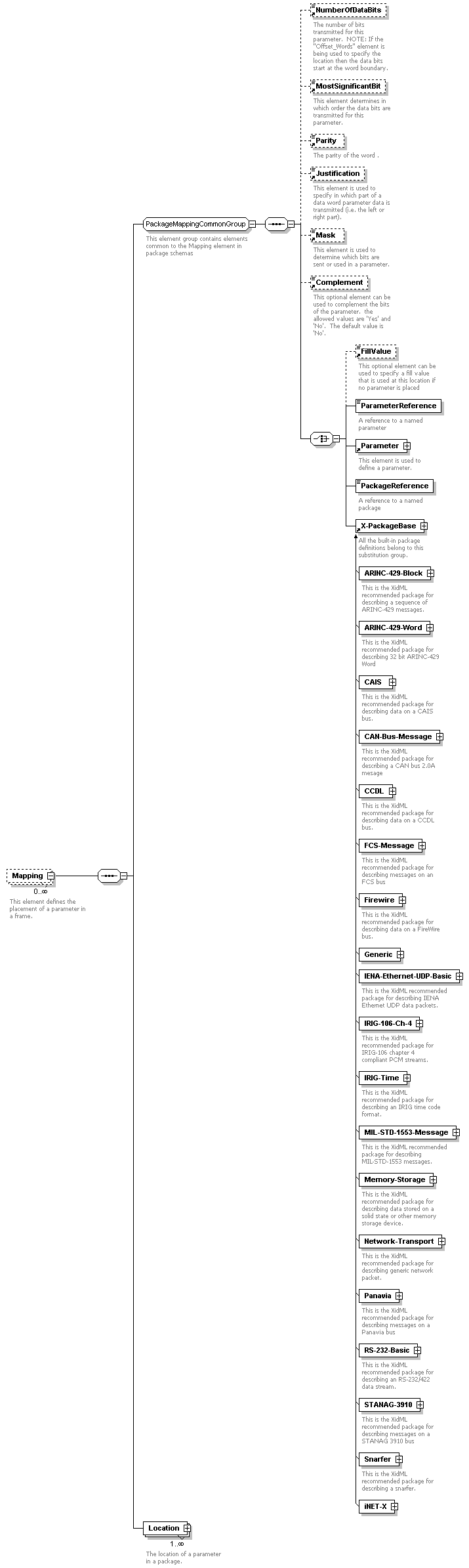

group

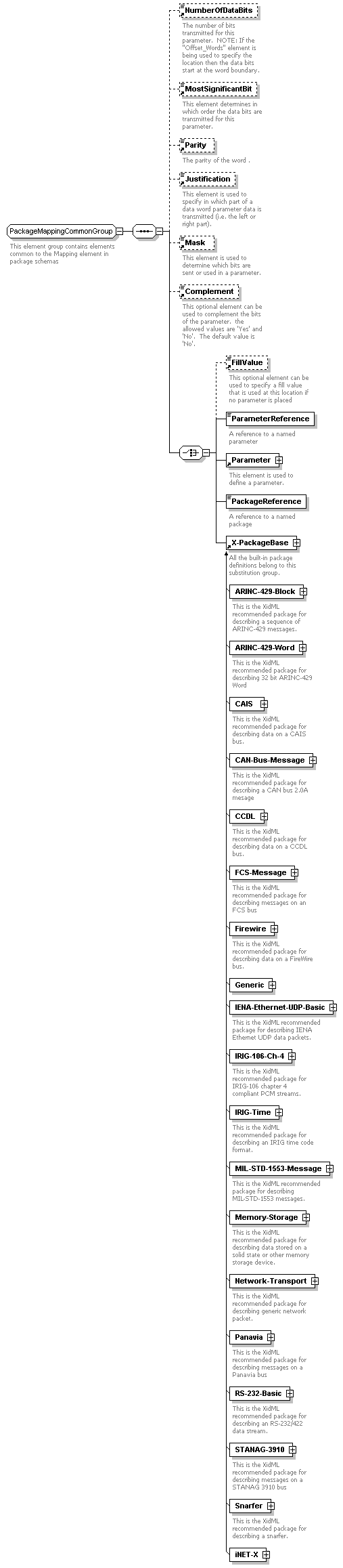

PackageMappingCommonGroup

diagram


children

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase

used by

elements

annotation

documentation

This element group contains elements common to the Mapping element in package schemas

element
PackageMappingCommonGroup/ParameterReference

diagram

type

ParameterReferenceType

properties

isRef	0
content	complex

used by

elements

Channel/Parameters ChannelGroup/Parameters Parsers/Parser/Parameters Processes/Process/Parameters InstrumentType/Parameters

annotation

documentation

A reference to a named parameter

element
PackageMappingCommonGroup/PackageReference

diagram

type

PackageReferenceType

properties

isRef	0
content	complex

annotation

documentation

A reference to a named package

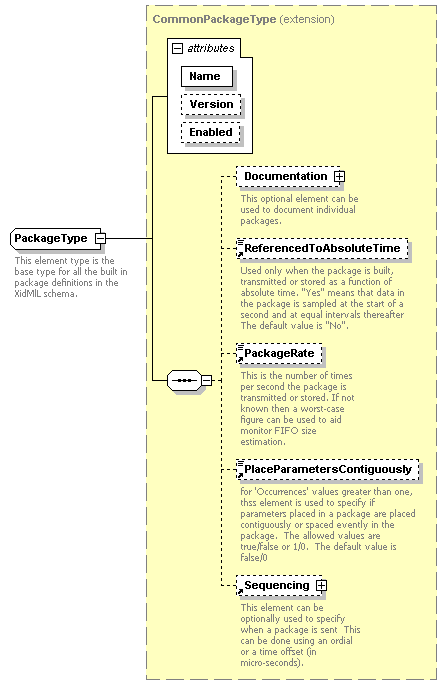

complexType

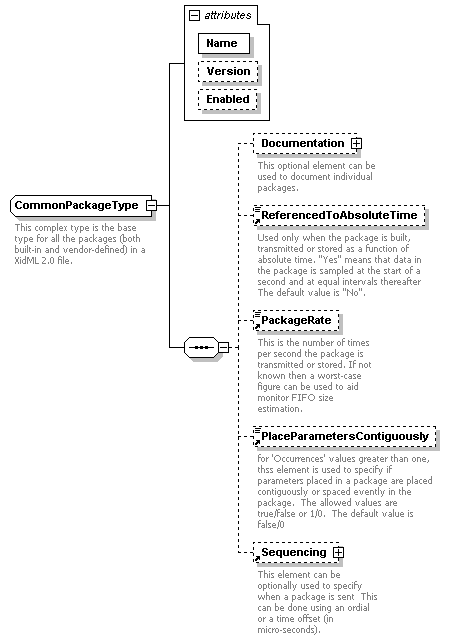

CommonPackageType

diagram


children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing

used by

elements	CommonPackageBase Packages/PackageSet/Package
complexType	PackageType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This complex type is the base type for all the packages (both built-in and vendor-defined) in a XidML 2.0 file.

attribute
CommonPackageType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
CommonPackageType/@Version

type

xs:decimal

properties

isRef	0
use	optional

attribute
CommonPackageType/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element
CommonPackageType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual packages.

complexType
PatternsType

diagram


children

Pattern

used by

element

Patterns

element

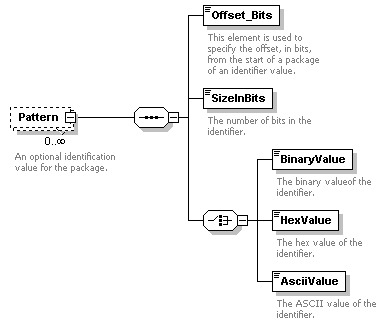

PatternsType/Pattern

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Offset_Bits SizeInBits BinaryValue HexValue AsciiValue

annotation

documentation

An optional identification value for the package.

element
PatternsType/Pattern/Offset_Bits

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

used by

elements	CAISType/Content/Mapping/Location CAN-Bus-MessageType/Content/Mapping/Location CCDLType/Content/Mapping/Location FCS-MessageType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Network-TransportType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location
complexType	FrameLocationType

annotation

documentation

This element is used to specify the offset, in bits, from the start of a package of an identifier value.

element
PatternsType/Pattern/SizeInBits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

used by

complexTypes

annotation

documentation

The number of bits in the identifier.

element
PatternsType/Pattern/BinaryValue

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The binary valueof the identifier.

element
PatternsType/Pattern/HexValue

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

The hex value of the identifier.

element
PatternsType/Pattern/AsciiValue

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The ASCII value of the identifier.

element
AlgorithmReference

diagram

type

extension of AlgorithmReferenceType

properties

content

complex

used by

complexTypes

annotation

documentation

A reference to a named algorithm. NOTE: The referenced algorithm can be used to specify linearization, bit enumerations, BCD format and so on.

element
BaseUnit

diagram

type

BaseUnitType

properties

content	simple
default	Unitless

used by

element	Parameters/ParameterUnitSet/ParameterUnit
complexTypes	PackageSubParameterType ParameterType

facets

enumeration	Meter
enumeration	Kilogram
enumeration	Second
enumeration	Ampere
enumeration	Kelvin
enumeration	Mole
enumeration	Candela
enumeration	SquareMeter
enumeration	CubicMeter
enumeration	MetersPerSecond
enumeration	MetersPerSecondSquared
enumeration	ReciprocalMeter
enumeration	KilogramPerCubicMeter
enumeration	CubicMeterPerKilogram
enumeration	AmperePerSquareMeter
enumeration	AmperePerMeter
enumeration	MolePerCubicMeter
enumeration	CandelaPerSquareMeter
enumeration	Radian
enumeration	Steradian
enumeration	Hertz
enumeration	Newton
enumeration	Pascal
enumeration	Joule
enumeration	Watt
enumeration	Coulomb
enumeration	Volt
enumeration	Farad
enumeration	Ohm
enumeration	Siemens
enumeration	Weber
enumeration	Tesla
enumeration	Henry
enumeration	Lumen
enumeration	Lux
enumeration	Becquerel
enumeration	Celsius
enumeration	Gray
enumeration	Sievert
enumeration	Katal
enumeration	PascalSecond
enumeration	NewtonMeter
enumeration	NewtonPerMeter
enumeration	RadianPerSecond
enumeration	RadianPerSecondSquared
enumeration	WattPerSquareMeter
enumeration	JoulePerKelvin
enumeration	JoulePerKilogramKelvin
enumeration	JoulePerKilogram
enumeration	WattPerMeterKelvin
enumeration	JoulePerCubicMeter
enumeration	VoltPerMeter
enumeration	CoulombPerCubicMeter
enumeration	CoulombPerSquareMeter
enumeration	FaradPerMeter
enumeration	HenryPerMeter
enumeration	JoulePerMole
enumeration	JoulePerMoleKelvin
enumeration	CoulombPerKilogram
enumeration	GrayPerSecond
enumeration	WattPerSteradian
enumeration	WattPerSquareMeterSteradian
enumeration	KatalPerCubicMeter
enumeration	Unitless
enumeration	Count
enumeration	Ratio
enumeration	Bytes
enumeration	Boolean
enumeration	BitVector
enumeration	BitStream
enumeration	Text

annotation

documentation

This is the base unit for the parameter. All scaling is relative to this value. The default value is “Unitless”.

element

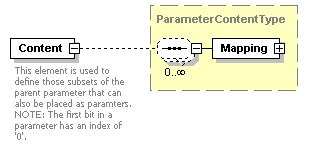

Content

diagram


type

ParameterContentType

properties

content

complex

children

used by

complexTypes

annotation

documentation

This element is used to define those subsets of the parent parameter that can also be placed as paramters. NOTE: The first bit in a parameter has an index of ‘0’.

element
DataFormat

diagram

type

DataFormatType

properties

content	simple
default	OffsetBinary

used by

complexTypes

facets

enumeration	OffsetBinary
enumeration	SignedMagnitude
enumeration	TwosComplement
enumeration	BinaryCodedDecimal
enumeration	BitVector
enumeration	BitStream
enumeration	IEEE-754-Float-Single
enumeration	IEEE-754-Float-Double
enumeration	ASCII-7
enumeration	ASCII-8
enumeration	Unicode
enumeration	UserFormat

annotation

documentation

The data format of the parameter.

element
Direction

diagram

type

restriction of xs:string

properties

content

simple

used by

complexTypes

facets

enumeration	Plus
enumeration	Minus
enumeration	Up
enumeration	Down
enumeration	North
enumeration	South
enumeration	East
enumeration	West
enumeration	Right
enumeration	Left
enumeration	To
enumeration	From
enumeration	Above
enumeration	Below

annotation

documentation

This element is used to indicate a direction of the positive value. The allowed values are Plus/Minus Down/Up, North/South, East/West, Right/Left, To/From and Above/Below.

element

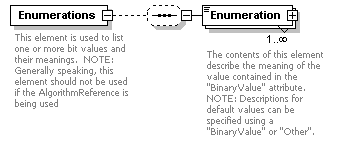

Enumerations

diagram


properties

content

complex

children

Enumeration

used by

complexTypes

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueBinaryValue		./Enumeration	@BinaryValue

annotation

documentation

This element is used to list one or more bit values and their meanings. NOTE: Generally speaking, this element should not be used if the AlgorithmReference is being used

element
Enumerations/Enumeration

diagram


type

extension of xs:string

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

attributes

Name

Type

Use

Default

Fixed

annotation

BinaryValue

derived by: xs:string

required

documentation

A binary value

annotation

documentation

The contents of this element describe the meaning of the value contained in the “BinaryValue” attribute. NOTE: Descriptions for default values can be specified using a “BinaryValue” or “Other”.

attribute
Enumerations/Enumeration/@BinaryValue

type

restriction of xs:string

properties

isRef	0
use	required

facets

pattern

[10]+|Other

annotation

documentation

A binary value

element
LongLabel

diagram

type

xs:string

properties

content

simple

used by

complexTypes

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

A long name that is used to identify a parameter. This value need not be unique.

element
Offset

diagram

type

xs:float

properties

content	simple
default	0

used by

element	Parameters/ParameterUnitSet/ParameterUnit
complexType	PackageSubParameterType

annotation

documentation

This element is used to describe the applied offset with respect to the base unit. for example, to convert the DegreesCentigrade base unit to Fahrenheit then the offset would be 32 and the scaling 1.80.

element

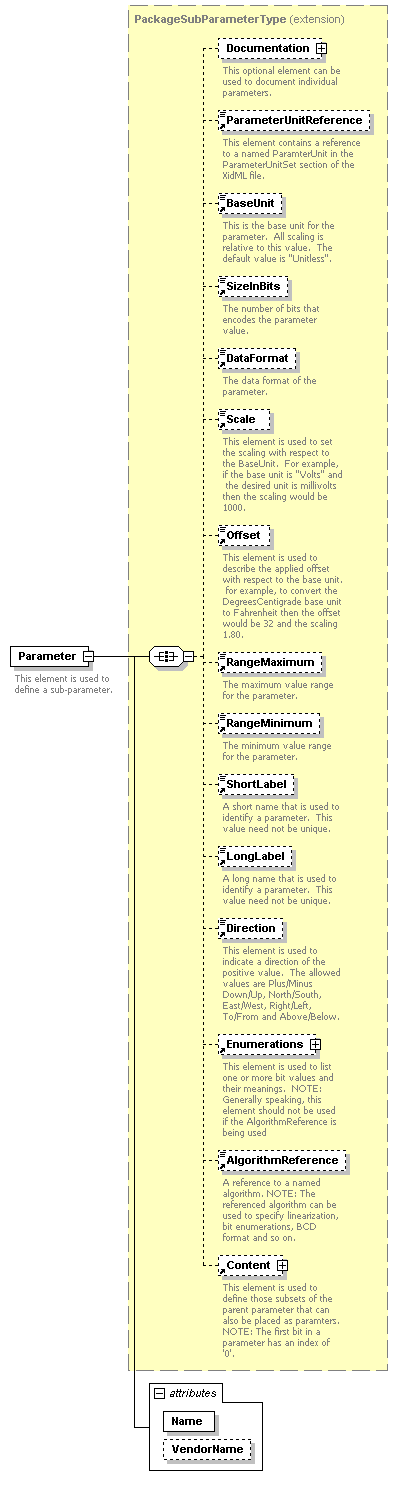

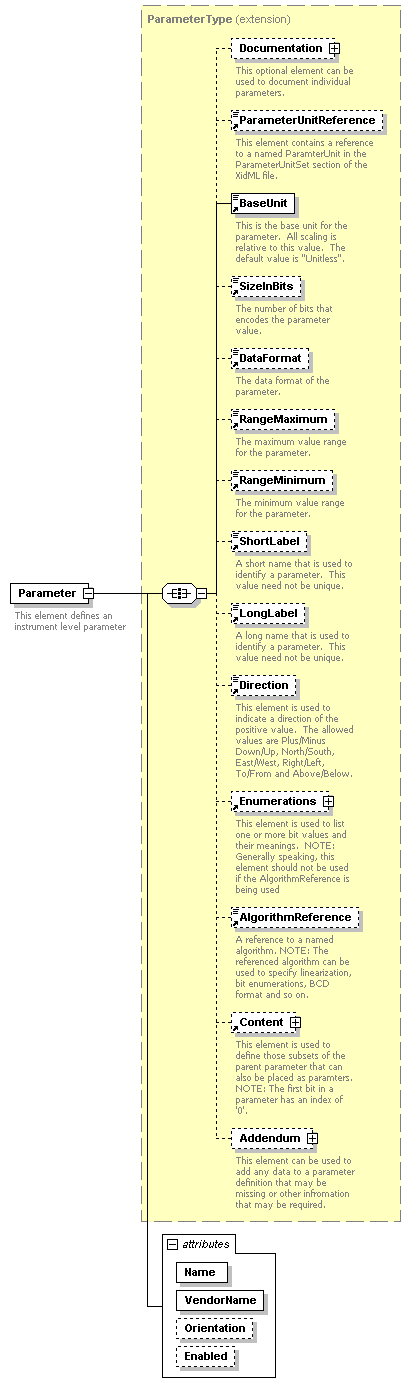

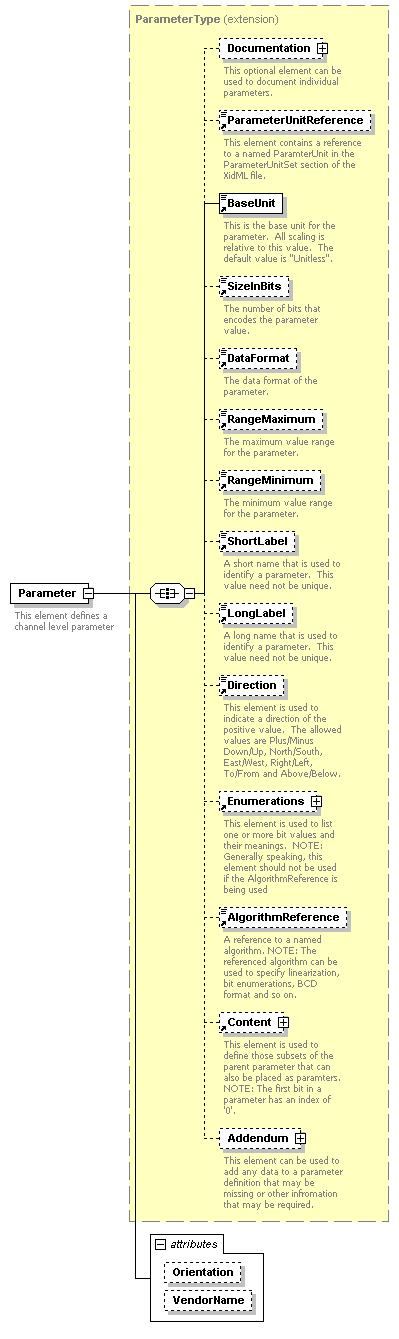

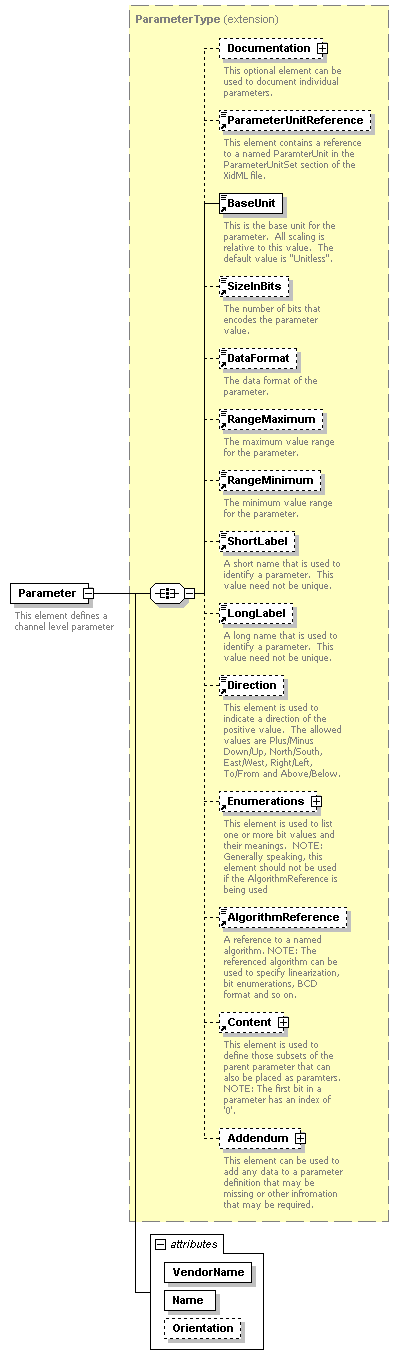

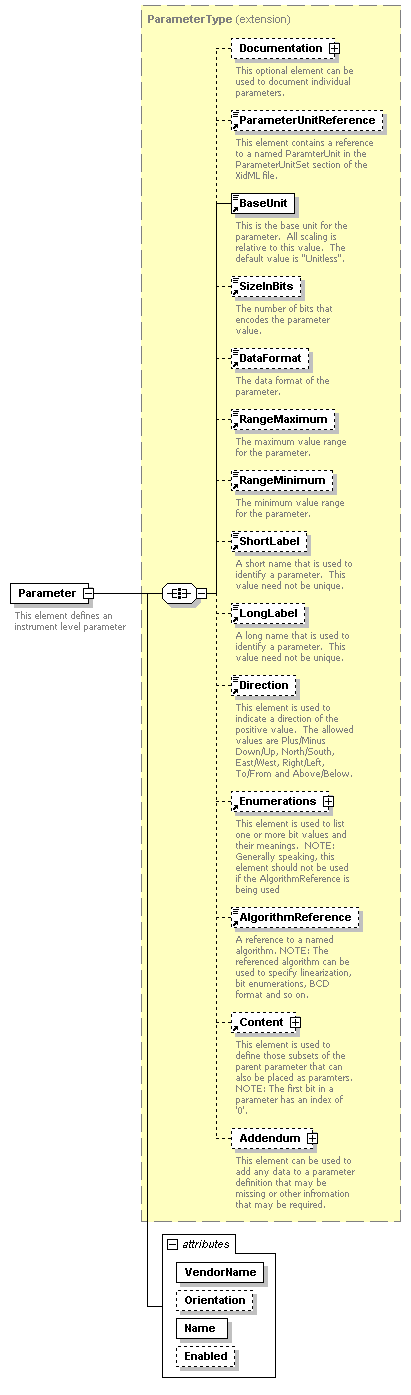

Parameter

diagram


type

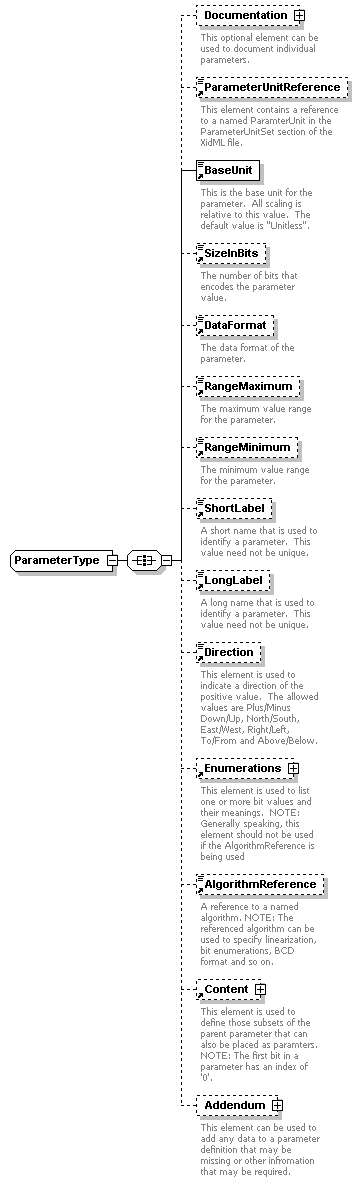

extension of ParameterType

properties

content

complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
VendorName	derived by: xs:string	optional
Orientation	derived by: xs:string	optional	Read

annotation

documentation

This element is used to define a parameter.

attribute
Parameter/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
Parameter/@VendorName

type

restriction of xs:string

properties

isRef	0
use	optional

facets

minLength

attribute
Parameter/@Orientation

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

element

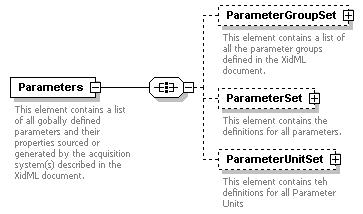

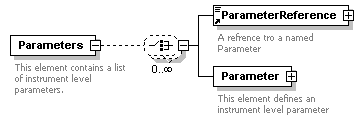

Parameters

diagram


properties

content

complex

children

ParameterGroupSet ParameterSet ParameterUnitSet

used by

element

annotation

documentation

This element contains a list of all gobally defined parameters and their properties sourced or generated by the acquisition system(s) described in the XidML document.

element
Parameters/ParameterGroupSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueParameterGroupName		Group	@Name

annotation

documentation

This element contains a list of all the parameter groups defined in the XidML document.

element
Parameters/ParameterGroupSet/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element is used to describe the grouping of parameters.

element
Parameters/ParameterSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Parameter

annotation

documentation

This element contains the definitions for all parameters.

element
Parameters/ParameterUnitSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

ParameterUnit

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueParameterUnitName		ParameterUnit	@Name

annotation

documentation

This element contains teh definitions for all Parameter Units

element
Parameters/ParameterUnitSet/ParameterUnit

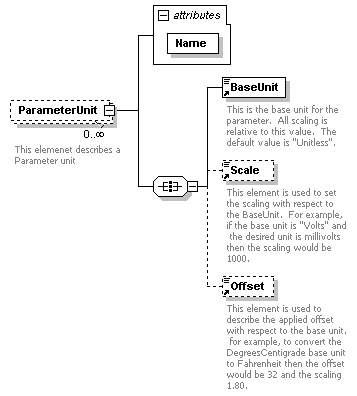

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

BaseUnit Scale Offset

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This elemenet describes a Parameter unit

attribute
Parameters/ParameterUnitSet/ParameterUnit/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

element
ParameterUnitReference

diagram

type

xs:string

properties

content

simple

used by

complexTypes

annotation

documentation

This element contains a reference to a named ParamterUnit in the ParameterUnitSet section of the XidML file.

element
RangeMaximum

diagram

type

xs:float

properties

content

simple

used by

complexTypes

annotation

documentation

The maximum value range for the parameter.

element
RangeMinimum

diagram

type

xs:float

properties

content

simple

used by

complexTypes

annotation

documentation

The minimum value range for the parameter.

element
Scale

diagram

type

xs:float

properties

content	simple
default	1.0

used by

element	Parameters/ParameterUnitSet/ParameterUnit
complexType	PackageSubParameterType

annotation

documentation

This element is used to set the scaling with respect to the BaseUnit. For example, if the base unit is “Volts” and the desired unit is millivolts then the scaling would be 1000.

element
ShortLabel

diagram

type

xs:string

properties

content

simple

used by

complexTypes

annotation

documentation

A short name that is used to identify a parameter. This value need not be unique.

element
SizeInBits

diagram

type

xs:unsignedInt

properties

content	simple
default	16

used by

complexTypes

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat Scale Offset RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content

annotation

documentation

The number of bits that encodes the parameter value.

complexType

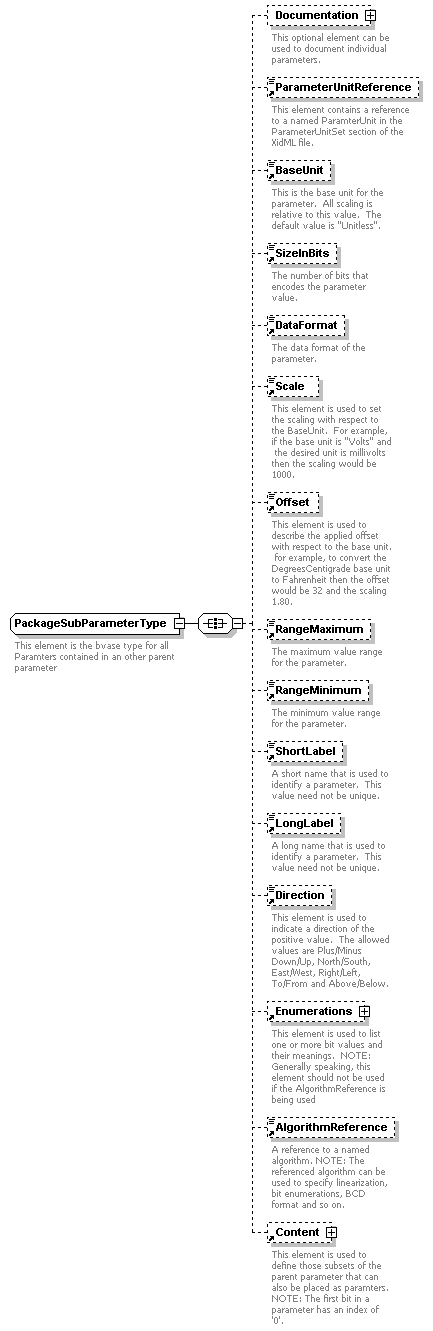

PackageSubParameterType

diagram


children

used by

element

ParameterContentType/Mapping/Parameter

annotation

documentation

This element is the bvase type for all Paramters contained in an other parent parameter

element
PackageSubParameterType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual parameters.

complexType
ParameterContentType

diagram


children

Parameter ParameterReference Location

used by

element

Content

element

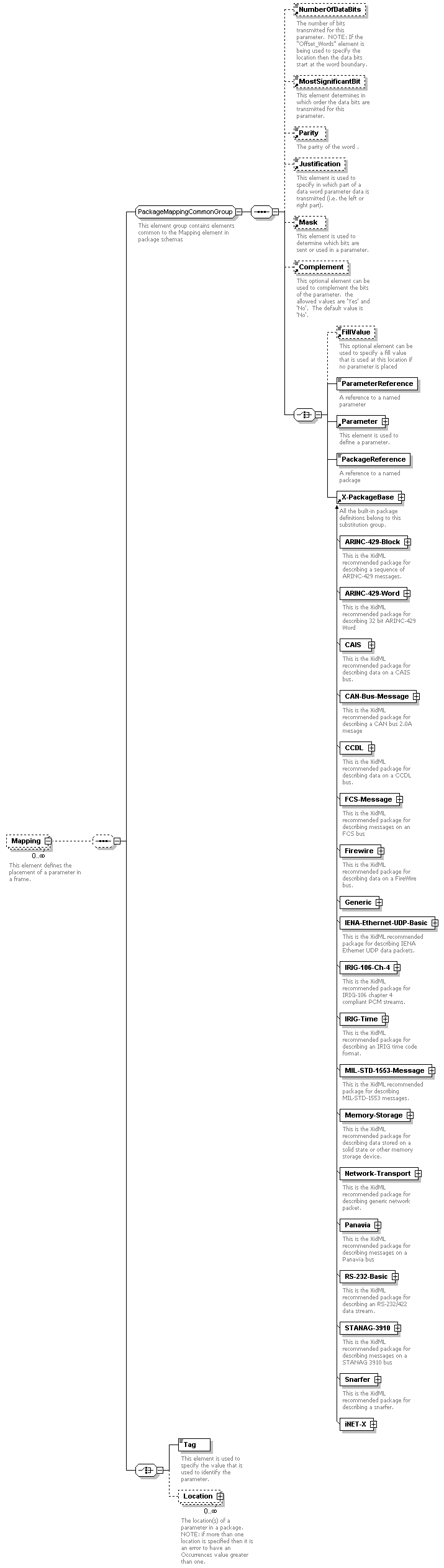

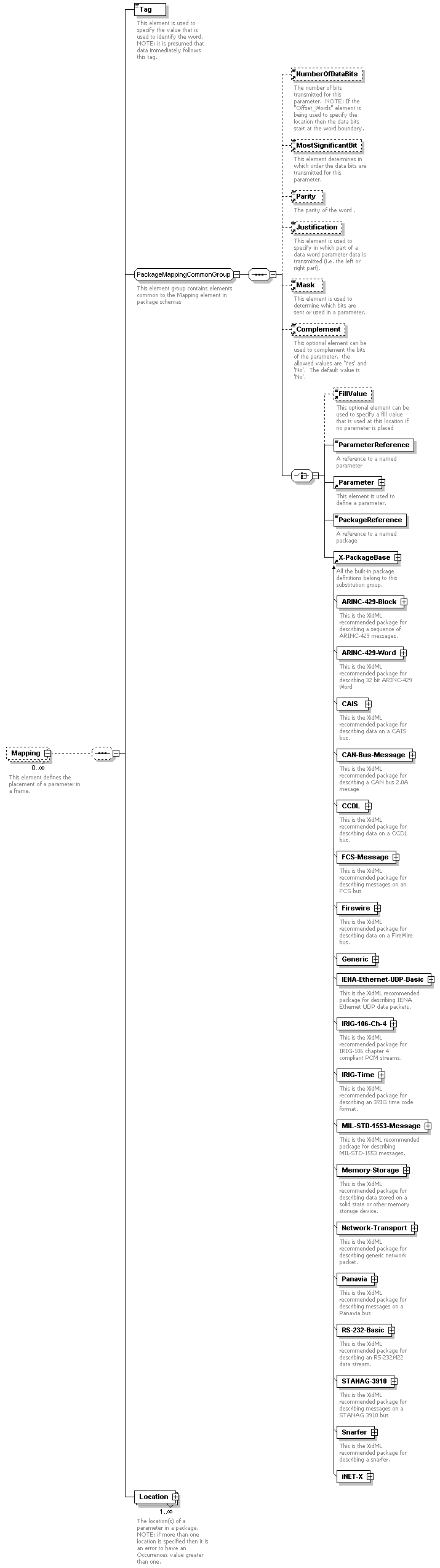

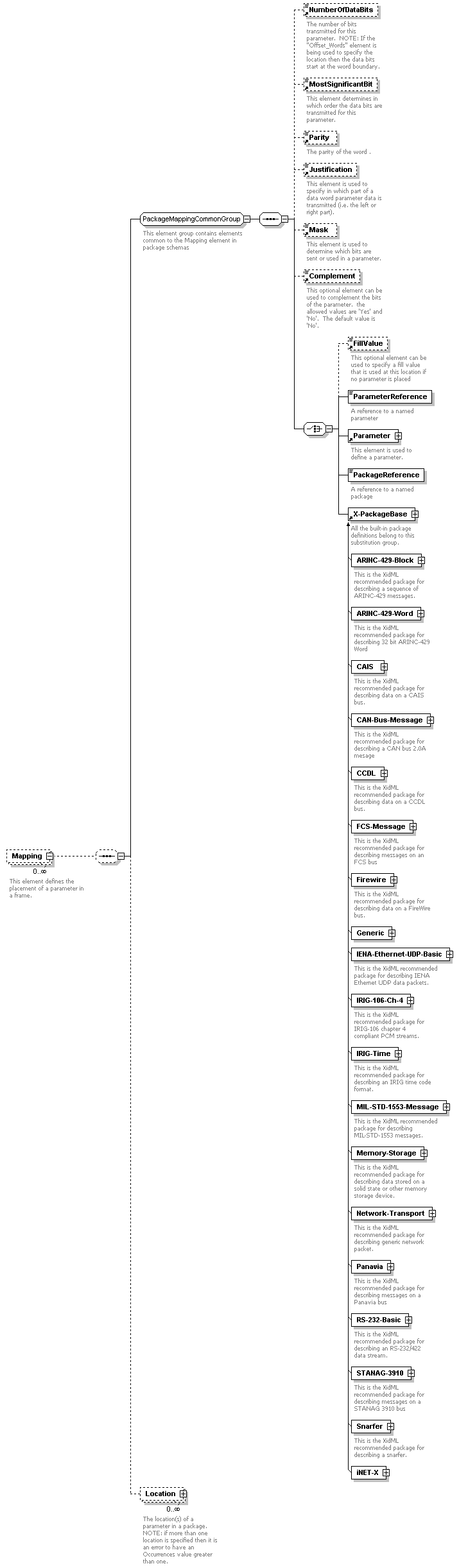

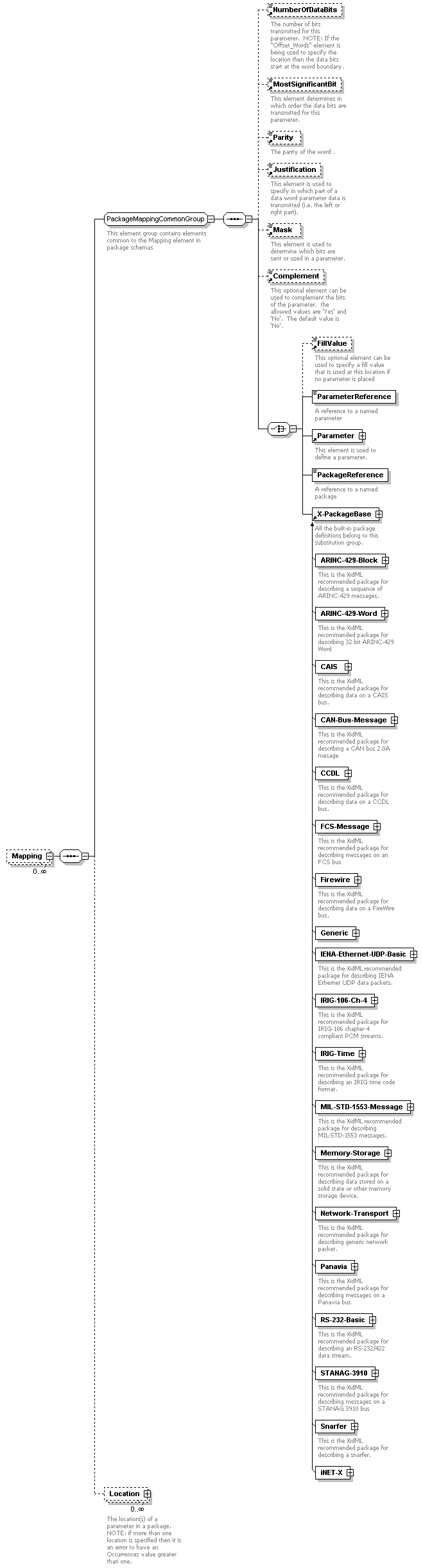

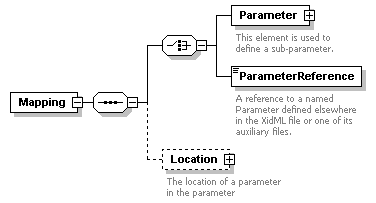

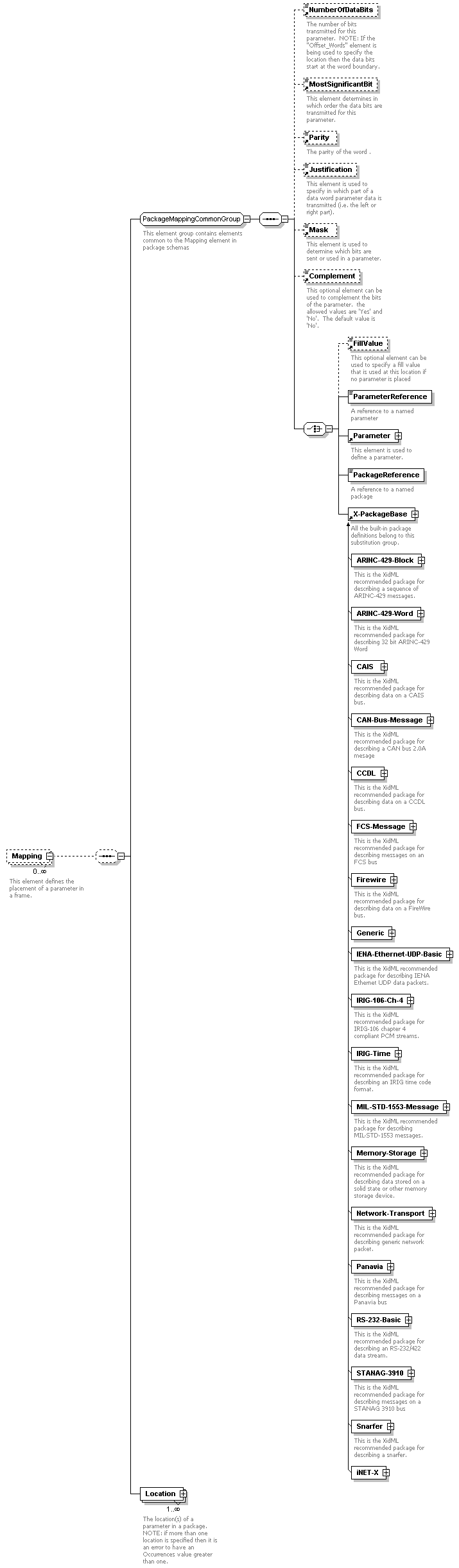

ParameterContentType/Mapping

diagram


properties

isRef	0
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueParameterContent		Parameter	@Name

element
ParameterContentType/Mapping/Parameter

diagram


type

extension of PackageSubParameterType

properties

isRef	0
content	complex

children

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat Scale Offset RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
VendorName	derived by: xs:string	optional

annotation

documentation

This element is used to define a sub-parameter.

attribute
ParameterContentType/Mapping/Parameter/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
ParameterContentType/Mapping/Parameter/@VendorName

type

restriction of xs:string

properties

isRef	0
use	optional

facets

minLength

element
ParameterContentType/Mapping/ParameterReference

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

used by

elements

Channel/Parameters ChannelGroup/Parameters Parsers/Parser/Parameters Processes/Process/Parameters InstrumentType/Parameters

facets

minLength

annotation

documentation

A reference to a named Parameter defined elsewhere in the XidML file or one of its auxiliary files.

element

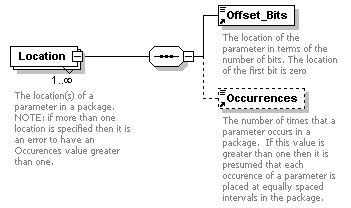

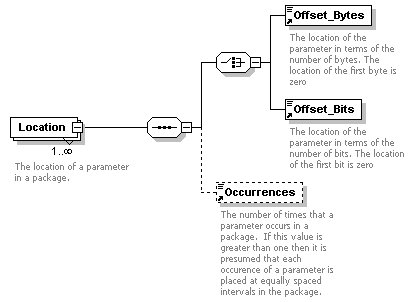

ParameterContentType/Mapping/Location

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Offset_Bits

annotation

documentation

The location of a parameter in the parameter

element
ParameterContentType/Mapping/Location/Offset_Bits

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

used by

elements	CAISType/Content/Mapping/Location CAN-Bus-MessageType/Content/Mapping/Location CCDLType/Content/Mapping/Location FCS-MessageType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Network-TransportType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location
complexType	FrameLocationType

facets

minInclusive

annotation

documentation

The location of the parameter in terms of the number of bits offset relative to the LSB. NOTE: The LSB is located a bit 0.

complexType
ParameterType

element
ParameterType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual parameters.

element
ParameterType/Addendum

diagram


type

AddendumType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

used by

complexType

attributes

Name

Type

Use

Default

Fixed

annotation

documentation

This element can be used to add any data to a parameter definition that may be missing or other infromation that may be required.

element

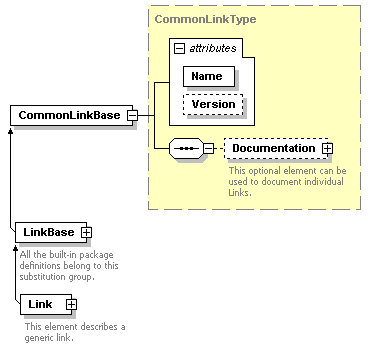

CommonLinkBase

diagram


type

CommonLinkType

properties

content	complex
abstract	true

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional

element

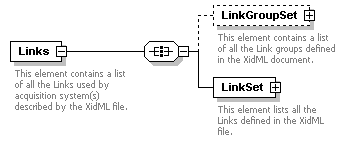

Links

diagram


properties

content

complex

children

LinkGroupSet LinkSet

used by

element

annotation

documentation

This element contains a list of all the Links used by acquisition system(s) described by the XidML file.

element
Links/LinkGroupSet

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueDataLinkGroupName		*	@Name

annotation

documentation

This element contains a list of all the Link groups defined in the XidML document.

element
Links/LinkGroupSet/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element is used to organisz DataLinks into logical groups.

element

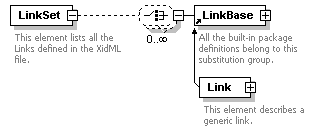

Links/LinkSet

diagram


properties

isRef	0
content	complex

children

LinkBase

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueDataLinkName		*	@Name

annotation

documentation

This element lists all the Links defined in the XidML file.

complexType

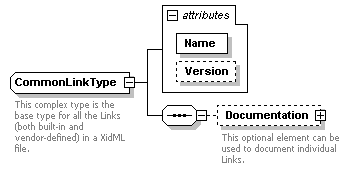

CommonLinkType

diagram


children

used by

element	CommonLinkBase
complexType	X-DataLinkType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional

annotation

documentation

This complex type is the base type for all the Links (both built-in and vendor-defined) in a XidML file.

attribute
CommonLinkType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
CommonLinkType/@Version

type

xs:decimal

properties

isRef	0
use	optional

element

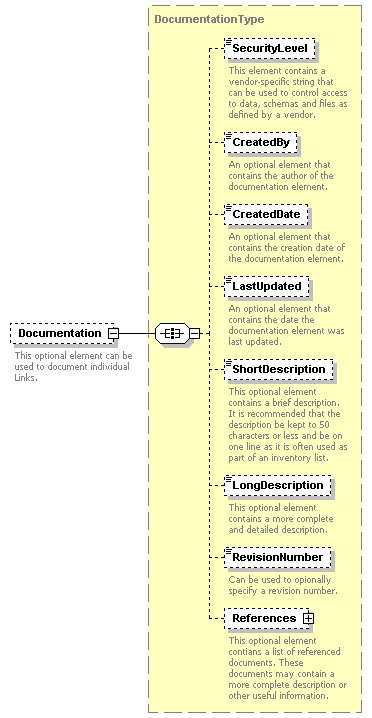

CommonLinkType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual Links.

element
Documentation

diagram


properties

content

complex

children

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription References

annotation

documentation

This element can be used at key locations in a XidML file and is used for documentation and explanation purposes.

element
Documentation/SecurityLevel

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element contains a vendor-specific string that can be used to control access to data, schemas and files as defined by a vendor.

element
Documentation/CreatedBy

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the author of the documentation element.

element
Documentation/CreatedDate

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the creation date of the documentation element.

element
Documentation/LastUpdated

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the date the documentation element was last updated.

element
Documentation/ShortDescription

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This optional element contains a brief description. It is recommended that the description be kept to 50 characters or less and be on one line as it is often used as part of an inventory list.

element
Documentation/LongDescription

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This optional element contains a more complete and detailed description.

element

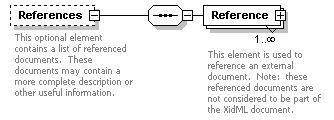

Documentation/References

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Reference

annotation

documentation

This optional element contains a list of referenced documents. These documents may contain a more complete description or other useful information.

element

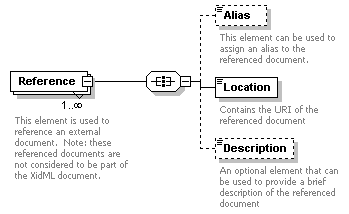

Documentation/References/Reference

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Alias Location Description

annotation

documentation

This element is used to reference an external document. Note: these referenced documents are not considered to be part of the XidML document.

element
Documentation/References/Reference/Alias

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element can be used to assign an alias to the referenced document.

element
Documentation/References/Reference/Location

diagram

type

xs:anyURI

properties

isRef	0
content	simple

annotation

documentation

Contains the URI of the referenced document

element
Documentation/References/Reference/Description

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that can be used to provide a brief description of the referenced document

complexType
DocumentationType

diagram


children

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

used by

elements

xidml/Documentation GroupType/Documentation InstrumentType/Documentation CommonAlgorithmType/Documentation CommonPackageType/Documentation ParameterType/Documentation PackageSubParameterType/Documentation CommonLinkType/Documentation

annotation

documentation

This element type can be used for documentation and explanation purposes.

element
DocumentationType/SecurityLevel

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains a vendor-specific string that can be used to control access to data, schemas and files as defined by a vendor.

element
DocumentationType/CreatedBy

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the author of the documentation element.

element
DocumentationType/CreatedDate

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the creation date of the documentation element.

element
DocumentationType/LastUpdated

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that contains the date the documentation element was last updated.

element
DocumentationType/ShortDescription

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This optional element contains a brief description. It is recommended that the description be kept to 50 characters or less and be on one line as it is often used as part of an inventory list.

element
DocumentationType/LongDescription

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This optional element contains a more complete and detailed description.

element
DocumentationType/RevisionNumber

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Can be used to opionally specify a revision number.

element

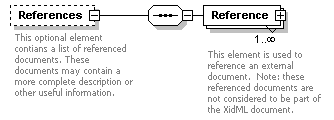

DocumentationType/References

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Reference

annotation

documentation

This optional element contians a list of referenced documents. These documents may contain a more complete description or other useful information.

element
DocumentationType/References/Reference

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Alias Location Description

annotation

documentation

This element is used to reference an external document. Note: these referenced documents are not considered to be part of the XidML document.

element
DocumentationType/References/Reference/Alias

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element can be used to assign an alias to the referenced document.

element
DocumentationType/References/Reference/Location

diagram

type

xs:anyURI

properties

isRef	0
content	simple

annotation

documentation

Contains the URI of the referenced document

element
DocumentationType/References/Reference/Description

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

An optional element that can be used to provide a brief description of the referenced document

element
Addendum

diagram

properties

content

complex

used by

complexType

xidml/Addenda/Addendum InstrumentType/Addendum ParameterType/Addendum

attributes

Name

Type

Use

Default

Fixed

annotation

documentation

This element can be used to add vendor-specific information at key points in a XidML document.

complexType
AddendumType

diagram

used by

elements

attributes

Name

Type

Use

Default

Fixed

annotation

documentation

This element can be used to add vendor-specific information at key points in a XidML document.

complexType
GroupType

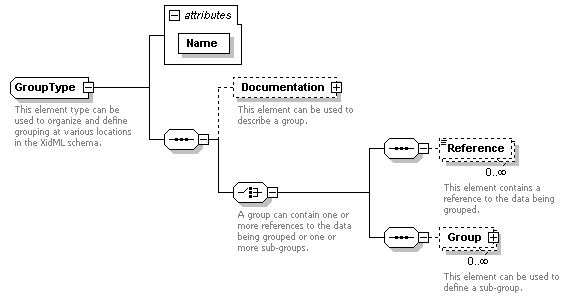

diagram


children

Instrumentation/InstrumentGroupSet/Group Algorithms/AlgorithmGroupSet/Group Packages/PackageGroupSet/Group Parameters/ParameterGroupSet/Group Links/LinkGroupSet/Group GroupType/Group

used by

elements

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element type can be used to organize and define grouping at various locations in the XidML schema.

attribute
GroupType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

element
GroupType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element can be used to describe a group.

element
GroupType/Reference

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

minLength

annotation

documentation

This element contains a reference to the data being grouped.

element
GroupType/Group

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

FragmentMap/Algorithm/AlgorithmReference AlgorithmReference DataMaskType/AlgorithmReference

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueGroupName		Group	@Name

annotation

documentation

This element can be used to define a sub-group.

complexType
AlgorithmInstanceType

diagram

type

extension of xs:string

properties

base

xs:string

complexType
AlgorithmReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

used by

elements

annotation

documentation

This is the base type for all elements that reference a named algorithm.

complexType
DataLinkReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

complexType
InstrumentReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

annotation

documentation

This is the base type for all elements that reference a named instrument

complexType
PackageReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

used by

elements

LinkType/Packages/PackageReference PackageMappingCommonGroup/PackageReference

annotation

documentation

This is the base type for all elements that reference a named package

complexType
ParameterMapType

diagram

type

extension of xs:string

properties

base

xs:string

annotation

documentation

This is the base type for all elements that reference a parameter in a named package.

complexType
ParameterReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

used by

elements

ParameterReference InputType/ParameterReference OutputType/ParameterReference PackageMappingCommonGroup/ParameterReference

annotation

documentation

This is the base type for all elements that reference a named parameter

complexType
ParameterTypeReferenceType

diagram

type

extension of xs:string

properties

base

xs:string

annotation

documentation

This is the base type for all elements that reference a named parameter type definition.

complexType
VendorMapType

diagram

type

extension of xs:string

properties

base

xs:string

element

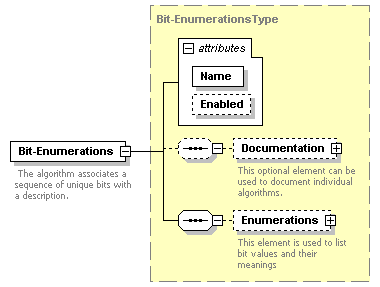

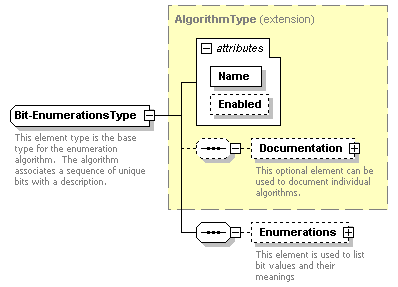

Bit-Enumerations

diagram


type

Bit-EnumerationsType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Enumerations

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

The algorithm associates a sequence of unique bits with a description.

element

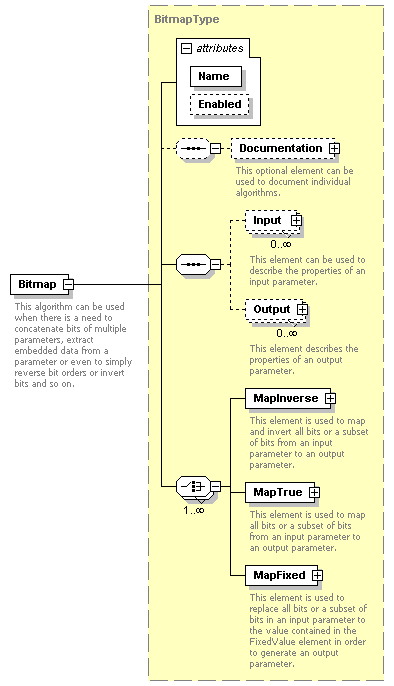

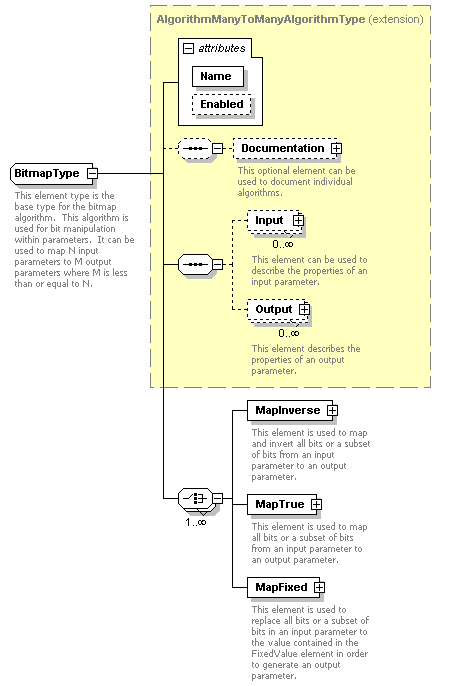

Bitmap

diagram


type

BitmapType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output MapInverse MapTrue MapFixed

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This algorithm can be used when there is a need to concatenate bits of multiple parameters, extract embedded data from a parameter or even to simply reverse bit orders or invert bits and so on.

element
Boolean-Simple

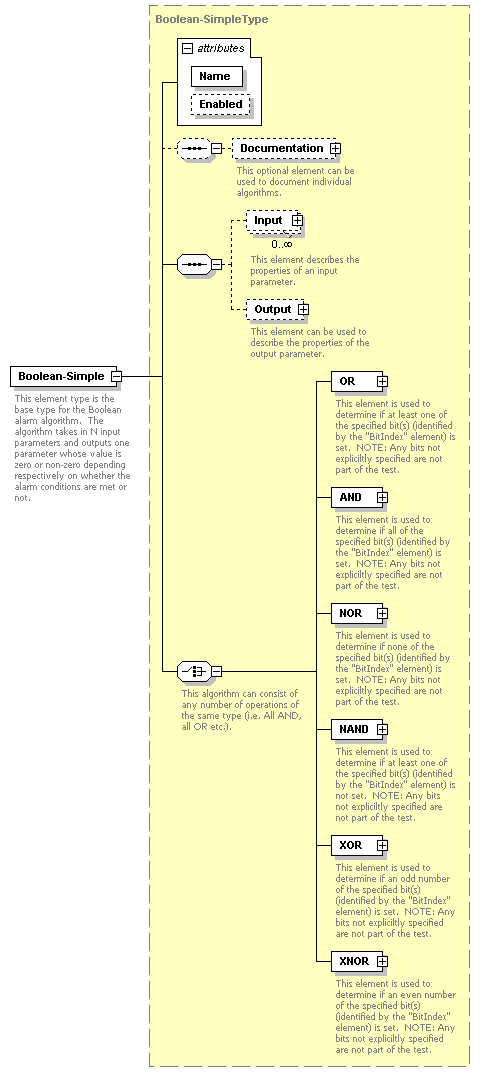

diagram


type

Boolean-SimpleType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output OR AND NOR NAND XOR XNOR

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the Boolean alarm algorithm. The algorithm takes in N input parameters and outputs one parameter whose value is zero or non-zero depending respectively on whether the alarm conditions are met or not.

element

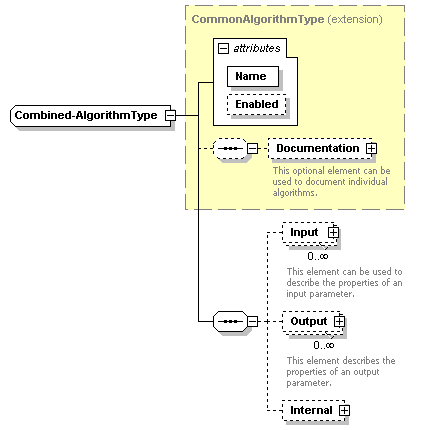

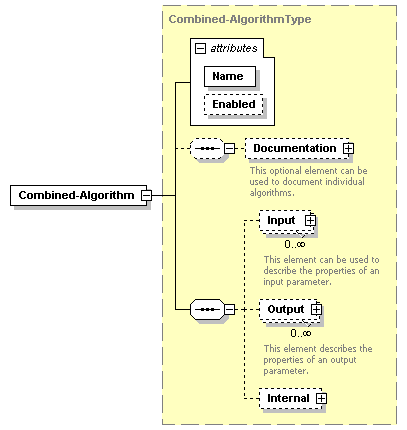

Combined-Algorithm

diagram


type

Combined-AlgorithmType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Internal

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

element

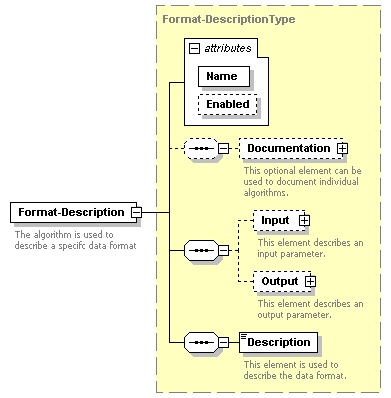

Format-Description

diagram


type

Format-DescriptionType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Description

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

The algorithm is used to describe a specifc data format

element

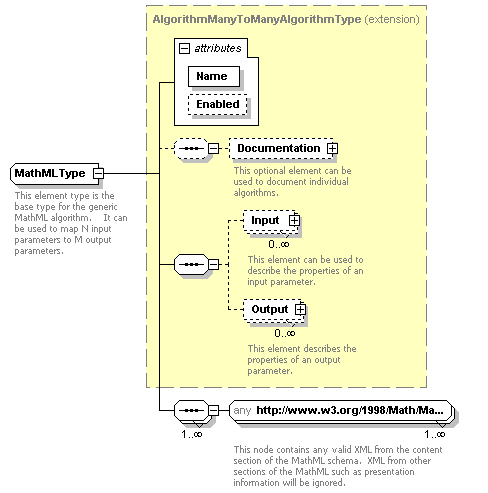

MathML-1.0

diagram


type

MathMLType

properties

content	complex
substGrp	AlgorithmBase

children

NSamplesInOneSampleOut-AmplitudeType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This algorithm is used when the use of MathML is required to describe complex mathematical expressions.

element

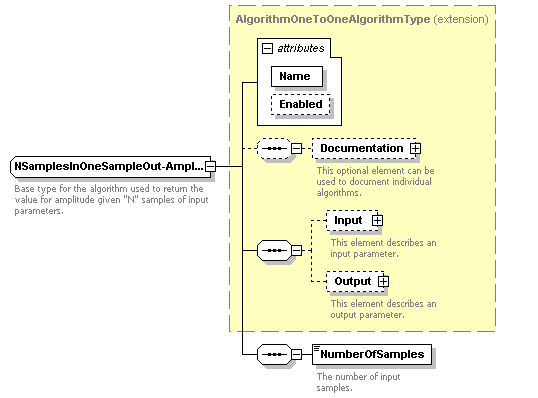

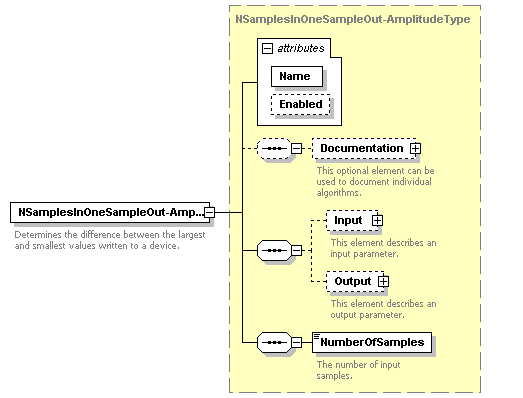

NSamplesInOneSampleOut-Amplitude

diagram


type

properties

content	complex
substGrp	AlgorithmBase

children

NSamplesInOneSampleOut-AverageType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Determines the difference between the largest and smallest values written to a device.

element

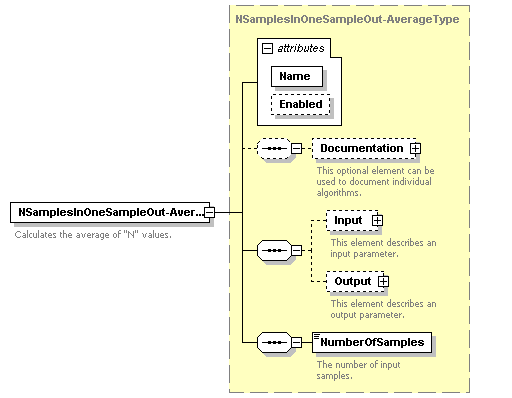

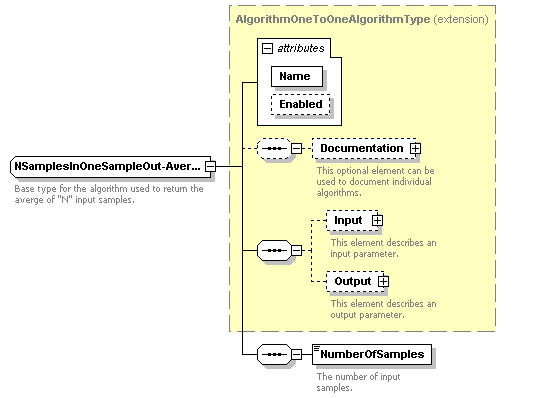

NSamplesInOneSampleOut-Average

diagram


type

properties

content	complex
substGrp	AlgorithmBase

children

NSamplesInOneSampleOut-MaximumType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Calculates the average of “N” values.

element
NSamplesInOneSampleOut-Maximum

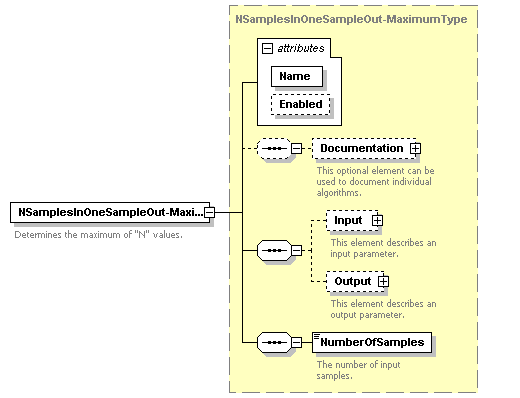

diagram


type

properties

content	complex
substGrp	AlgorithmBase

children

NSamplesInOneSampleOut-MinimumType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Determines the maximum of “N” values.

element
NSamplesInOneSampleOut-Minimum

diagram


type

properties

content	complex
substGrp	AlgorithmBase

children

NSamplesInOneSampleOut-RMSType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Determines the minimum of “N” values.

element
NSamplesInOneSampleOut-RMS

diagram


type

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Term

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Calculates the RMS of “N” values.

element

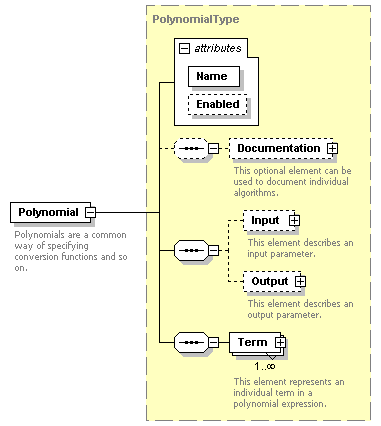

Polynomial

diagram


type

PolynomialType

properties

content	complex
substGrp	AlgorithmBase

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Polynomials are a common way of specifying conversion functions and so on.

element

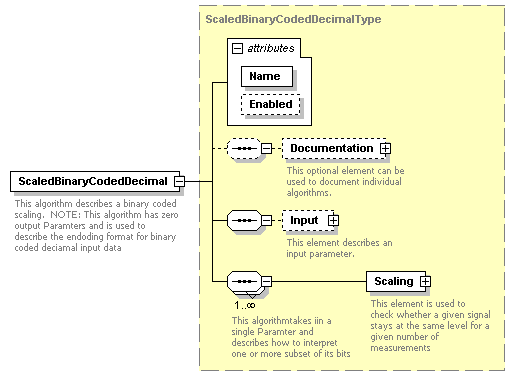

ScaledBinaryCodedDecimal

diagram


type

ScaledBinaryCodedDecimalType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Scaling

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This algorithm describes a binary coded scaling. NOTE: This algorithm has zero output Paramters and is used to describe the endoding format for binary coded deciamal input data

element

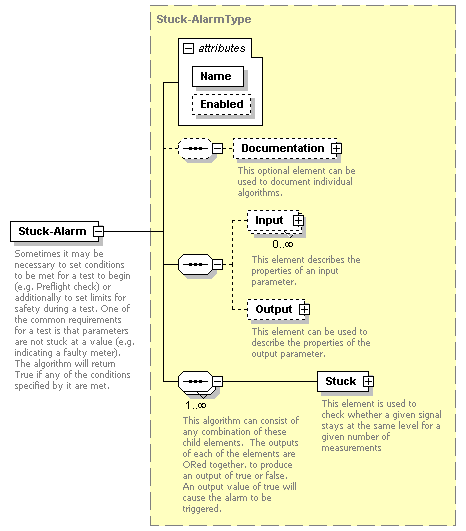

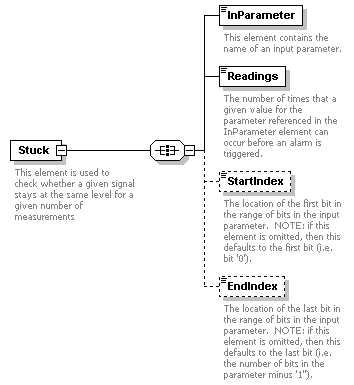

Stuck-Alarm

diagram


type

Stuck-AlarmType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Stuck

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Sometimes it may be necessary to set conditions to be met for a test to begin (e.g. Preflight check) or additionally to set limits for safety during a test. One of the common requirements for a test is that parameters are not stuck at a value (e.g. indicating a faulty meter). The algorithm will return True if any of the conditions specified by it are met.

element

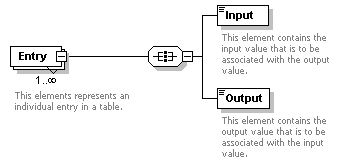

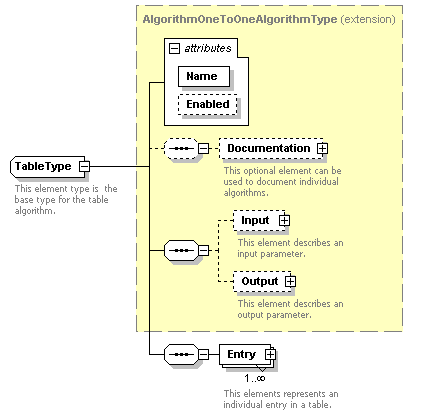

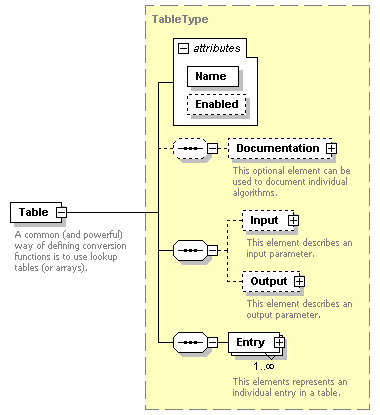

Table

diagram


type

TableType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Entry

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

A common (and powerful) way of defining conversion functions is to use lookup tables (or arrays).

element

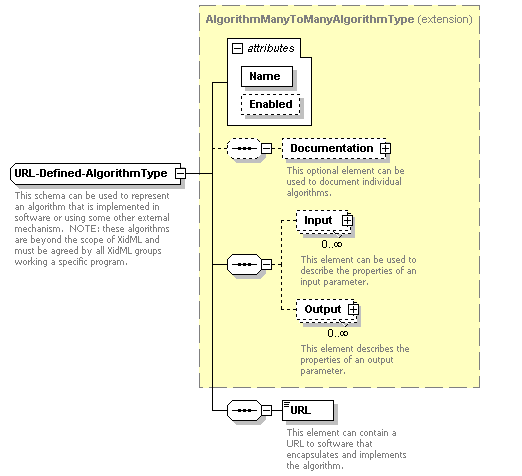

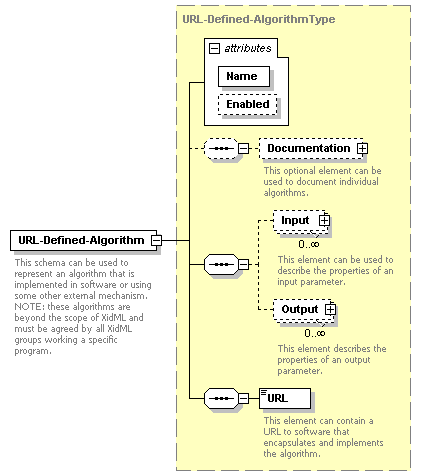

URL-Defined-Algorithm

diagram


type

URL-Defined-AlgorithmType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output URL

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This schema can be used to represent an algorithm that is implemented in software or using some other external mechanism. NOTE: these algorithms are beyond the scope of XidML and must be agreed by all XidML groups working a specific program.

element

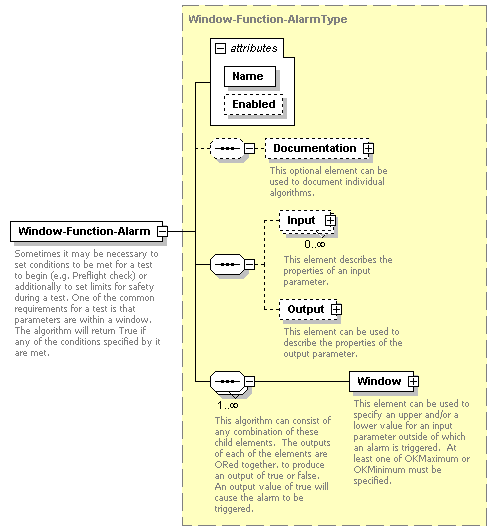

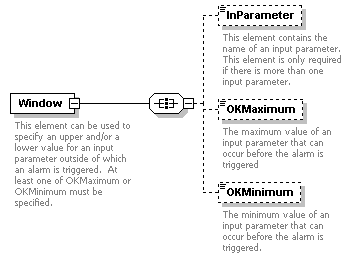

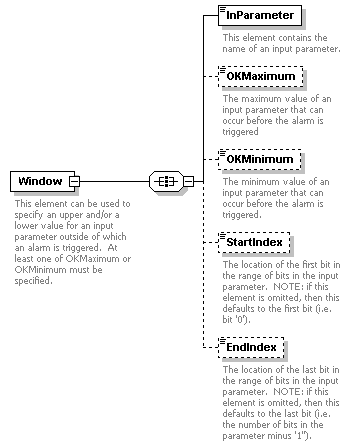

Window-Function-Alarm

diagram


type

Window-Function-AlarmType

properties

content	complex
substGrp	AlgorithmBase

children

Documentation Input Output Window

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueWindowInputParameterName		./Window	InParameter

annotation

documentation

Sometimes it may be necessary to set conditions to be met for a test to begin (e.g. Preflight check) or additionally to set limits for safety during a test. One of the common requirements for a test is that parameters are within a window. The algorithm will return True if any of the conditions specified by it are met.

simpleType
BaseUnitType

type

restriction of xs:string

used by

element

BaseUnit

facets

enumeration	Meter
enumeration	Kilogram
enumeration	Second
enumeration	Ampere
enumeration	Kelvin
enumeration	Mole
enumeration	Candela
enumeration	SquareMeter
enumeration	CubicMeter
enumeration	MetersPerSecond
enumeration	MetersPerSecondSquared
enumeration	ReciprocalMeter
enumeration	KilogramPerCubicMeter
enumeration	CubicMeterPerKilogram
enumeration	AmperePerSquareMeter
enumeration	AmperePerMeter
enumeration	MolePerCubicMeter
enumeration	CandelaPerSquareMeter
enumeration	Radian
enumeration	Steradian
enumeration	Hertz
enumeration	Newton
enumeration	Pascal
enumeration	Joule
enumeration	Watt
enumeration	Coulomb
enumeration	Volt
enumeration	Farad
enumeration	Ohm
enumeration	Siemens
enumeration	Weber
enumeration	Tesla
enumeration	Henry
enumeration	Lumen
enumeration	Lux
enumeration	Becquerel
enumeration	Celsius
enumeration	Gray
enumeration	Sievert
enumeration	Katal
enumeration	PascalSecond
enumeration	NewtonMeter
enumeration	NewtonPerMeter
enumeration	RadianPerSecond
enumeration	RadianPerSecondSquared
enumeration	WattPerSquareMeter
enumeration	JoulePerKelvin
enumeration	JoulePerKilogramKelvin
enumeration	JoulePerKilogram
enumeration	WattPerMeterKelvin
enumeration	JoulePerCubicMeter
enumeration	VoltPerMeter
enumeration	CoulombPerCubicMeter
enumeration	CoulombPerSquareMeter
enumeration	FaradPerMeter
enumeration	HenryPerMeter
enumeration	JoulePerMole
enumeration	JoulePerMoleKelvin
enumeration	CoulombPerKilogram
enumeration	GrayPerSecond
enumeration	WattPerSteradian
enumeration	WattPerSquareMeterSteradian
enumeration	KatalPerCubicMeter
enumeration	Unitless
enumeration	Count
enumeration	Ratio
enumeration	Bytes
enumeration	Boolean
enumeration	BitVector
enumeration	BitStream
enumeration	Text

annotation

documentation

This type lists the base types that are used in XidML.

element

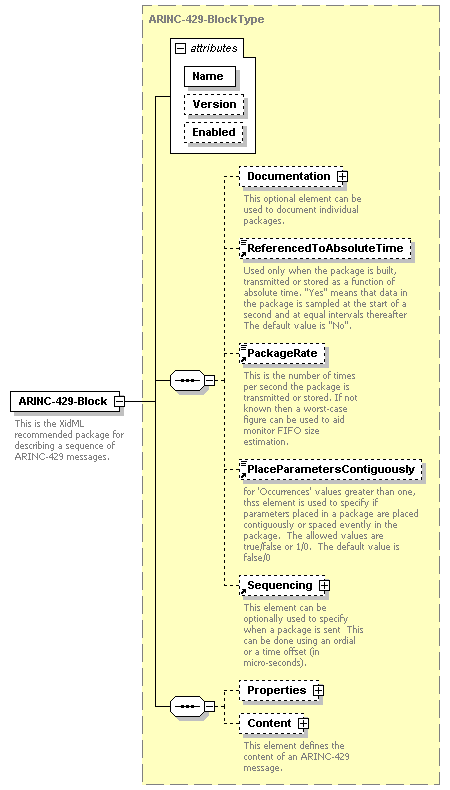

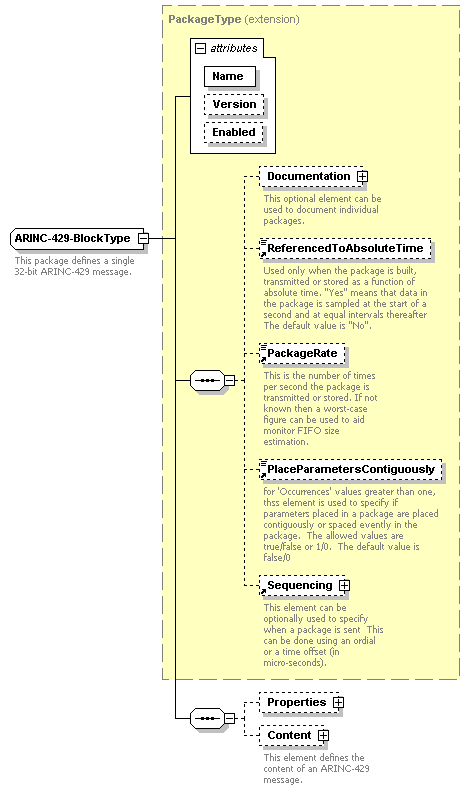

ARINC-429-Block

diagram


type

ARINC-429-BlockType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueARINC429PackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing a sequence of ARINC-429 messages.

element

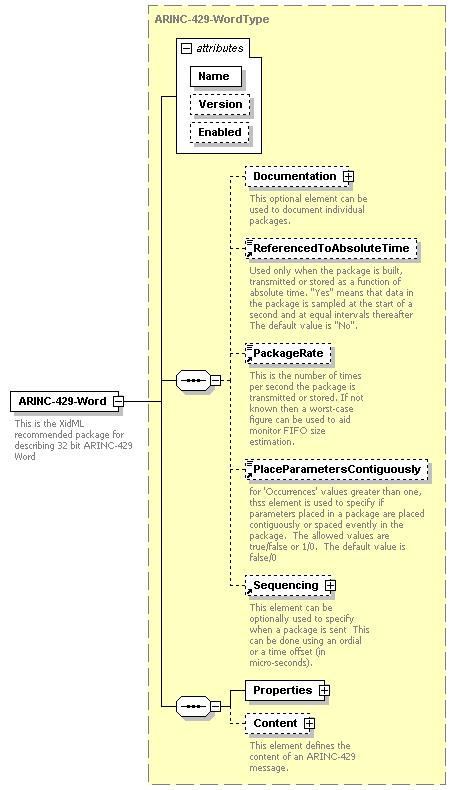

ARINC-429-Word

diagram


type

ARINC-429-WordType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueARINC429WordPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing 32 bit ARINC-429 Word

element

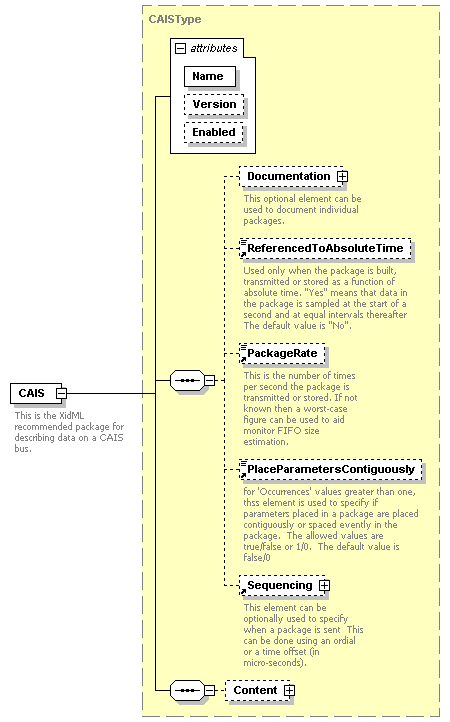

CAIS

diagram


type

CAISType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCAISPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing data on a CAIS bus.

element

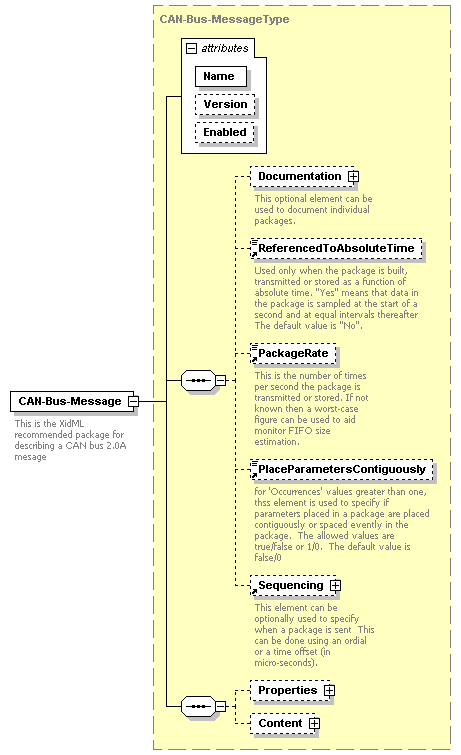

CAN-Bus-Message

diagram


type

CAN-Bus-MessageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCANBusPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing a CAN bus 2.0A mesage

element
CCDL

diagram


type

CCDLType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCCDLPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing data on a CCDL bus.

element
FCS-Message

diagram


type

FCS-MessageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueFCSPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing messages on an FCS bus

element
Firewire

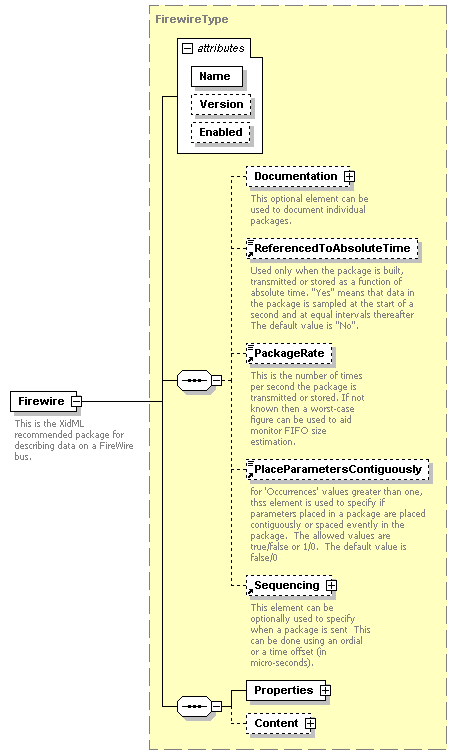

diagram


type

FirewireType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueFirewirePackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing data on a FireWire bus.

element

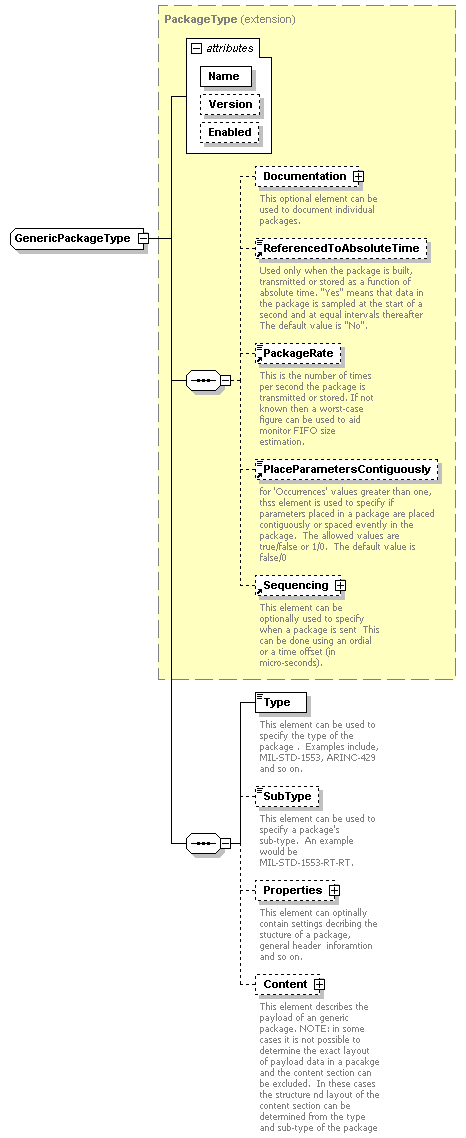

Generic

diagram


type

GenericPackageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Type SubType Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueGenericPackageParameterReference		./Content/Mapping	ParameterReference

element
IENA-Ethernet-UDP-Basic

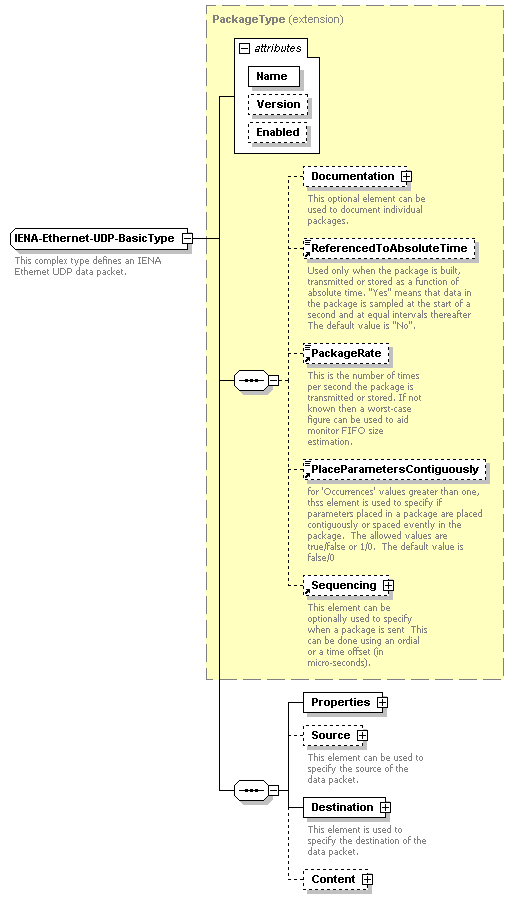

diagram


type

IENA-Ethernet-UDP-BasicType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueIENAPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing IENA Ethernet UDP data packets.

element
iNET-X

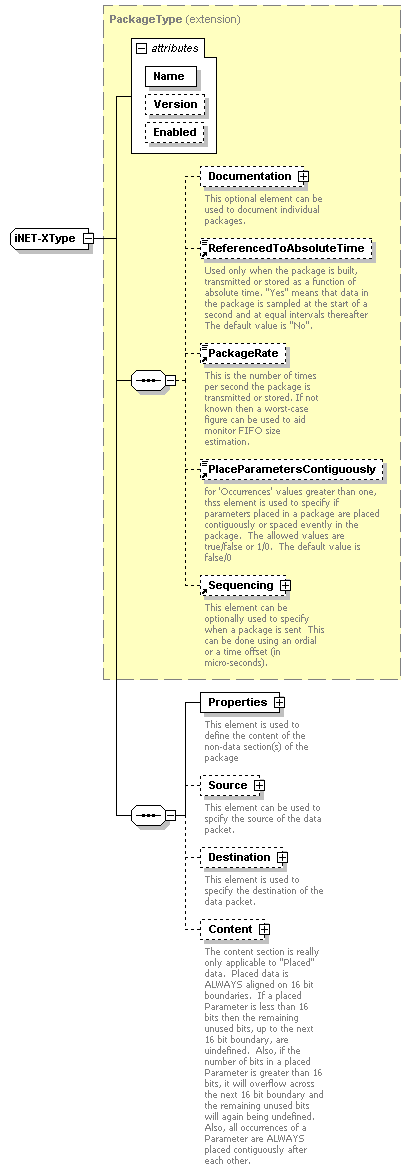

diagram


type

iNET-XType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueiNETXPackageParameterReference		./Content/Mapping	ParameterReference

element

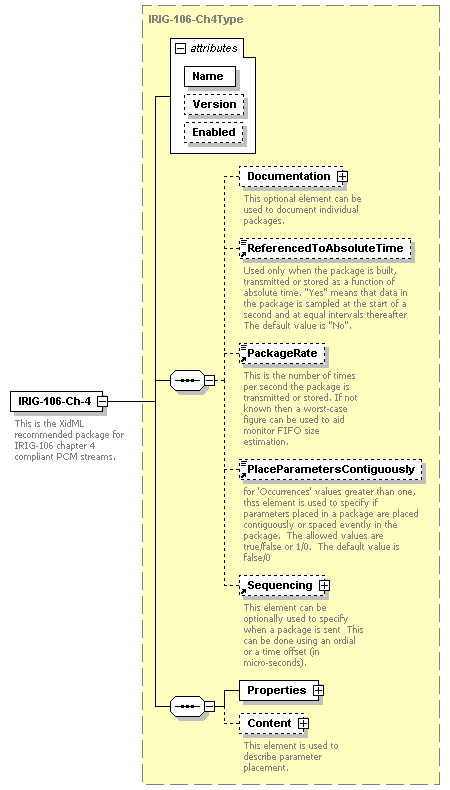

IRIG-106-Ch-4

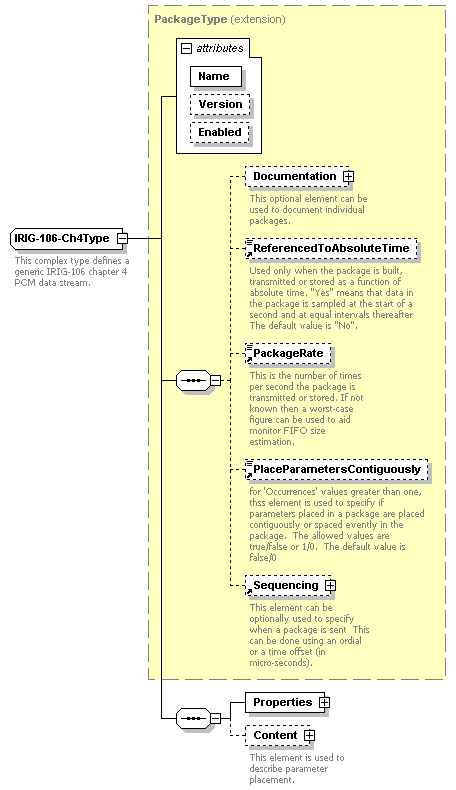

diagram


type

IRIG-106-Ch4Type

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueIRIG106PackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for IRIG-106 chapter 4 compliant PCM streams.

element

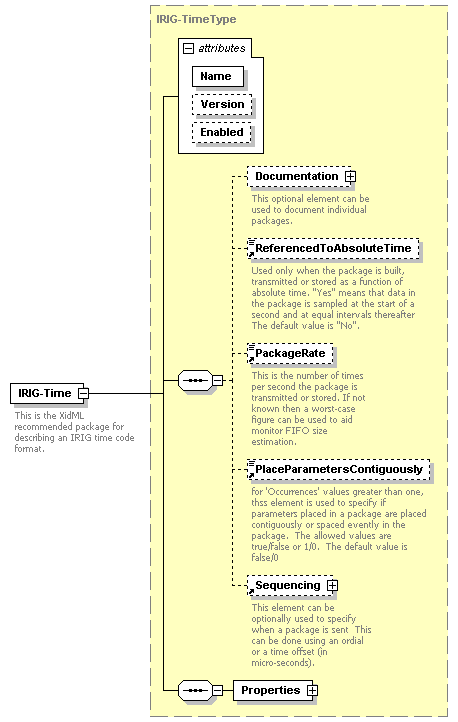

IRIG-Time

diagram


type

IRIG-TimeType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This is the XidML recommended package for describing an IRIG time code format.

element

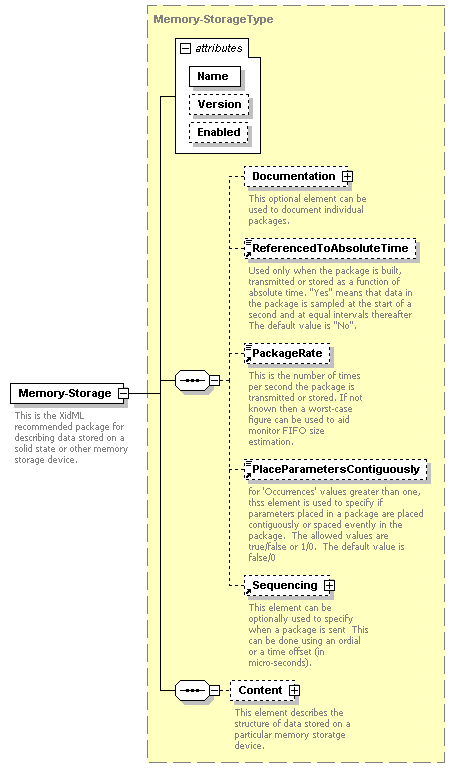

Memory-Storage

diagram


type

Memory-StorageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueMemoryStoragePackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing data stored on a solid state or other memory storage device.

element

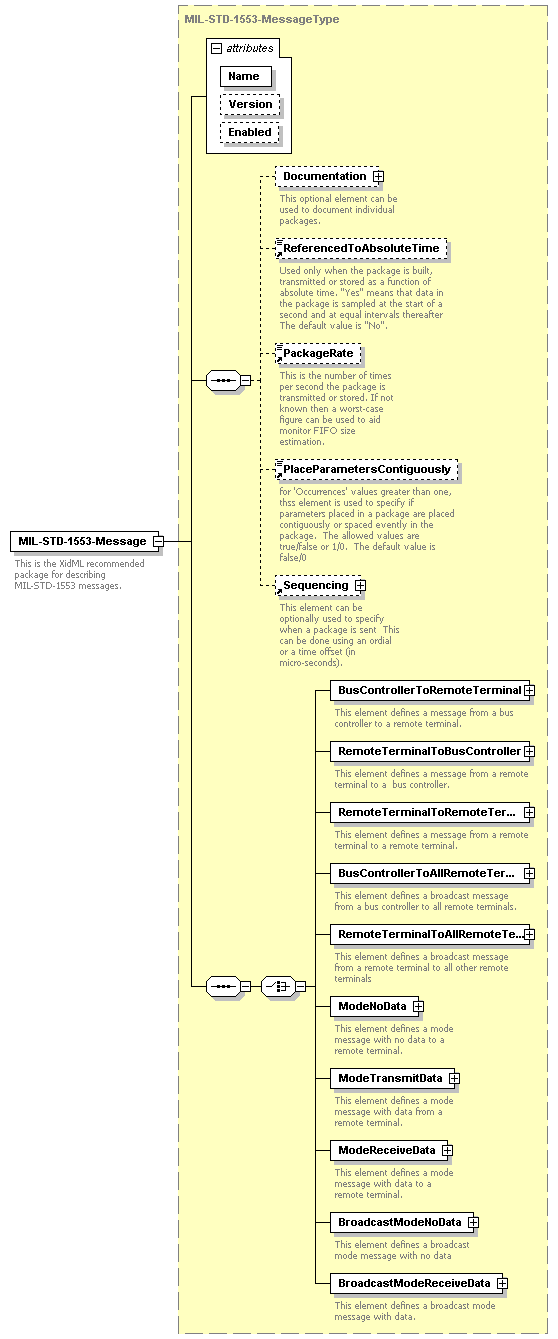

MIL-STD-1553-Message

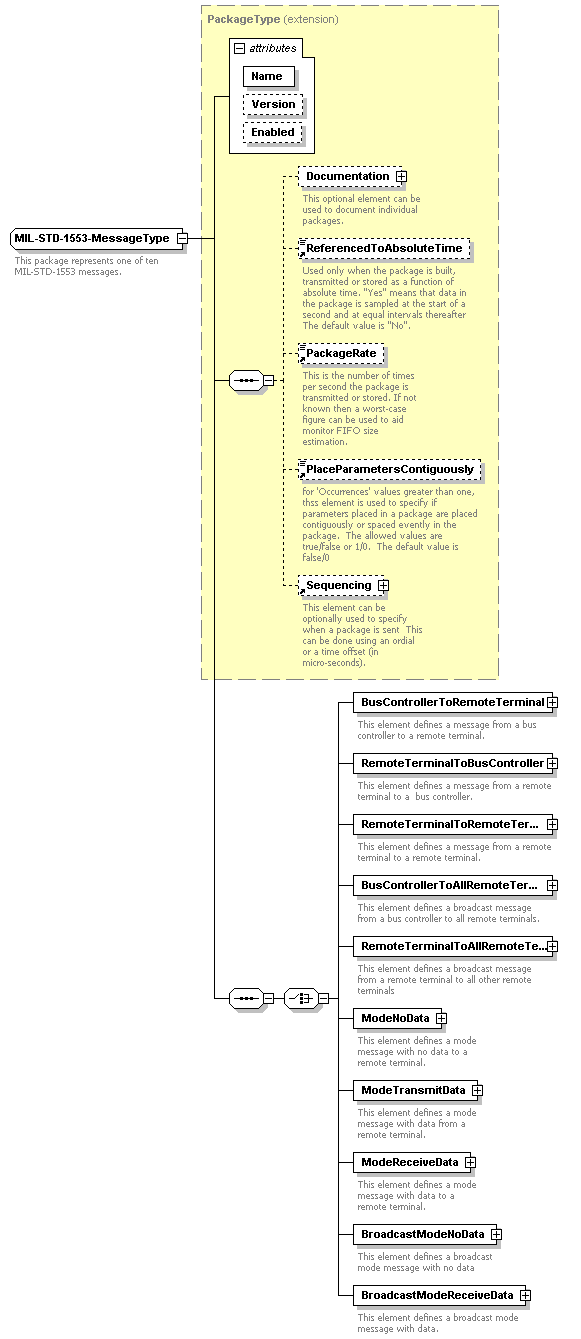

diagram


type

MIL-STD-1553-MessageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing BusControllerToRemoteTerminal RemoteTerminalToBusController RemoteTerminalToRemoteTerminal BusControllerToAllRemoteTerminals RemoteTerminalToAllRemoteTerminals ModeNoData ModeTransmitData ModeReceiveData BroadcastModeNoData BroadcastModeReceiveData

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	Unique1553PackageParameterReference		./*/Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing MIL-STD-1553 messages.

element

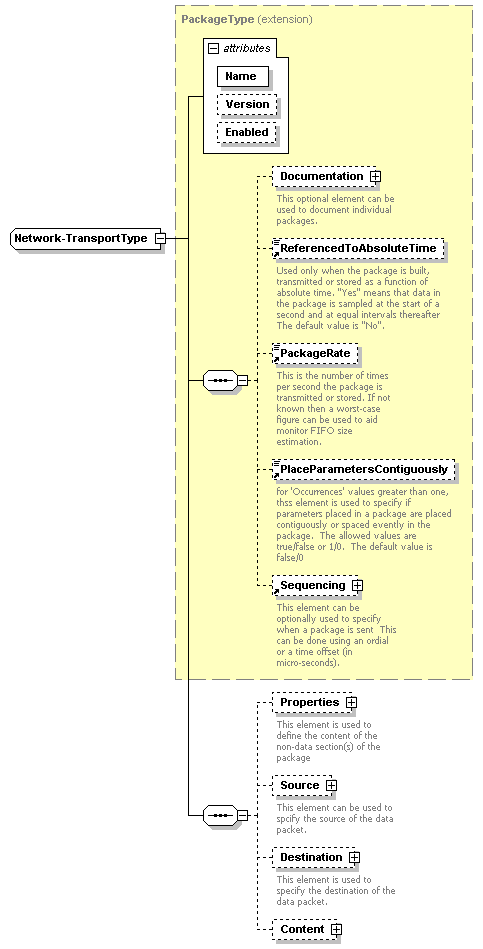

Network-Transport

diagram


type

Network-TransportType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueNetworkStoragePackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing generic network packet.

element

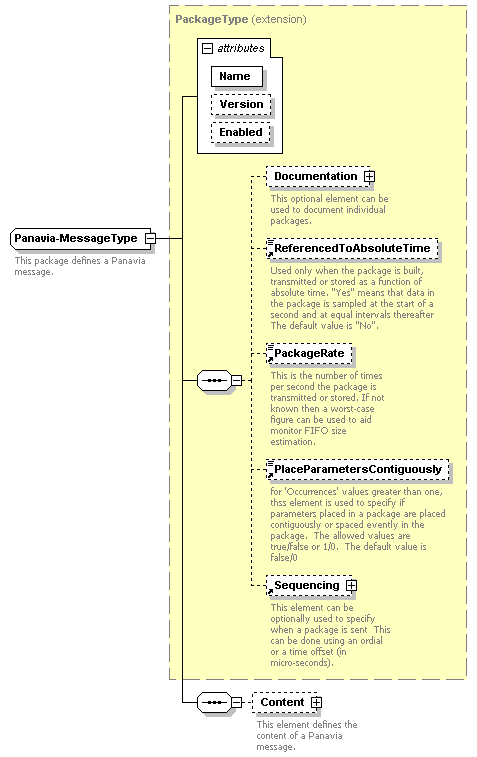

Panavia

diagram


type

Panavia-MessageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniquePanaviaPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing messages on a Panavia bus

element
RS-232-Basic

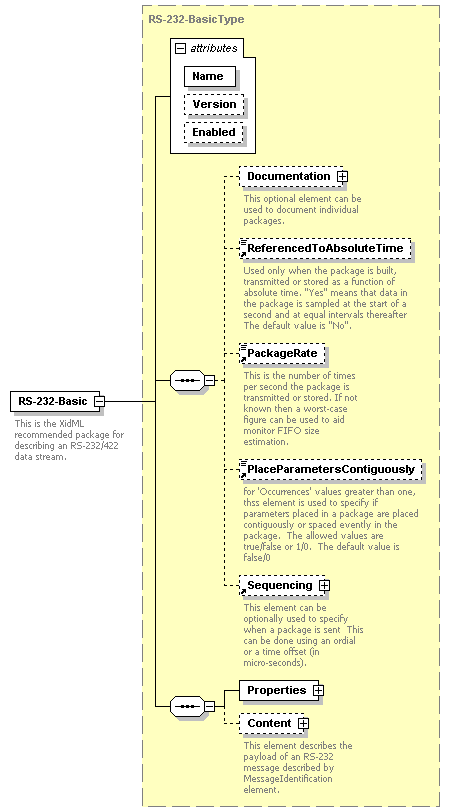

diagram


type

RS-232-BasicType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueRS232BasicPackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing an RS-232/422 data stream.

element
Snarfer

diagram


type

SnarferType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This is the XidML recommended package for describing a snarfer.

element

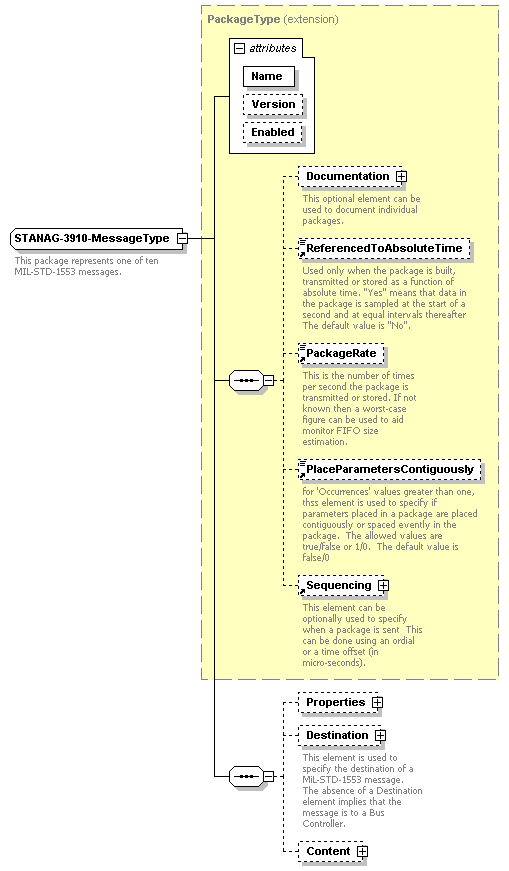

STANAG-3910

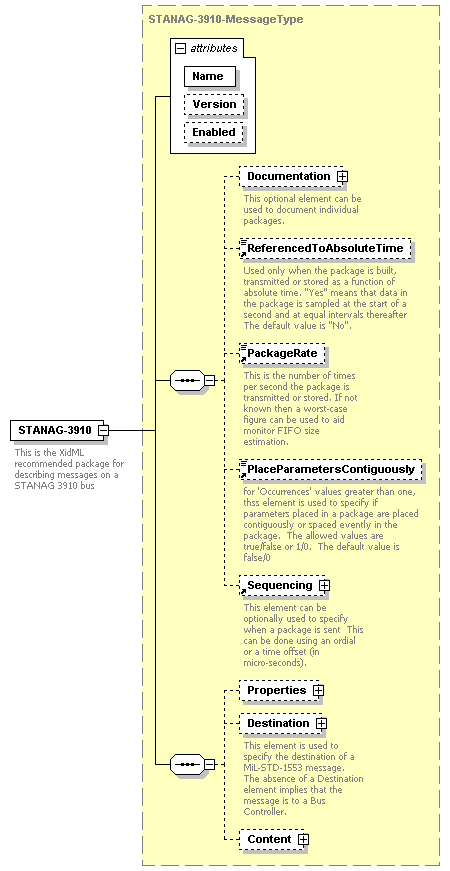

diagram


type

STANAG-3910-MessageType

properties

content	complex
substGrp	X-PackageBase

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Destination Content

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueSTANAG3910PackageParameterReference		./Content/Mapping	ParameterReference

annotation

documentation

This is the XidML recommended package for describing messages on a STANAG 3910 bus

simpleType
DataFormatType

type

restriction of xs:string

used by

element

DataFormat

facets

enumeration	OffsetBinary
enumeration	SignedMagnitude
enumeration	TwosComplement
enumeration	BinaryCodedDecimal
enumeration	BitVector
enumeration	BitStream
enumeration	IEEE-754-Float-Single
enumeration	IEEE-754-Float-Double
enumeration	ASCII-7
enumeration	ASCII-8
enumeration	Unicode
enumeration	UserFormat

element

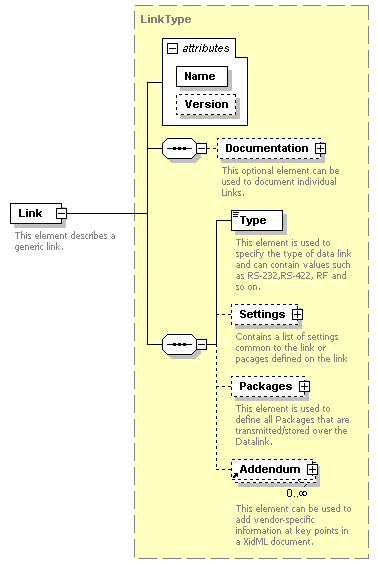

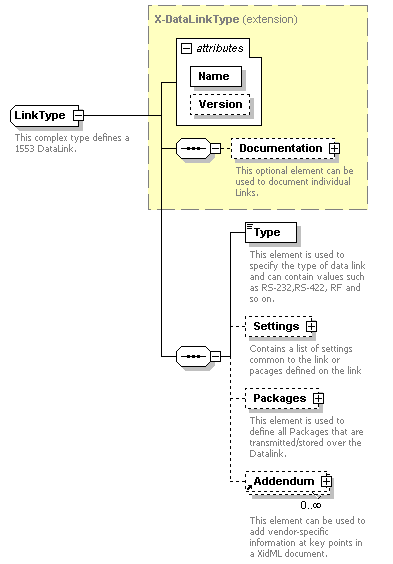

Link

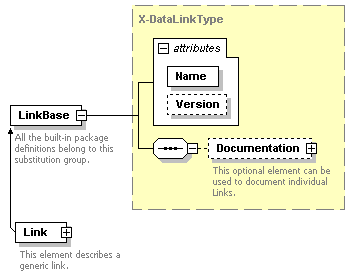

diagram


type

Documentation Type Settings Packages Addendum

properties

content	complex
substGrp	LinkBase

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional

annotation

documentation

This element describes a generic link.

element
Channel

diagram


properties

content

complex

children

LinkReference LinkBase Settings Specifications Parameters Processes

used by

element

Channels

attributes

Name	Type	Use	Default	Fixed	annotation
VendorName	xs:string	required
Enabled	xs:boolean	optional	true
Direction	derived by: xs:string	optional	Bidirectional

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueVendorName		./*/Parameter	@VendorName

annotation

documentation

This element is used to define the setup of a channel in addition to defining all Parameters and DataLinks associated with the channel.

attribute
Channel/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
Channel/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

attribute
Channel/@Direction

type

restriction of xs:string

properties

isRef	0
default	Bidirectional
use	optional

facets

enumeration	Input
enumeration	Output
enumeration	Bidirectional

element

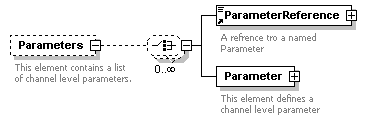

Channel/Parameters

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

element

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

This element contains a list of channel level parameters.

element
Channel/Parameters/Parameter

diagram


type

extension of ParameterType

properties

isRef	0
content	complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
VendorName	xs:string	required
Name	xs:string	required
Orientation	derived by: xs:string	optional	Read

annotation

documentation

This element defines a channel level parameter

attribute
Channel/Parameters/Parameter/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
Channel/Parameters/Parameter/@Name

type

xs:string

properties

isRef	0
use	required

attribute
Channel/Parameters/Parameter/@Orientation

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

element
ChannelGroup

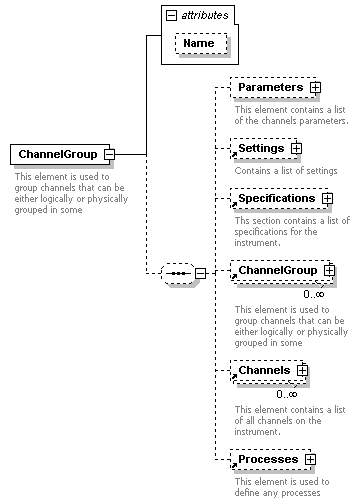

diagram


properties

content

complex

children

Parameters Settings Specifications ChannelGroup Channels Processes

used by

elements

ChannelGroup Channels

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	optional

annotation

documentation

This element is used to group channels that can be either logically or physically grouped in some

attribute
ChannelGroup/@Name

type

xs:string

properties

isRef	0
use	optional

element
ChannelGroup/Parameters

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

element

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

This element contains a list of the channels parameters.

element
ChannelGroup/Parameters/Parameter

diagram


type

extension of ParameterType

properties

isRef	0
content	complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Orientation	derived by: xs:string	optional
VendorName	xs:string	optional

annotation

documentation

This element defines a channel level parameter

attribute
ChannelGroup/Parameters/Parameter/@Orientation

type

restriction of xs:string

properties

isRef	0
use	optional

facets

enumeration	Read
enumeration	Write

attribute
ChannelGroup/Parameters/Parameter/@VendorName

type

xs:string

properties

isRef	0
use	optional

element
Channels

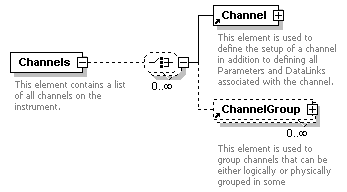

diagram


properties

content

complex

children

Channel ChannelGroup

used by

element	ChannelGroup
complexType	InstrumentType

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueChannelGroupName		./ChannelGroup	@Name
unique	UniqueChannelName		./Channel	@Name

annotation

documentation

This element contains a list of all channels on the instrument.

element
Instrument

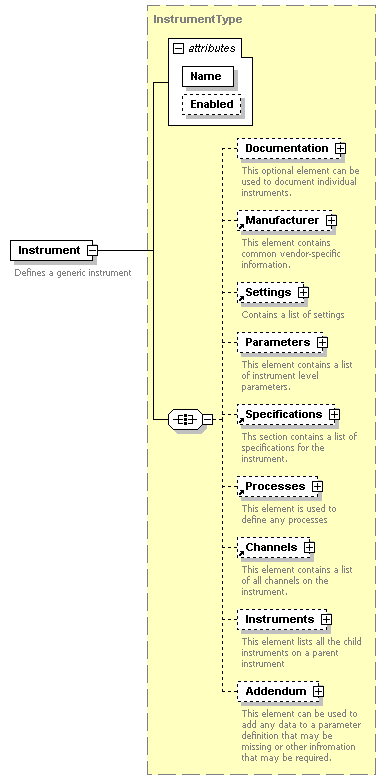

diagram


type

InstrumentType

properties

content	complex
substGrp	InstrumentBase

children

Documentation Manufacturer Settings Parameters Specifications Processes Channels Instruments Addendum

used by

element

InstrumentType/Instruments/Location

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInstrumentChannelName		./Channels/Channel	@VendorName

annotation

documentation

Defines a generic instrument

element
InstrumentBase

diagram


properties

abstract

true

used by

element

Instrumentation/InstrumentSet

element
LinkReference

diagram

used by

element

Channel

annotation

documentation

A reference to a named DataLink.

element

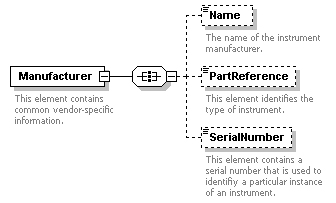

Manufacturer

diagram


properties

content

complex

children

Name PartReference SerialNumber

used by

complexType

InstrumentType

annotation

documentation

This element contains common vendor-specific information.

documentation

This element contains common vendor-specific information.

element
Manufacturer/Name

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The name of the instrument manufacturer.

element
Manufacturer/PartReference

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element identifies the type of instrument.

element
Manufacturer/SerialNumber

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains a serial number that is used to identifiy a particular instance of an instrument.

element
ParameterReference

diagram


type

extension of ParameterReferenceType

properties

content

complex

used by

elements

Channel/Parameters ChannelGroup/Parameters Parsers/Parser/Parameters Processes/Process/Parameters InstrumentType/Parameters

attributes

Name	Type	Use	Default	Fixed	annotation
VendorName	xs:string	required
Orientation	derived by: xs:string	optional	Read

annotation

documentation

A refrence tro a named Parameter

attribute
ParameterReference/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
ParameterReference/@Orientation

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

element
Parsers

diagram


properties

content

complex

children

Parser

annotation

documentation

This element is used to define any parsers on the channel

element

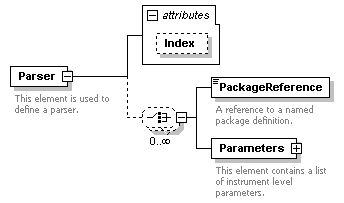

Parsers/Parser

diagram


properties

isRef	0
content	complex

children

PackageReference Parameters

attributes

Name	Type	Use	Default	Fixed	annotation
Index	xs:unsignedInt

annotation

documentation

This element is used to define a parser.

attribute
Parsers/Parser/@Index

type

xs:unsignedInt

properties

isRef

element
Parsers/Parser/PackageReference

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

A reference to a named package definition.

element
Parsers/Parser/Parameters

diagram


properties

isRef	0
content	complex

children

used by

element

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

This element contains a list of instrument level parameters.

element
Parsers/Parser/Parameters/Parameter

diagram


type

extension of ParameterType

properties

isRef	0
content	complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	required
VendorName	xs:string	required
Direction	derived by: xs:string	optional	Read
Enabled	xs:boolean	optional	true

annotation

documentation

This element defines an instrument level parameter

attribute
Parsers/Parser/Parameters/Parameter/@Name

type

xs:string

properties

isRef	0
use	required

attribute
Parsers/Parser/Parameters/Parameter/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
Parsers/Parser/Parameters/Parameter/@Direction

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

attribute
Parsers/Parser/Parameters/Parameter/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element
Processes

diagram


properties

content

complex

children

Process

used by

elements	Channel ChannelGroup
complexType	InstrumentType

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueProcessVendorName		./Process	@VendorName
unique	UniquePackageReference		./Process/PackageReference	.

annotation

documentation

This element is used to define any processes

element
Processes/Process

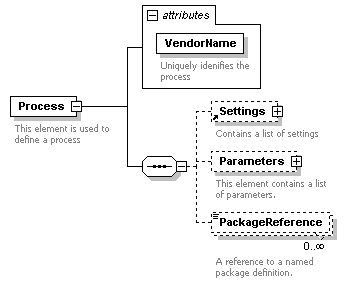

diagram


properties

isRef	0
content	complex

children

Settings Parameters PackageReference

attributes

Name

Type

Use

Default

Fixed

annotation

VendorName

derived by: xs:string

required

documentation

Uniquely idenifies the process

annotation

documentation

This element is used to define a process

attribute
Processes/Process/@VendorName

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

annotation

documentation

Uniquely idenifies the process

element
Processes/Process/Parameters

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

element

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

This element contains a list of parameters.

element
Processes/Process/Parameters/Parameter

diagram


type

extension of ParameterType

properties

isRef	0
content	complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	required
VendorName	xs:string	required
Orientation	derived by: xs:string	optional	Read
Enabled	xs:boolean	optional	true

annotation

documentation

This element defines an instrument level parameter

attribute
Processes/Process/Parameters/Parameter/@Name

type

xs:string

properties

isRef	0
use	required

attribute
Processes/Process/Parameters/Parameter/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
Processes/Process/Parameters/Parameter/@Orientation

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

attribute
Processes/Process/Parameters/Parameter/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element
Processes/Process/PackageReference

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

annotation

documentation

A reference to a named package definition.

element

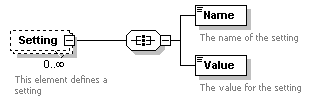

Setting

diagram


properties

content

complex

children

used by

element

Settings

annotation

documentation

This element contains a setting

element
Setting/Name

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The name of the setting

element
Setting/Value

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The value for the setting

element
Settings

diagram


properties

content

complex

children

used by

elements	Channel ChannelGroup Processes/Process
complexType	InstrumentType

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueSettingName		./Setting	Name

annotation

documentation

Contains a list of settings

element
Specification

diagram


properties

content

complex

children

Documentation Manufacturer Settings Parameters Specifications Processes Channels Instruments Addendum

used by

element

Specifications

annotation

documentation

This element contains an specification

element
Specification/Name

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The name of the specification

element
Specification/Value

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The value for the specification

element
Specifications

diagram


properties

content

complex

children

Specification

used by

elements	Channel ChannelGroup
complexType	InstrumentType

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueSpecificationName		./Specification	Name

annotation

documentation

Ths section contains a list of specifications for the instrument.

complexType
InstrumentType

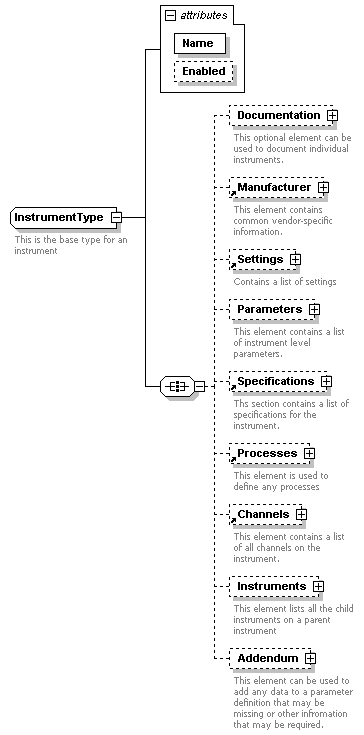

diagram


children

used by

element

Instrument

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for an instrument

attribute
InstrumentType/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

attribute
InstrumentType/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element
InstrumentType/Documentation

diagram


type

SecurityLevel CreatedBy CreatedDate LastUpdated ShortDescription LongDescription RevisionNumber References

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This optional element can be used to document individual instruments.

element
InstrumentType/Parameters

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

element

Documentation ParameterUnitReference BaseUnit SizeInBits DataFormat RangeMaximum RangeMinimum ShortLabel LongLabel Direction Enumerations AlgorithmReference Content Addendum

annotation

documentation

This element contains a list of instrument level parameters.

element
InstrumentType/Parameters/Parameter

diagram


type

extension of ParameterType

properties

isRef	0
content	complex

children

used by

element	Parameters/ParameterSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
VendorName	xs:string	required
Orientation	derived by: xs:string	optional	Read
Name	xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueParameterVendorName		.	@VendorName

annotation

documentation

This element defines an instrument level parameter

attribute
InstrumentType/Parameters/Parameter/@VendorName

type

xs:string

properties

isRef	0
use	required

attribute
InstrumentType/Parameters/Parameter/@Orientation

type

restriction of xs:string

properties

isRef	0
default	Read
use	optional

facets

enumeration	Read
enumeration	Write

attribute
InstrumentType/Parameters/Parameter/@Name

type

xs:string

properties

isRef	0
use	required

attribute
InstrumentType/Parameters/Parameter/@Enabled

type

xs:boolean

properties

isRef	0
default	true
use	optional

element
InstrumentType/Instruments

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueLocationNames		./Location	@Name

annotation

documentation

This element lists all the child instruments on a parent instrument

element
InstrumentType/Instruments/Location

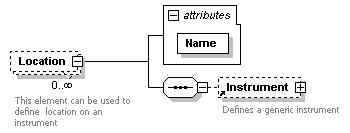

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Instrument

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element can be used to define location on an instrument

attribute
InstrumentType/Instruments/Location/@Name

type

restriction of xs:string

properties

isRef	0
use	required

facets

minLength

element
InstrumentType/Addendum

diagram


type

AddendumType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

used by

complexType

attributes

Name

Type

Use

Default

Fixed

annotation

documentation

This element can be used to add any data to a parameter definition that may be missing or other infromation that may be required.

complexType

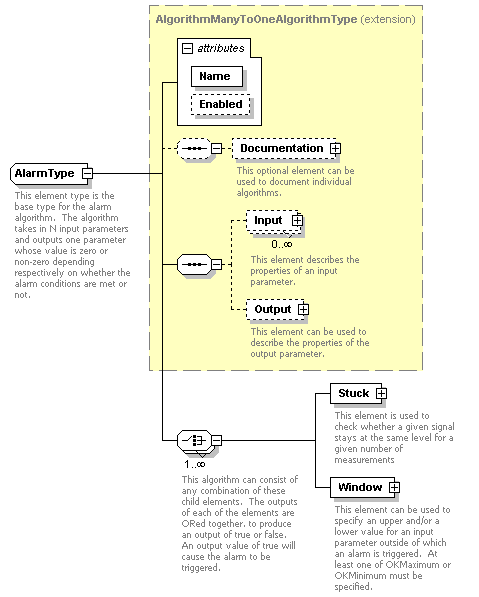

AlarmType

diagram


type

InParameter OKMaximum OKMinimum

properties

base	AlgorithmManyToOneAlgorithmType

children

Documentation Input Output Stuck Window

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the alarm algorithm. The algorithm takes in N input parameters and outputs one parameter whose value is zero or non-zero depending respectively on whether the alarm conditions are met or not.

element

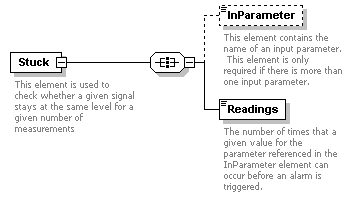

AlarmType/Stuck

diagram


properties

isRef	0
content	complex

children

InParameter Readings

annotation

documentation

This element is used to check whether a given signal stays at the same level for a given number of measurements

element
AlarmType/Stuck/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of an input parameter. This element is only required if there is more than one input parameter.

element
AlarmType/Stuck/Readings

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

The number of times that a given value for the parameter referenced in the InParameter element can occur before an alarm is triggered.

element
AlarmType/Window

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element can be used to specify an upper and/or a lower value for an input parameter outside of which an alarm is triggered. At least one of OKMaximum or OKMinimum must be specified.

element
AlarmType/Window/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of an input parameter. This element is only required if there is more than one input parameter.

element
AlarmType/Window/OKMaximum

diagram

type

xs:float

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The maximum value of an input parameter that can occur before the alarm is triggered

element
AlarmType/Window/OKMinimum

diagram

type

xs:float

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The minimum value of an input parameter that can occur before the alarm is triggered.

complexType
Bit-EnumerationsType

diagram


type

extension of AlgorithmType

properties

base	AlgorithmType

children

Documentation Enumerations

used by

element

Bit-Enumerations

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the enumeration algorithm. The algorithm associates a sequence of unique bits with a description.

element
Bit-EnumerationsType/Enumerations

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Enumeration

used by

complexTypes

Documentation Input Output MapInverse MapTrue MapFixed

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueAlgorithmBinanryValue		./Enumeration	@BinaryValue

annotation

documentation

This element is used to list bit values and their meanings

element
Bit-EnumerationsType/Enumerations/Enumeration

diagram


type

extension of xs:string

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

attributes

Name

Type

Use

Default

Fixed

annotation

BinaryValue

derived by: xs:string

required

documentation

A binary value

annotation

documentation

The contents of this element describe the meaning of the value contained in the “BinaryValue” attribute.

attribute
Bit-EnumerationsType/Enumerations/Enumeration/@BinaryValue

type

restriction of xs:string

properties

isRef	0
use	required

facets

pattern

[10]+|Other

annotation

documentation

A binary value

complexType
BitmapType

diagram


type

extension of AlgorithmManyToManyAlgorithmType

properties

base	AlgorithmManyToManyAlgorithmType

children

used by

element

Bitmap

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the bitmap algorithm. This algorithm is used for bit manipulation within parameters. It can be used to map N input parameters to M output parameters where M is less than or equal to N.

element
BitmapType/MapInverse

diagram


properties

isRef	0
content	complex

children

InParameter InStartIndex InEndIndex OutParameter OutStartIndex OutEndIndex

annotation

documentation

This element is used to map and invert all bits or a subset of bits from an input parameter to an output parameter.

element
BitmapType/MapInverse/InParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
BitmapType/MapInverse/InStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the input parameter to be inverted.

element
BitmapType/MapInverse/InEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the input parameter to be inverted.

element
BitmapType/MapInverse/OutParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter output list of the algorithm.

element
BitmapType/MapInverse/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be inverted.

element
BitmapType/MapInverse/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be inverted.

element
BitmapType/MapTrue

diagram


properties

isRef	0
content	complex

children

InParameter InStartIndex InEndIndex OutParameter OutStartIndex OutEndIndex

annotation

documentation

This element is used to map all bits or a subset of bits from an input parameter to an output parameter.

element
BitmapType/MapTrue/InParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
BitmapType/MapTrue/InStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the input parameter to be copied

element
BitmapType/MapTrue/InEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the input parameter to be copied

element
BitmapType/MapTrue/OutParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter output list of the algorithm.

element
BitmapType/MapTrue/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be overwritten.

element
BitmapType/MapTrue/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be overwritten.

element
BitmapType/MapFixed

diagram


properties

isRef	0
content	complex

children

OutParameter OutStartIndex OutEndIndex FixedValue

annotation

documentation

This element is used to replace all bits or a subset of bits in an input parameter to the value contained in the FixedValue element in order to generate an output parameter.

element
BitmapType/MapFixed/OutParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter output list of the algorithm.

element
BitmapType/MapFixed/OutStartIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the first bit in the output parameter to be set to the value contained in the FixedValue element.

element
BitmapType/MapFixed/OutEndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the output parameter to be set to the value contained in the FixedValue element.

element
BitmapType/MapFixed/FixedValue

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[10]+

annotation

documentation

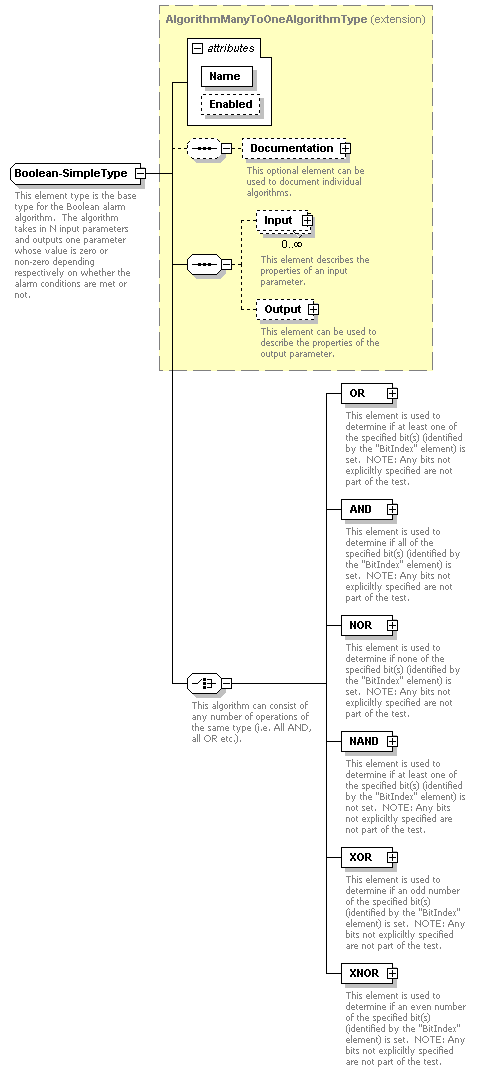

complexType
Boolean-SimpleType

diagram


type

properties

base	AlgorithmManyToOneAlgorithmType

children

Documentation Input Output OR AND NOR NAND XOR XNOR

used by

element

Boolean-Simple

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

element
Boolean-SimpleType/OR

diagram


properties

isRef	0
content	complex

children

InParameter BitIndex Invert

annotation

documentation

This element is used to determine if at least one of the specified bit(s) (identified by the “BitIndex” element) is set. NOTE: Any bits not expliciltly specified are not part of the test.

element
Boolean-SimpleType/OR/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Boolean-SimpleType/OR/Input/InParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/OR/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/OR/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

This value determines the bit state (i.e. High/Low, 1/0) that is interpreted as “true” by the algorithm. If the value is “Yes” then a bit value of “0” is interpreted as true. The default value is “No”. The test is applied to the bit identified by the “BitIndex” element of the input parameter referenced in the “InParameter” element.

element
Boolean-SimpleType/AND

diagram


properties

isRef	0
content	complex

children

InParameter BitIndex Invert

annotation

documentation

This element is used to determine if all of the specified bit(s) (identified by the “BitIndex” element) is set. NOTE: Any bits not expliciltly specified are not part of the test.

element

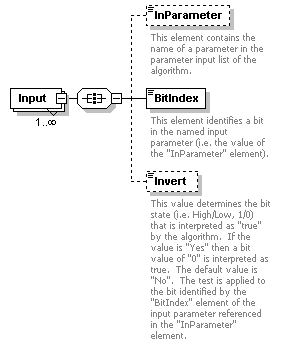

Boolean-SimpleType/AND/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Boolean-SimpleType/AND/Input/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/AND/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/AND/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

element
Boolean-SimpleType/NOR

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element is used to determine if none of the specified bit(s) (identified by the “BitIndex” element) is set. NOTE: Any bits not expliciltly specified are not part of the test.

element

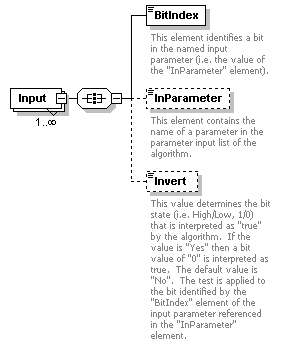

Boolean-SimpleType/NOR/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Boolean-SimpleType/NOR/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/NOR/Input/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/NOR/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

element
Boolean-SimpleType/NAND

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element is used to determine if at least one of the specified bit(s) (identified by the “BitIndex” element) is not set. NOTE: Any bits not expliciltly specified are not part of the test.

element
Boolean-SimpleType/NAND/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Boolean-SimpleType/NAND/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/NAND/Input/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/NAND/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

element
Boolean-SimpleType/XOR

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element is used to determine if an odd number of the specified bit(s) (identified by the “BitIndex” element) is set. NOTE: Any bits not expliciltly specified are not part of the test.

element
Boolean-SimpleType/XOR/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Boolean-SimpleType/XOR/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/XOR/Input/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/XOR/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

element
Boolean-SimpleType/XNOR

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element is used to determine if an even number of the specified bit(s) (identified by the “BitIndex” element) is set. NOTE: Any bits not expliciltly specified are not part of the test.

element
Boolean-SimpleType/XNOR/Input

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Documentation Input Output Internal

element
Boolean-SimpleType/XNOR/Input/BitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element identifies a bit in the named input parameter (i.e. the value of the “InParameter” element).

element
Boolean-SimpleType/XNOR/Input/InParameter

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the name of a parameter in the parameter input list of the algorithm.

element
Boolean-SimpleType/XNOR/Input/Invert

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

complexType
Combined-AlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

used by

element

Combined-Algorithm

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

element
Combined-AlgorithmType/Input

diagram


type

extension of InputType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

ParameterReference Destination

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element can be used to describe the properties of an input parameter.

element

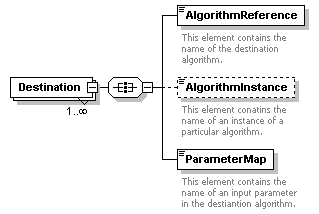

Combined-AlgorithmType/Input/Destination

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Combined-AlgorithmType/Input/Destination/AlgorithmReference

diagram

properties

isRef

used by

complexTypes

ParameterReference Source

annotation

documentation

This element contains the name of the destination algorithm.

element
Combined-AlgorithmType/Input/Destination/AlgorithmInstance

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element conatins the name of an instance of a particular algorithm.

element
Combined-AlgorithmType/Input/Destination/ParameterMap

diagram

properties

isRef

annotation

documentation

This element contains the name of an input parameter in the destiantion algorithm.

element
Combined-AlgorithmType/Output

diagram


type

extension of OutputType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element describes the properties of an output parameter.

element
Combined-AlgorithmType/Output/Source

diagram


properties

isRef	0
content	complex

children

element
Combined-AlgorithmType/Output/Source/AlgorithmReference

diagram

properties

isRef

used by

complexTypes

annotation

documentation

This element contains the name of the algorithm from which the input parameter is sourced.

element
Combined-AlgorithmType/Output/Source/AlgorithmInstance

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element conatins the name of an instance of a particular algorithm.

element
Combined-AlgorithmType/Output/Source/ParameterMap

diagram

properties

isRef

annotation

documentation

This element contains the name of an output parameter in the algorithm from which the data is sourced.

element
Combined-AlgorithmType/Internal

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Source Destination

element
Combined-AlgorithmType/Internal/Source

diagram


properties

isRef	0
content	complex

children

element
Combined-AlgorithmType/Internal/Source/AlgorithmReference

diagram

properties

isRef

used by

complexTypes

annotation

documentation

This element contains the name of the algorithm from which the input parameter is sourced.

element
Combined-AlgorithmType/Internal/Source/AlgorithmInstance

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element conatins the name of an instance of a particular algorithm.

element
Combined-AlgorithmType/Internal/Source/ParameterMap

diagram

properties

isRef

annotation

documentation

This element contains the name of an output parameter in the algorithm from which the data is sourced.

element
Combined-AlgorithmType/Internal/Destination

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

element
Combined-AlgorithmType/Internal/Destination/AlgorithmReference

diagram

properties

isRef

used by

complexTypes

Documentation Input Output Description

annotation

documentation

This element contains the name of the destination algorithm.

element
Combined-AlgorithmType/Internal/Destination/AlgorithmInstance

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element conatins the name of an instance of a particualr algorithm.

element
Combined-AlgorithmType/Internal/Destination/ParameterMap

diagram

properties

isRef

annotation

documentation

This element contains the name of an input parameter in the destiantion algorithm.

complexType

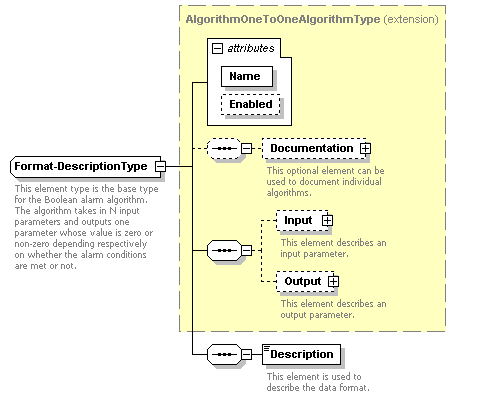

Format-DescriptionType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

used by

element

Format-Description

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

element
Format-DescriptionType/Description

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

minLength

annotation

documentation

This element is used to describe the data format.

complexType
MathMLType

diagram


type

extension of AlgorithmManyToManyAlgorithmType

properties

base	AlgorithmManyToManyAlgorithmType

children

used by

element

MathML-1.0

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the generic MathML algorithm. It can be used to map N input parameters to M output parameters.

complexType
NSamplesInOneSampleOut-AmplitudeType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

NSamplesInOneSampleOut-Amplitude

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Base type for the algorithm used to return the value for amplitude given “N” samples of input parameters.

element
NSamplesInOneSampleOut-AmplitudeType/NumberOfSamples

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

The number of input samples.

complexType
NSamplesInOneSampleOut-AverageType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

NSamplesInOneSampleOut-Average

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Base type for the algorithm used to return the averge of “N” input samples.

element
NSamplesInOneSampleOut-AverageType/NumberOfSamples

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

The number of input samples.

complexType
NSamplesInOneSampleOut-MaximumType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

NSamplesInOneSampleOut-Maximum

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Base type for the algorithm used to return the maximum of “N” samples of input parameters.

element
NSamplesInOneSampleOut-MaximumType/NumberOfSamples

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

The number of input samples.

complexType
NSamplesInOneSampleOut-MinimumType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

NSamplesInOneSampleOut-Minimum

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Base type for the algorithm used to return the minimum of “N” samples of Input parameters.

element
NSamplesInOneSampleOut-MinimumType/NumberOfSamples

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

The number of input samples.

complexType
NSamplesInOneSampleOut-RMSType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

NSamplesInOneSampleOut-RMS

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

Base type for the algorithm used to calculate the RMS value of “N” samples of input parameters.

element
NSamplesInOneSampleOut-RMSType/NumberOfSamples

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

The number of input samples.

complexType

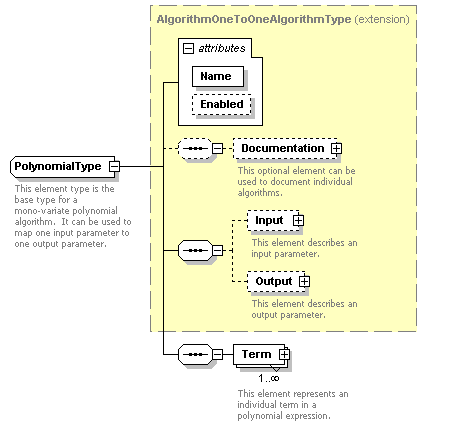

PolynomialType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

Documentation Input Output Term

used by

element

Polynomial

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for a mono-variate polynomial algorithm. It can be used to map one input parameter to one output parameter.

element
PolynomialType/Term

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Coefficient Exponent

annotation

documentation

This element represents an individual term in a polynomial expression.

element
PolynomialType/Term/Coefficient

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

This element contains the coefficient associated with an exponent.

element
PolynomialType/Term/Exponent

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

This element contains the exponent associated with an coefficient.

complexType
TableType

diagram


type

extension of AlgorithmOneToOneAlgorithmType

properties

base	AlgorithmOneToOneAlgorithmType

children

Documentation Input Output Entry

used by

element

Table

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for the table algorithm.

element
TableType/Entry

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Input Output

annotation

documentation

This elements represents an individual entry in a table.

element
TableType/Entry/Input

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

This element contains the input value that is to be associated with the output value.

element
TableType/Entry/Output

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

This element contains the output value that is to be associated with the input value.

complexType
URL-Defined-AlgorithmType

diagram


type

extension of AlgorithmManyToManyAlgorithmType

properties

base	AlgorithmManyToManyAlgorithmType

children

Documentation Input Output URL

used by

element

URL-Defined-Algorithm

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

element
URL-Defined-AlgorithmType/URL

diagram

type

xs:anyURI

properties

isRef	0
content	simple

annotation

documentation

This element can contain a URL to software that encapsulates and implements the algorithm.

complexType

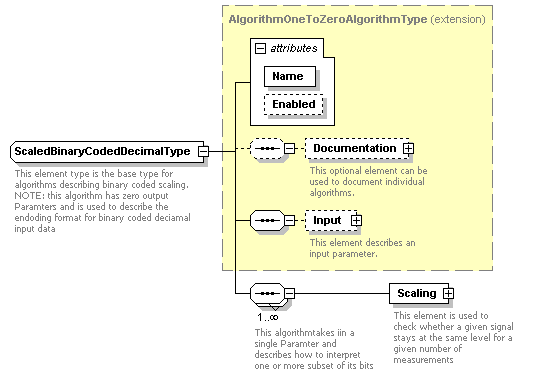

ScaledBinaryCodedDecimalType

diagram


type

extension of AlgorithmOneToZeroAlgorithmType

properties

base	AlgorithmOneToZeroAlgorithmType

children

Documentation Input Scaling

used by

element

ScaledBinaryCodedDecimal

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for algorithms describing binary coded scaling. NOTE: this algorithm has zero output Paramters and is used to describe the endoding format for binary coded deciamal input data

element

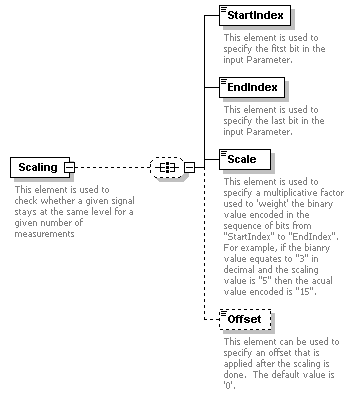

ScaledBinaryCodedDecimalType/Scaling

diagram


properties

isRef	0
content	complex

children

StartIndex EndIndex Scale Offset

annotation

documentation

This element is used to check whether a given signal stays at the same level for a given number of measurements

element
ScaledBinaryCodedDecimalType/Scaling/StartIndex

diagram

type

restriction of xs:int

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element is used to specify the fitst bit in the input Parameter.

element
ScaledBinaryCodedDecimalType/Scaling/EndIndex

diagram

type

restriction of xs:int

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element is used to specify the last bit in the input Parameter.

element
ScaledBinaryCodedDecimalType/Scaling/Scale

diagram

type

xs:double

properties

isRef	0
content	simple
default	1

used by

element	Parameters/ParameterUnitSet/ParameterUnit
complexType	PackageSubParameterType

annotation

documentation

This element is used to specify a multiplicative factor used to ‘weight’ the binary value encoded in the sequence of bits from “StartIndex” to “EndIndex”. For example, if the bianry value equates to “3” in decimal and the scaling value is “5” then the acual value encoded is “15”.

element
ScaledBinaryCodedDecimalType/Scaling/Offset

diagram

type

xs:double

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	0

used by

element	Parameters/ParameterUnitSet/ParameterUnit
complexType	PackageSubParameterType

annotation

documentation

This element can be used to specify an offset that is applied after the scaling is done. The default value is ‘0’.

complexType

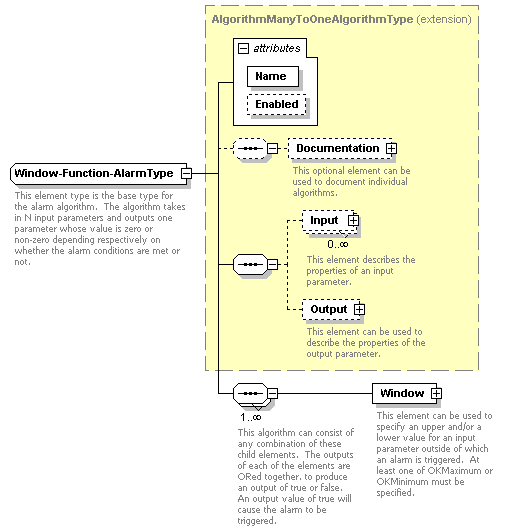

Window-Function-AlarmType

diagram


type

Documentation Input Output Window

properties

base	AlgorithmManyToOneAlgorithmType

children

used by

element

Window-Function-Alarm

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

element
Window-Function-AlarmType/Window

diagram


properties

isRef	0
content	complex

children

InParameter OKMaximum OKMinimum StartIndex EndIndex

annotation

documentation

This element can be used to specify an upper and/or a lower value for an input parameter outside of which an alarm is triggered. At least one of OKMaximum or OKMinimum must be specified.

element
Window-Function-AlarmType/Window/InParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of an input parameter.

element
Window-Function-AlarmType/Window/OKMaximum

diagram

type

xs:float

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The maximum value of an input parameter that can occur before the alarm is triggered

element
Window-Function-AlarmType/Window/OKMinimum

diagram

type

xs:float

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The minimum value of an input parameter that can occur before the alarm is triggered.

element
Window-Function-AlarmType/Window/StartIndex

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	0

facets

minInclusive

annotation

documentation

The location of the first bit in the range of bits in the input parameter. NOTE: if this element is omitted, then this defaults to the first bit (i.e. bit ‘0’).

element
Window-Function-AlarmType/Window/EndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The location of the last bit in the range of bits in the input parameter. NOTE: if this element is omitted, then this defaults to the last bit (i.e. the number of bits in the parameter minus ‘1”).

complexType
Stuck-AlarmType

diagram


type

Documentation Input Output Stuck

properties

base	AlgorithmManyToOneAlgorithmType

children

used by

element

Stuck-Alarm

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

element
Stuck-AlarmType/Stuck

diagram


properties

isRef	0
content	complex

children

InParameter Readings StartIndex EndIndex

annotation

documentation

This element is used to check whether a given signal stays at the same level for a given number of measurements

element
Stuck-AlarmType/Stuck/InParameter

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the name of an input parameter.

element
Stuck-AlarmType/Stuck/Readings

diagram

type

xs:float

properties

isRef	0
content	simple

annotation

documentation

The number of times that a given value for the parameter referenced in the InParameter element can occur before an alarm is triggered.

element
Stuck-AlarmType/Stuck/StartIndex

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	0

facets

minInclusive

annotation

documentation

The location of the first bit in the range of bits in the input parameter. NOTE: if this element is omitted, then this defaults to the first bit (i.e. bit ‘0’).

element
Stuck-AlarmType/Stuck/EndIndex

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

element
Label

diagram

type

restriction of xs:decimal

properties

content

simple

used by

elements

ARINC-429-BlockType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification

facets

minInclusive	0
maxInclusive	255

annotation

documentation

This label is used to identify a particular type of data as defined by the ARINC-429 specification.

element
SSM

diagram

type

restriction of xs:string

properties

content

simple

used by

elements

ARINC-429-BlockType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification

facets

enumeration	00
enumeration	01
enumeration	10
enumeration	11

annotation

documentation

The Sign/Status Matrix. This element includes information on how to interpret the data content of an ARINC-429 message. Such data could be H/W equipment condition, operational mode, data validity and so on. NOTE: The interpretation of the SSM value is dependent on the data format. Some manufacturers also use non-standard data formats which use bits that are normally reserved for the SSM. In these cases the SSM element is not included.

complexType
ARINC-429-BlockType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

ARINC-429-Block

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package defines a single 32-bit ARINC-429 message.

element

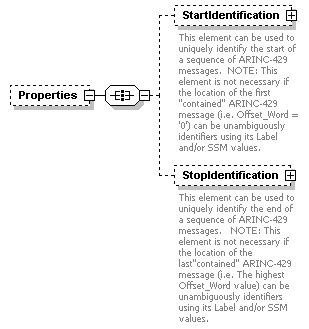

ARINC-429-BlockType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

StartIdentification StopIdentification

element
ARINC-429-BlockType/Properties/StartIdentification

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Label SSM Patterns

annotation

documentation

This element can be used to uniquely identify the start of a sequence of ARINC-429 messages. NOTE: This element is not necessary if the location of the first “contained” ARINC-429 message (i.e. Offset_Word = ‘0’) can be unambiguously identifiers using its Label and/or SSM values.

element
ARINC-429-BlockType/Properties/StopIdentification

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Label SSM Patterns

annotation

documentation

This element can be used to uniquely identify the end of a sequence of ARINC-429 messages. NOTE: This element is not necessary if the location of the last”contained” ARINC-429 message (i.e. The highest Offset_Word value) can be unambiguously identifiers using its Label and/or SSM values.

element
ARINC-429-BlockType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	ARINC-429BlockUniqueParameterName		Parameter	@Name

annotation

documentation

This element defines the content of an ARINC-429 message.

element
ARINC-429-BlockType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
ARINC-429-BlockType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Bits Occurrences

annotation

documentation

The location of a parameter in a package.

element
ARINC-429-BlockType/Content/Mapping/Location/Offset_Bits

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

used by

elements	CAISType/Content/Mapping/Location CAN-Bus-MessageType/Content/Mapping/Location CCDLType/Content/Mapping/Location FCS-MessageType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Network-TransportType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location
complexType	FrameLocationType

facets

minInclusive

annotation

documentation

The location of the parameter or ARINC-Word into the ARINC-Block. 0 represents the first bit in the block

complexType
ARINC-429-WordType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

ARINC-429-Word

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package defines a single 32-bit ARINC-429 message.

element

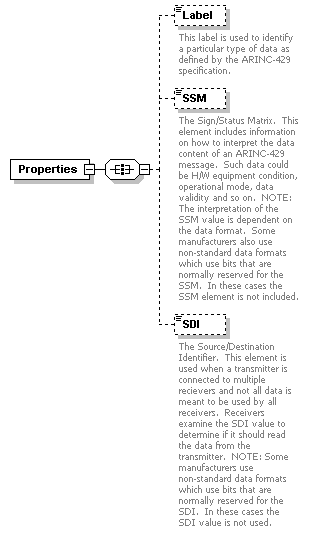

ARINC-429-WordType/Properties

diagram


properties

isRef	0
content	complex

children

Label SSM SDI

element
ARINC-429-WordType/Properties/Label

diagram

type

restriction of xs:decimal

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

used by

elements

ARINC-429-BlockType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification

facets

minInclusive	0
maxInclusive	255

annotation

documentation

This label is used to identify a particular type of data as defined by the ARINC-429 specification.

element
ARINC-429-WordType/Properties/SSM

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

used by

elements

ARINC-429-BlockType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification

facets

enumeration	00
enumeration	01
enumeration	10
enumeration	11

annotation

documentation

element
ARINC-429-WordType/Properties/SDI

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	00
enumeration	01
enumeration	10
enumeration	11
enumeration	LineDependant

annotation

documentation

The Source/Destination Identifier. This element is used when a transmitter is connected to multiple recievers and not all data is meant to be used by all receivers. Receivers examine the SDI value to determine if it should read the data from the transmitter. NOTE: Some manufacturers use non-standard data formats which use bits that are normally reserved for the SDI. In these cases the SDI value is not used.

element
ARINC-429-WordType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	ARINC-429WordUniqueParameterName		Parameter	@Name

annotation

documentation

This element defines the content of an ARINC-429 message.

element

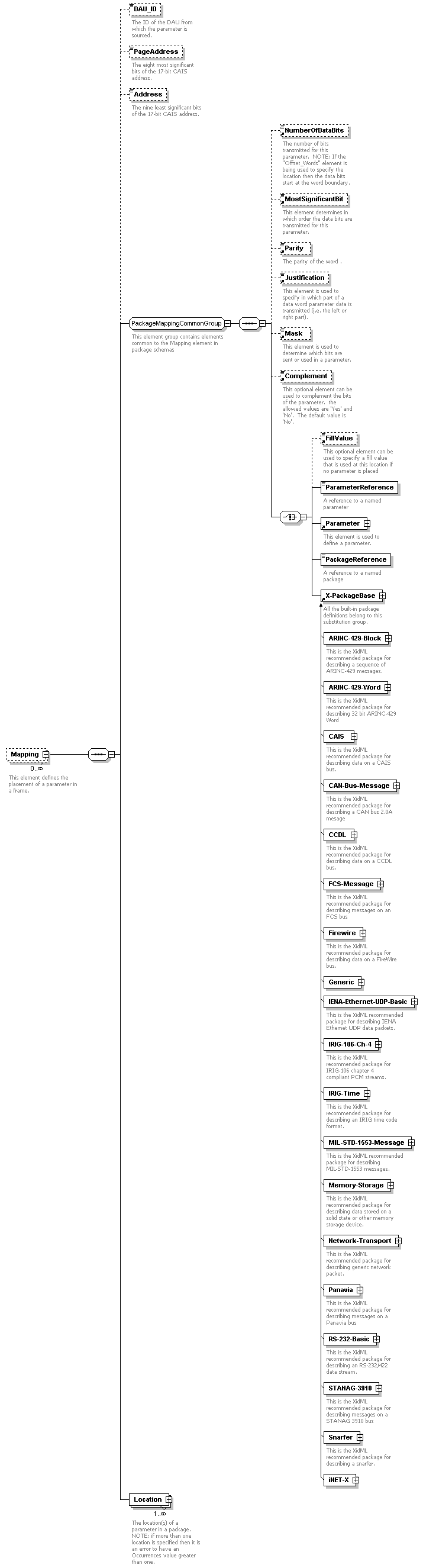

ARINC-429-WordType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element

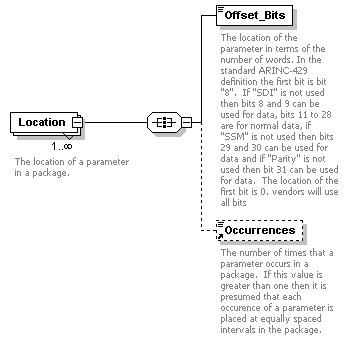

ARINC-429-WordType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Bits Occurrences

annotation

documentation

The location of a parameter in a package.

element
ARINC-429-WordType/Content/Mapping/Location/Offset_Bits

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

used by

elements	CAISType/Content/Mapping/Location CAN-Bus-MessageType/Content/Mapping/Location CCDLType/Content/Mapping/Location FCS-MessageType/Content/Mapping/Location IENA-Ethernet-UDP-BasicType/Content/Mapping/Location MIL-STD-1553ContentType/Mapping/Location Network-TransportType/Content/Mapping/Location STANAG-3910-MessageType/Content/Mapping/Location GenericPackageType/Content/Mapping/Location
complexType	FrameLocationType

facets

minInclusive	0
maxInclusive	31

annotation

documentation

The location of the parameter in terms of the number of words. In the standard ARINC-429 definition the first bit is bit “8”. If “SDI” is not used then bits 8 and 9 can be used for data, bits 11 to 28 are for normal data, if “SSM” is not used then bits 29 and 30 can be used for data and if “Parity” is not used then bit 31 can be used for data. The location of the first bit is 0. vendors will use all bits

complexType
CAISType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

used by

element

CAIS

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

element
CAISType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

DAU_ID PageAddress Address NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCAISParameterName		./Parameter	@Name

element
CAISType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
CAISType/Content/Mapping/DAU_ID

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	1
maxInclusive	60

annotation

documentation

The ID of the DAU from which the parameter is sourced.

element
CAISType/Content/Mapping/PageAddress

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	255

annotation

documentation

The eight most significant bits of the 17-bit CAIS address.

element
CAISType/Content/Mapping/Address

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	511

annotation

documentation

The nine least significant bits of the 17-bit CAIS address.

element
CAISType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_uS Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
CAN-Bus-MessageType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

CAN-Bus-Message

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package represents a CAN bus message.

element

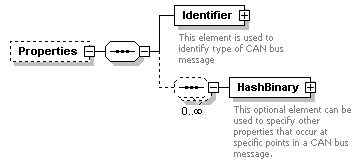

CAN-Bus-MessageType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Identifier HashBinary

element
CAN-Bus-MessageType/Properties/Identifier

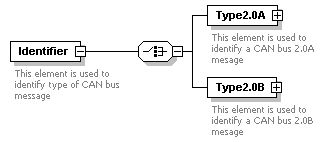

diagram


properties

isRef	0
content	complex

children

Type2.0A Type2.0B

annotation

documentation

This element is used to identify type of CAN bus message

element
CAN-Bus-MessageType/Properties/Identifier/Type2.0A

diagram


properties

isRef	0
content	complex

children

Value

annotation

documentation

This element is used to identify a CAN bus 2.0A mesage

element
CAN-Bus-MessageType/Properties/Identifier/Type2.0A/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

minLength	11
maxLength	11
pattern	[1,0,*]+

annotation

documentation

An eleven bit binary value used to identify the message

element
CAN-Bus-MessageType/Properties/Identifier/Type2.0B

diagram


properties

isRef	0
content	complex

children

Value

annotation

documentation

This element is used to identify a CAN bus 2.0B mesage

element
CAN-Bus-MessageType/Properties/Identifier/Type2.0B/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

minLength	29
maxLength	29
pattern	[1,0,*]+

annotation

documentation

An 29 bit binary value used to identify the message

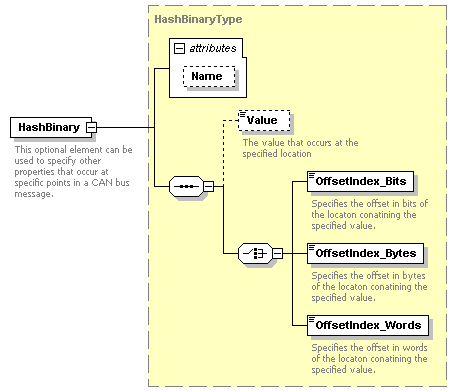

element
CAN-Bus-MessageType/Properties/HashBinary

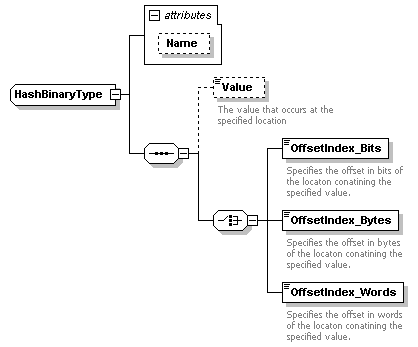

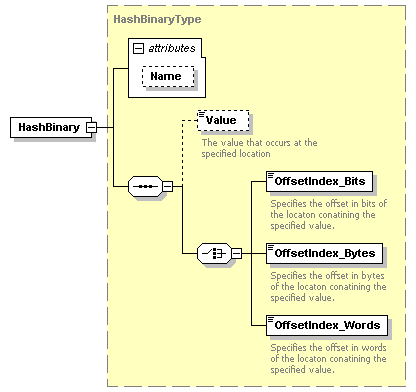

diagram


type

HashBinaryType

properties

isRef	0
content	complex

children

Value OffsetIndex_Bits OffsetIndex_Bytes OffsetIndex_Words

used by

elements

FirewireType/Properties Network-TransportType/Properties

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	optional

annotation

documentation

This optional element can be used to specify other properties that occur at specific points in a CAN bus message.

element
CAN-Bus-MessageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCANContentParameterName		./Parameter	@Name

element
CAN-Bus-MessageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
CAN-Bus-MessageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Bytes Offset_Bits Occurrences

annotation

documentation

The location of a parameter in a package.

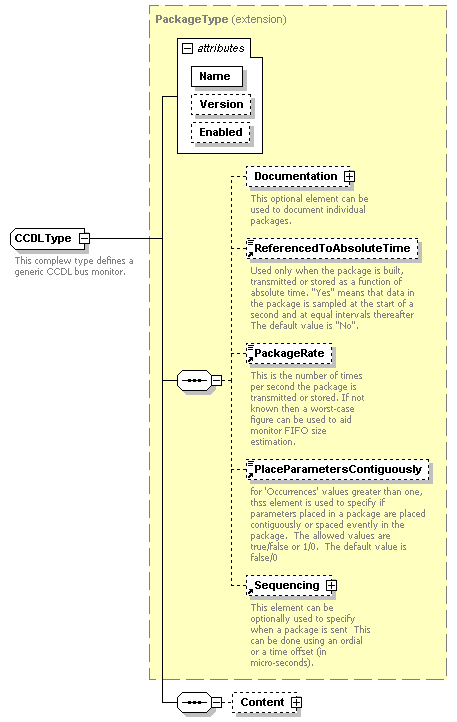

complexType
CCDLType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

used by

element

CCDL

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This complew type defines a generic CCDL bus monitor.

element
CCDLType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueCCDLParameterName		./Parameter	@Name

element
CCDLType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
CCDLType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurences value greater than one.

complexType
FCS-MessageType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

FCS-Message

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package represents one of ten MIL-STD-1553 messages.

element
FCS-MessageType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

ContentIdentifier

element

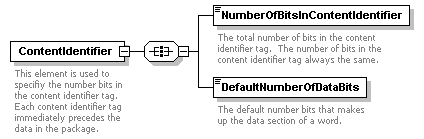

FCS-MessageType/Properties/ContentIdentifier

diagram


properties

isRef	0
content	complex

children

NumberOfBitsInContentIdentifier DefaultNumberOfDataBits

annotation

documentation

This element is used to specifiy the number bits in the content identifier tag. Each content identifier tag immediately precedes the data in the package.

element
FCS-MessageType/Properties/ContentIdentifier/NumberOfBitsInContentIdentifier

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The total number of bits in the content identifier tag. The number of bits in the content identifier tag always the same.

element
FCS-MessageType/Properties/ContentIdentifier/DefaultNumberOfDataBits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

used by

element

annotation

documentation

The default number bits that makes up the data section of a word.

element
FCS-MessageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

Tag NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueFCsContentParameterName		./Parameter	@Name

element
FCS-MessageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
FCS-MessageType/Content/Mapping/Tag

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

This element is used to specify the value that is used to identify the word. NOTE: it is presumed that data immediately follows this tag.

element
FCS-MessageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Words Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
FirewireType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

Firewire

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This complex type defines a generic FireWire bus monitor.

element
FirewireType/Properties

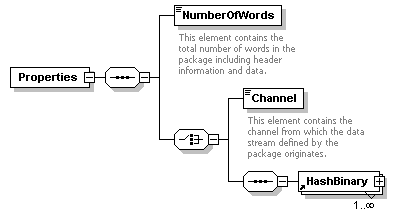

diagram


properties

isRef	0
content	complex

children

NumberOfWords Channel HashBinary

element
FirewireType/Properties/NumberOfWords

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element contains the total number of words in the package including header information and data.

element
FirewireType/Properties/Channel

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

used by

element

Channels

annotation

documentation

This element contains the channel from which the data stream defined by the package originates.

element
FirewireType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueFirewireParameterName		./Parameter	@Name

element
FirewireType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
FirewireType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Words Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurences value greater than one.

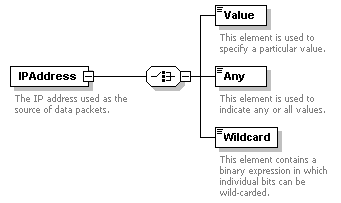

element
IPAddress

diagram

type

restriction of xs:string

properties

content	simple
default	000.000.000.000

used by

elements

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

facets

pattern

[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}

annotation

documentation

The IP address used as the source of data packets.

element

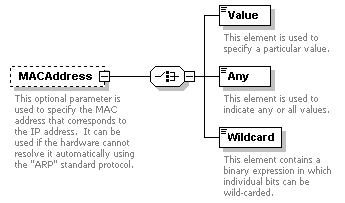

MACAddress

diagram

type

restriction of xs:string

properties

content	simple
default	00-00-00-00-00-00

used by

elements

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

facets

pattern

[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]

annotation

documentation

This optional parameter is used to specify the MAC address that corresponds to the IP address. It can be used if the hardware cannot resolve it automatically using the “ARP” standard protocol.

element

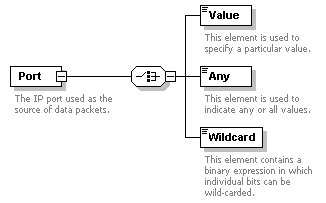

Port

diagram

type

restriction of xs:unsignedInt

properties

content

simple

used by

elements

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

facets

minInclusive	0
maxInclusive	65535

annotation

documentation

The IP port used as the source of data packets.

complexType
IENA-Ethernet-UDP-BasicType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

used by

element

IENA-Ethernet-UDP-Basic

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This complex type defines an IENA Ethernet UDP data packet.

element

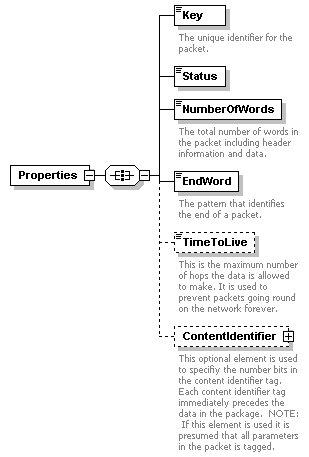

IENA-Ethernet-UDP-BasicType/Properties

diagram


properties

isRef	0
content	complex

children

Key Status NumberOfWords EndWord TimeToLive ContentIdentifier

element
IENA-Ethernet-UDP-BasicType/Properties/Key

diagram

type

restriction of xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

The unique identifier for the packet.

element
IENA-Ethernet-UDP-BasicType/Properties/Status

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

element
IENA-Ethernet-UDP-BasicType/Properties/NumberOfWords

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The total number of words in the packet including header information and data.

element
IENA-Ethernet-UDP-BasicType/Properties/EndWord

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

The pattern that identifies the end of a packet.

element
IENA-Ethernet-UDP-BasicType/Properties/TimeToLive

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	255

facets

minInclusive	0
maxInclusive	255

annotation

documentation

This is the maximum number of hops the data is allowed to make. It is used to prevent packets going round on the network forever.

element

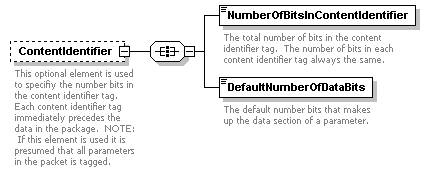

IENA-Ethernet-UDP-BasicType/Properties/ContentIdentifier

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

NumberOfBitsInContentIdentifier DefaultNumberOfDataBits

annotation

documentation

This optional element is used to specifiy the number bits in the content identifier tag. Each content identifier tag immediately precedes the data in the package. NOTE: If this element is used it is presumed that all parameters in the packet is tagged.

element
IENA-Ethernet-UDP-BasicType/Properties/ContentIdentifier/NumberOfBitsInContentIdentifier

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The total number of bits in the content identifier tag. The number of bits in each content identifier tag always the same.

element
IENA-Ethernet-UDP-BasicType/Properties/ContentIdentifier/DefaultNumberOfDataBits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

used by

element

annotation

documentation

The default number bits that makes up the data section of a parameter.

element

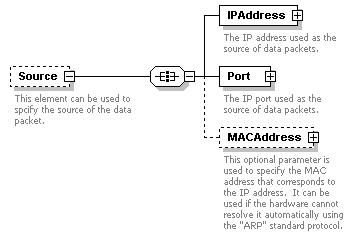

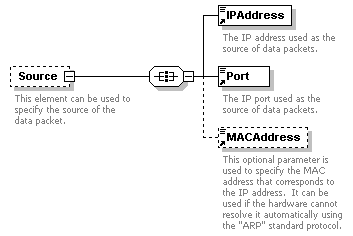

IENA-Ethernet-UDP-BasicType/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element can be used to specify the source of the data packet.

element

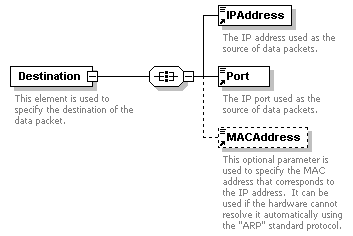

IENA-Ethernet-UDP-BasicType/Destination

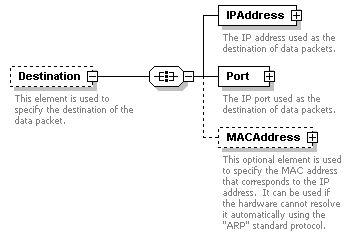

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element is used to specify the destination of the data packet.

element
IENA-Ethernet-UDP-BasicType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

ID Delay Tag NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueIENAEthernetUDPBasicParamName		./Parameter	@Name

element
IENA-Ethernet-UDP-BasicType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
IENA-Ethernet-UDP-BasicType/Content/Mapping/ID

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

A two byte parameter ID. This is used an identifier in mapping a placed parameter to a location in the packet.

element
IENA-Ethernet-UDP-BasicType/Content/Mapping/Delay

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

enumeration	Yes
enumeration	No

annotation

documentation

A two byte value that contains the difference, in microseconds, between the Key opening date and the parameter acquisition time

element
IENA-Ethernet-UDP-BasicType/Content/Mapping/Tag

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element is used to specify the value that is used to identify the parameter. If this element is included then the ‘ContentIdentifier’ element must be defined in the ‘Properties’ section. NOTE: it is presumed that data immediately follows this tag.

element

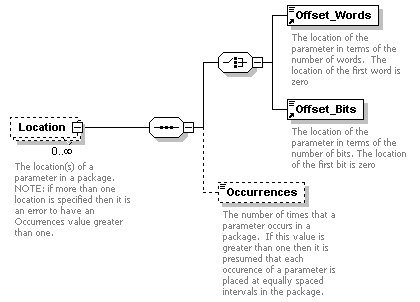

IENA-Ethernet-UDP-BasicType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Words Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

element
DclkPhase

diagram

type

restriction of xs:string

properties

content

simple

facets

enumeration	0
enumeration	90
enumeration	180
enumeration	270

annotation

documentation

The phase used between clock and data in the PCM frame.

element
DefaultDataBitsPerWord

diagram

type

xs:unsignedInt

properties

content

simple

annotation

documentation

This element is used to specify the default number of data bits per word.

element
FillPattern

diagram

type

xs:hexBinary

properties

content

simple

used by

complexType

FramePropertiesType

annotation

documentation

This value specifies the fill pattern used in the frame.

element
MinorFramesPerMajorFrame

diagram

type

xs:unsignedInt

properties

content

simple

annotation

documentation

This element is used to set the number of minor frames in a major frame.

element
PCMCode

diagram

type

restriction of xs:string

properties

content

simple

facets

enumeration	Bi-Phase-L
enumeration	Bi-Phase-M
enumeration	Bi-Phase-S
enumeration	NRZ-L
enumeration	NRZ-M
enumeration	NRZ-S
enumeration	RZ
enumeration	RNRZ-L-11
enumeration	RNRZ-L-13
enumeration	RNRZ-L-15
enumeration	RNRZ-L-17
enumeration	RNRZ-L-23
enumeration	RNRZ-M
enumeration	RNRZ-S
enumeration	DM-M
enumeration	DM-S
enumeration	M2-M
enumeration	M2-S

annotation

documentation

The PCM encoding used in the frame. NOTE: This element will be removed in the next version of the XidML schema. Please used the PCMCode element in the X-DataLink schema instead.

element
PCMPolarity

diagram

type

xs:boolean

properties

content

simple

annotation

documentation

The polarity used to transmit the PCM frame. A value of “True” means the polarity is inverted and normal otherwise.

element

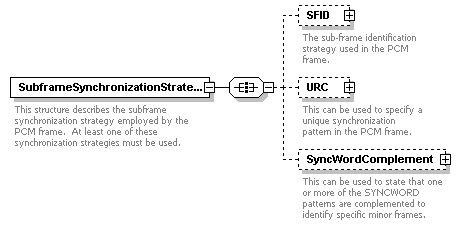

SubframeSynchronizationStrategy

diagram


properties

content

complex

children

SFID URC SyncWordComplement

used by

element

SynchronizationStrategy

annotation

documentation

This structure describes the subframe synchronization strategy employed by the PCM frame. At least one of these synchronization strategies must be used.

element
SubframeSynchronizationStrategy/SFID

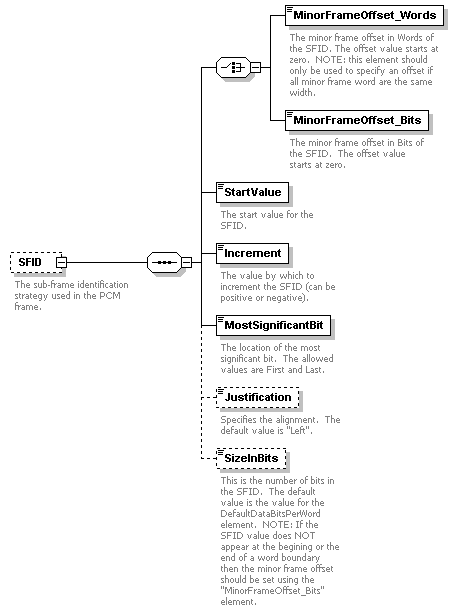

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

MinorFrameOffset_Words MinorFrameOffset_Bits StartValue Increment MostSignificantBit Justification SizeInBits

annotation

documentation

The sub-frame identification strategy used in the PCM frame.

element
SubframeSynchronizationStrategy/SFID/MinorFrameOffset_Words

diagram

type

MinorFrameOffsetType

properties

isRef	0
content	complex

annotation

documentation

The minor frame offset in Words of the SFID. The offset value starts at zero. NOTE: this element should only be used to specify an offset if all minor frame word are the same width.

element
SubframeSynchronizationStrategy/SFID/MinorFrameOffset_Bits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The minor frame offset in Bits of the SFID. The offset value starts at zero.

element
SubframeSynchronizationStrategy/SFID/StartValue

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple
default	0

annotation

documentation

The start value for the SFID.

element
SubframeSynchronizationStrategy/SFID/Increment

diagram

type

xs:integer

properties

isRef	0
content	simple

annotation

documentation

The value by which to increment the SFID (can be positive or negative).

element
SubframeSynchronizationStrategy/SFID/MostSignificantBit

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

used by

group

facets

enumeration	First
enumeration	Last

annotation

documentation

The location of the most significant bit. The allowed values are First and Last.

element
SubframeSynchronizationStrategy/SFID/Justification

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	Left

used by

group

facets

enumeration	Left
enumeration	Right

annotation

documentation

Specifies the alignment. The default value is “Left”.

element
SubframeSynchronizationStrategy/SFID/SizeInBits

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

used by

complexTypes

Pattern NumberOfBits Location

annotation

documentation

This is the number of bits in the SFID. The default value is the value for the DefaultDataBitsPerWord element. NOTE: If the SFID value does NOT appear at the begining or the end of a word boundary then the minor frame offset should be set using the “MinorFrameOffset_Bits” element.

element
SubframeSynchronizationStrategy/URC

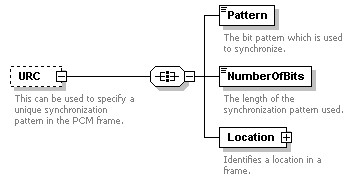

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This can be used to specify a unique synchronization pattern in the PCM frame.

element
SubframeSynchronizationStrategy/URC/Pattern

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	0

facets

pattern

[10]+

annotation

documentation

The bit pattern which is used to synchronize.

element
SubframeSynchronizationStrategy/URC/NumberOfBits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The length of the synchronization pattern used.

element
SubframeSynchronizationStrategy/URC/Location

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
content	complex

children

annotation

documentation

Identifies a location in a frame.

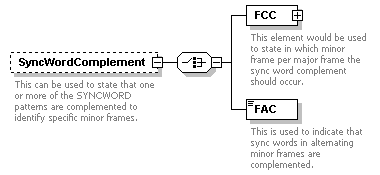

element
SubframeSynchronizationStrategy/SyncWordComplement

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

FCC FAC

annotation

documentation

This can be used to state that one or more of the SYNCWORD patterns are complemented to identify specific minor frames.

element
SubframeSynchronizationStrategy/SyncWordComplement/FCC

diagram


properties

isRef	0
content	complex

children

MinorFrameNumber

annotation

documentation

This element would be used to state in which minor frame per major frame the sync word complement should occur.

element
SubframeSynchronizationStrategy/SyncWordComplement/FCC/MinorFrameNumber

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This sets the minor frame in which the complement sync word occurs.

element
SubframeSynchronizationStrategy/SyncWordComplement/FAC

diagram

properties

isRef

annotation

documentation

This is used to indicate that sync words in alternating minor frames are complemented.

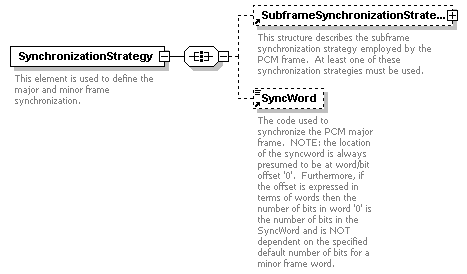

element
SynchronizationStrategy

diagram


properties

content

complex

children

SubframeSynchronizationStrategy SyncWord

used by

element

IRIG-106-Ch4Type/Properties

annotation

documentation

This element is used to define the major and minor frame synchronization.

element
SyncWord

diagram

type

restriction of xs:string

properties

content	simple
default	0

used by

element

SynchronizationStrategy

facets

minLength	1
maxLength	64
pattern	[1,0]+

annotation

documentation

The code used to synchronize the PCM major frame. NOTE: the location of the syncword is always presumed to be at word/bit offset ‘0’. Furthermore, if the offset is expressed in terms of words then the number of bits in word ‘0’ is the number of bits in the SyncWord and is NOT dependent on the specified default number of bits for a minor frame word.

element
TimeTags

diagram


type

TimeTagsType

properties

content

complex

children

TimeTagSequence MicroTimeTag

annotation

documentation

This element is used to identify time tags in a PCM frame.

element
WordsPerMinorFrame

diagram

type

xs:unsignedInt

properties

content

simple

annotation

documentation

This element is used to set the number of words in a minor frame.

complexType

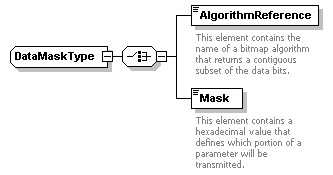

DataMaskType

diagram
children	AlgorithmReference Mask

element
DataMaskType/AlgorithmReference

diagram

type

AlgorithmReferenceType

properties

isRef	0
content	complex

used by

complexTypes

annotation

documentation

This element contains the name of a bitmap algorithm that returns a contiguous subset of the data bits.

element
DataMaskType/Mask

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

used by

group

IRIG-106-Ch4Type/Properties/FrameFormatIdentifier

annotation

documentation

This element contains a hexadecimal value that defines which portion of a parameter will be transmitted.

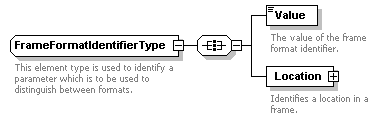

complexType
FrameFormatIdentifierType

diagram


type

extension of FrameParameterType

properties

base	FrameParameterType

children

Value Location

used by

element

annotation

documentation

This element type is used to identify a parameter which is to be used to distinguish between formats.

element
FrameFormatIdentifierType/Value

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The value of the frame format identifier.

element
FrameFormatIdentifierType/Location

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
content	complex

children

annotation

documentation

Identifies a location in a frame.

complexType
FrameLocationType

diagram


children

MinorFrameNumber Offset_Words Offset_Bits Occurrences

used by

elements

RegularPlacementDataType/FirstLocation SubframeSynchronizationStrategy/URC/Location IRIG-106-Ch4Type/Content/Mapping/Location FrameFormatIdentifierType/Location TimeTagsType/TimeTagSequence/Location TimeTagsType/MicroTimeTag/Location

annotation

documentation

This element type is used to identify a location in PCM frame.

element
FrameLocationType/MinorFrameNumber

diagram

type

restriction of xs:unsignedLong

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element contains the minor frame number. Note, this number starts at 1.

element
FrameLocationType/Occurrences

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	1

used by

elements

annotation

documentation

The number of times that the parameter occurs in the package. NOTE: The default value is 1 if not specified. Parameters that appear more than once will be evenly spaced throughout the package.

complexType
FrameParameterType

diagram

used by

complexTypes

FrameFormatIdentifierType TimeTagType

annotation

documentation

This element type is the base type for all parameters placed in a PCM frame.

complexType
FramePropertiesType

diagram


children

BitsPerMinorFrame MinorFramesPerMajorFrame DefaultDataBitsPerWord FillPattern DefaultMostSignificantBit DefaultParity

used by

element

IRIG-106-Ch4Type/Properties/MajorFrameProperties

annotation

documentation

This element type is the base type for elements that are used to describe PCM frame characteristics.

element
FramePropertiesType/BitsPerMinorFrame

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element is used to set the number of bits in a minor frame.

element
FramePropertiesType/MinorFramesPerMajorFrame

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive

annotation

documentation

This element is used to set the number of minor frames in a major frame.

element
FramePropertiesType/DefaultDataBitsPerWord

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

This element is used to specify the default number of data bits per word.

element
FramePropertiesType/DefaultParity

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	None

used by

element

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

facets

enumeration	Odd
enumeration	Even
enumeration	None
enumeration	CarryForward

annotation

documentation

The default parity of each word

complexType
IRIG-106-Ch4Type

diagram


type

extension of PackageType

properties

base	PackageType

children

used by

element

IRIG-106-Ch-4

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This complex type defines a generic IRIG-106 chapter 4 PCM data stream.

element

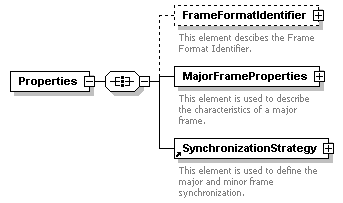

IRIG-106-Ch4Type/Properties

diagram


properties

isRef	0
content	complex

children

FrameFormatIdentifier MajorFrameProperties SynchronizationStrategy

element

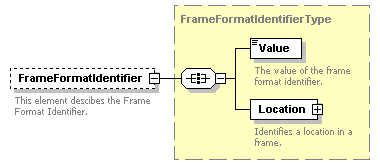

IRIG-106-Ch4Type/Properties/FrameFormatIdentifier

diagram


type

FrameFormatIdentifierType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Value Location

annotation

documentation

This element descibes the Frame Format Identifier.

element

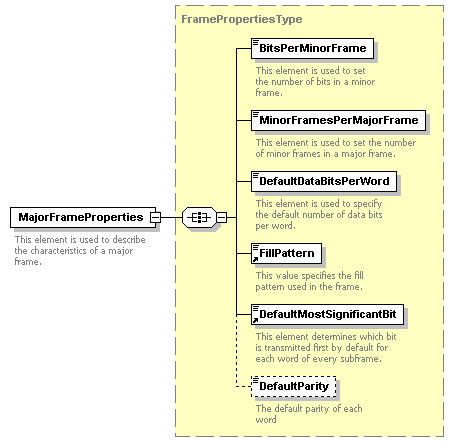

IRIG-106-Ch4Type/Properties/MajorFrameProperties

diagram


type

FramePropertiesType

properties

isRef	0
content	complex

children

BitsPerMinorFrame MinorFramesPerMajorFrame DefaultDataBitsPerWord FillPattern DefaultMostSignificantBit DefaultParity

annotation

documentation

This element is used to describe the characteristics of a major frame.

element
IRIG-106-Ch4Type/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueIRIG106Ch4ParameterName		./Parameter	@Name

annotation

documentation

This element is used to describe parameter placement.

element
IRIG-106-Ch4Type/Content/Mapping

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
IRIG-106-Ch4Type/Content/Mapping/Location

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
MinorFrameOffsetType

diagram

type

extension of xs:unsignedInt

properties

base	xs:unsignedInt

used by

elements

SubframeSynchronizationStrategy/SFID/MinorFrameOffset_Words Offset_Words WordNumber

annotation

documentation

This element type is used to specify the offset with respect to the start of a minor frame. The offset value starts at zero.

complexType

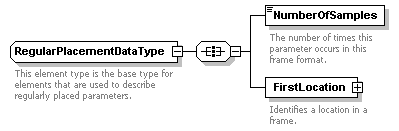

RegularPlacementDataType

diagram


children

NumberOfSamples FirstLocation

annotation

documentation

This element type is the base type for elements that are used to describe regularly placed parameters.

element
RegularPlacementDataType/NumberOfSamples

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The number of times this parameter occurs in this frame format.

element

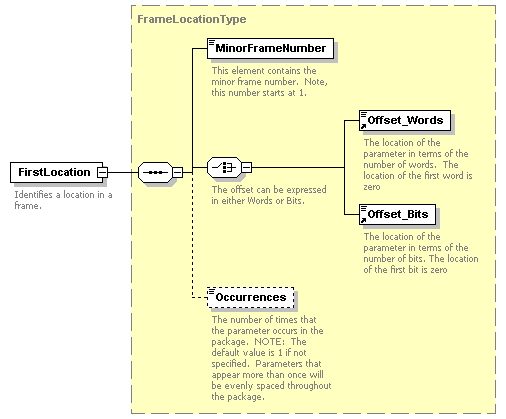

RegularPlacementDataType/FirstLocation

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
content	complex

children

annotation

documentation

Identifies a location in a frame.

complexType

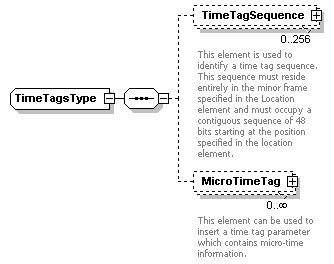

TimeTagsType

diagram


children

TimeTagSequence MicroTimeTag

used by

element

TimeTags

element
TimeTagsType/TimeTagSequence

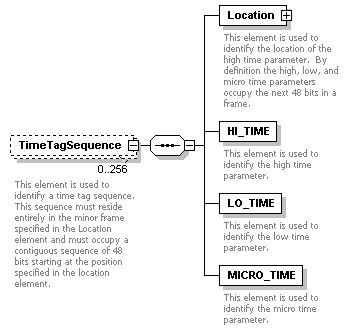

diagram


properties

isRef	0
minOcc	0
maxOcc	256
content	complex

children

Location HI_TIME LO_TIME MICRO_TIME

annotation

documentation

This element is used to identify a time tag sequence. This sequence must reside entirely in the minor frame specified in the Location element and must occupy a contiguous sequence of 48 bits starting at the position specified in the location element.

element

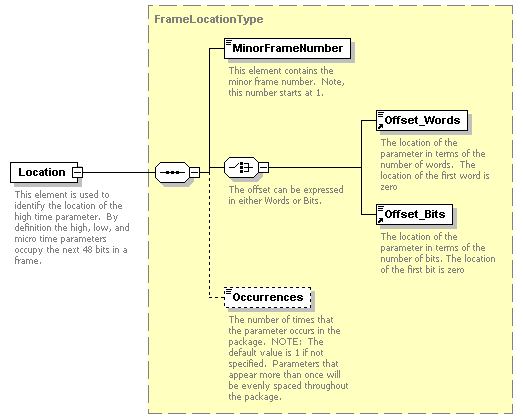

TimeTagsType/TimeTagSequence/Location

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
content	complex

children

annotation

documentation

This element is used to identify the location of the high time parameter. By definition the high, low, and micro time parameters occupy the next 48 bits in a frame.

element
TimeTagsType/TimeTagSequence/HI_TIME

diagram

type

TimeTagType

properties

isRef	0
content	complex

annotation

documentation

This element is used to identify the high time parameter.

element
TimeTagsType/TimeTagSequence/LO_TIME

diagram

type

TimeTagType

properties

isRef	0
content	complex

annotation

documentation

This element is used to identify the low time parameter.

element
TimeTagsType/TimeTagSequence/MICRO_TIME

diagram

type

TimeTagType

properties

isRef	0
content	complex

annotation

documentation

This element is used to identify the micro time parameter.

element
TimeTagsType/MicroTimeTag

diagram


type

extension of TimeTagType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Location

annotation

documentation

This element can be used to insert a time tag parameter which contains micro-time information.

element

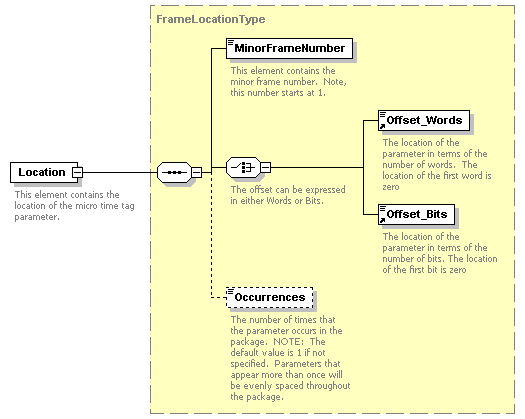

TimeTagsType/MicroTimeTag/Location

diagram


type

MinorFrameNumber Offset_Words Offset_Bits Occurrences

properties

isRef	0
content	complex

children

annotation

documentation

This element contains the location of the micro time tag parameter.

complexType
TimeTagType

diagram

type

extension of FrameParameterType

properties

base	FrameParameterType

used by

elements

TimeTagsType/TimeTagSequence/HI_TIME TimeTagsType/TimeTagSequence/LO_TIME TimeTagsType/TimeTagSequence/MICRO_TIME TimeTagsType/MicroTimeTag

annotation

documentation

This element type is the base type for all time tag parameters.

complexType

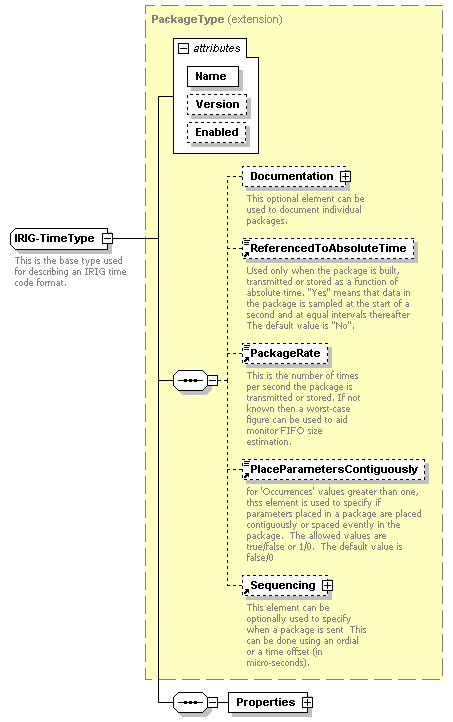

IRIG-TimeType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties

used by

element

IRIG-Time

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type used for describing an IRIG time code format.

element
IRIG-TimeType/Properties

diagram


properties

isRef	0
content	complex

children

IRIGTimeFormat

element
IRIG-TimeType/Properties/IRIGTimeFormat

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element contains the IRIG time format in the following form (Format)(Modulation)(Frequency)(Code). for example, ‘B123′,’B001’ and so on.

complexType
Memory-StorageType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

used by

element

Memory-Storage

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is used to describe a generic memory storage protocol.

element
Memory-StorageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueMemoryStorageParameterName		./Parameter	@Name

annotation

documentation

This element describes the structure of data stored on a particular memory storatge device.

element
Memory-StorageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element

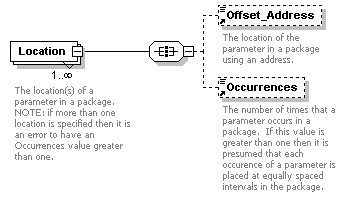

Memory-StorageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Address Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
MIL-STD-1553-MessageType

diagram


type

extension of PackageType

properties

base	PackageType

children

used by

element

MIL-STD-1553-Message

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package represents one of ten MIL-STD-1553 messages.

element

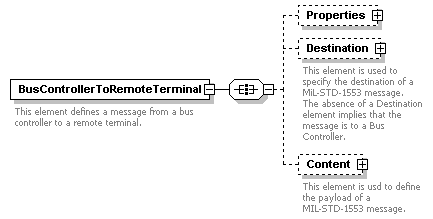

MIL-STD-1553-MessageType/BusControllerToRemoteTerminal

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a message from a bus controller to a remote terminal.

element

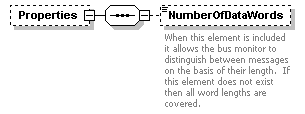

MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Properties/NumberOfDataWords

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

When this element is included it allows the bus monitor to distinguish between messages on the basis of their length. If this element does not exist then all word lengths are covered.

element

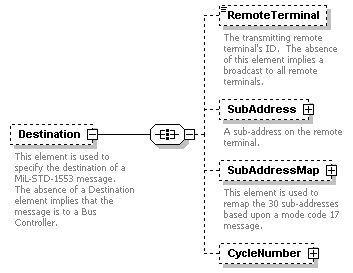

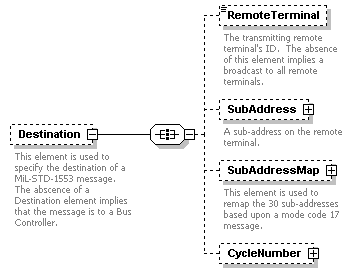

MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MiL-STD-1553 message. The absence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. The absence of this element implies a broadcast to all remote terminals.

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

Properties Source Content

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a message from a remote terminal to a bus controller.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Properties/NumberOfDataWords

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

When this element is included it allows the bus monitor to distinguish between messages on the basis of their length. If this element does not exist then all word lengths are covered.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the source of a MIL-STD-1553 message. The absence of a Source element implies that the message is from a Bus Controller.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. the absence of this element indicates that the message is defined for any transmitting remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Source/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/RemoteTerminalToBusController/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

Properties Source Destination Content

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element

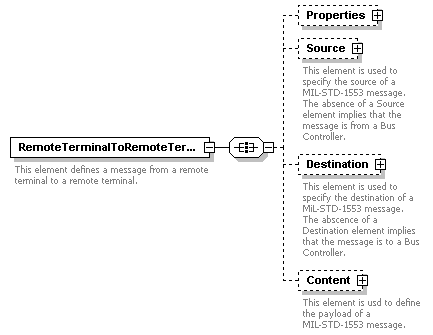

MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a message from a remote terminal to a remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Properties/NumberOfDataWords

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

When this element is included it allows the bus monitor to distinguish between messages on the basis of their length. If this element does not exist then all word lengths are covered.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the source of a MIL-STD-1553 message. The absence of a Source element implies that the message is from a Bus Controller.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. the absence of this element indicates that the message is defined for any transmitting remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Source/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MiL-STD-1553 message. The abscence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. The absence of this element implies a broadcast to all remote terminals.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element

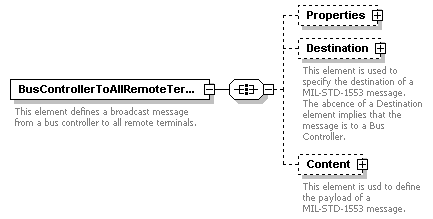

MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a broadcast message from a bus controller to all remote terminals.

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Properties/NumberOfDataWords

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

When this element is included it allows the bus monitor to distinguish between messages on the basis of their length. If this element does not exist then all word lengths are covered.

element

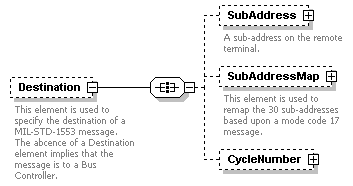

MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MIL-STD-1553 message. The abcence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

Properties Source Destination Content

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element

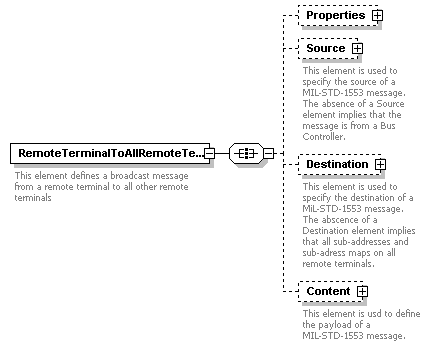

MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a broadcast message from a remote terminal to all other remote terminals

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element

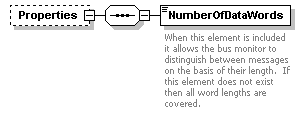

MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Properties/NumberOfDataWords

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

When this element is included it allows the bus monitor to distinguish between messages on the basis of their length. If this element does not exist then all word lengths are covered.

element

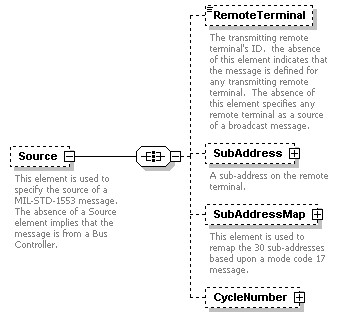

MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the source of a MIL-STD-1553 message. The absence of a Source element implies that the message is from a Bus Controller.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. the absence of this element indicates that the message is defined for any transmitting remote terminal. The absence of this element specifies any remote terminal as a source of a broadcast message.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Source/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element

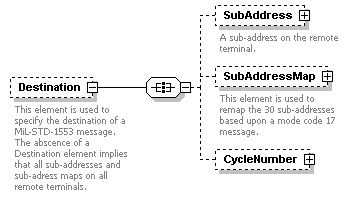

MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MiL-STD-1553 message. The abscence of a Destination element implies that all sub-addresses and sub-adress maps on all remote terminals.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element

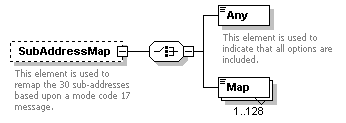

MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element
MIL-STD-1553-MessageType/ModeNoData

diagram


properties

isRef	0
content	complex

children

Properties Destination

annotation

documentation

This element defines a mode message with no data to a remote terminal.

element
MIL-STD-1553-MessageType/ModeNoData/Properties

diagram


properties

isRef	0
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/ModeNoData/Properties/ModeCode

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the Mode Code number.

element
MIL-STD-1553-MessageType/ModeNoData/Properties/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all mode codes are included.

element

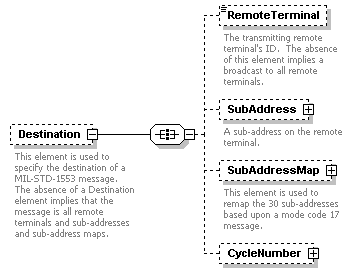

MIL-STD-1553-MessageType/ModeNoData/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MIL-STD-1553 message. The absence of a Destination element implies that the message is all remote terminals and sub-addresses and sub-address maps.

element
MIL-STD-1553-MessageType/ModeNoData/Destination/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. The absence of this element implies a broadcast to all remote terminals.

element
MIL-STD-1553-MessageType/ModeNoData/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/ModeNoData/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/ModeNoData/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/ModeNoData/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/ModeNoData/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Properties Source Content

element
MIL-STD-1553-MessageType/ModeNoData/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/ModeNoData/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element

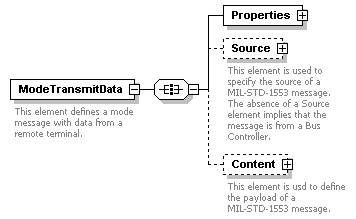

MIL-STD-1553-MessageType/ModeTransmitData

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a mode message with data from a remote terminal.

element
MIL-STD-1553-MessageType/ModeTransmitData/Properties

diagram


properties

isRef	0
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/ModeTransmitData/Properties/ModeCode

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the Mode Code number.

element
MIL-STD-1553-MessageType/ModeTransmitData/Properties/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all mode codes are included.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the source of a MIL-STD-1553 message. The absence of a Source element implies that the message is from a Bus Controller.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. The abscence of this element indicates that the message is defined for any transmitting remote terminal.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/ModeTransmitData/Source/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/ModeTransmitData/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element

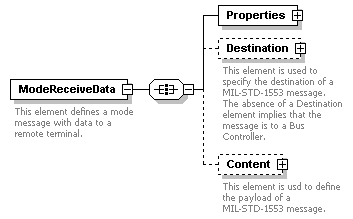

MIL-STD-1553-MessageType/ModeReceiveData

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a mode message with data to a remote terminal.

element
MIL-STD-1553-MessageType/ModeReceiveData/Properties

diagram


properties

isRef	0
content	complex

children

RemoteTerminal SubAddress SubAddressMap CycleNumber

element
MIL-STD-1553-MessageType/ModeReceiveData/Properties/ModeCode

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the Mode Code number.

element
MIL-STD-1553-MessageType/ModeReceiveData/Properties/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all mode codes are included.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MIL-STD-1553 message. The absence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/RemoteTerminal

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	30

annotation

documentation

The transmitting remote terminal’s ID. The absence of this element implies to all remote terminals.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/ModeReceiveData/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/ModeReceiveData/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

element
MIL-STD-1553-MessageType/BroadcastModeNoData

diagram


properties

isRef	0
content	complex

children

Properties Destination

annotation

documentation

This element defines a broadcast mode message with no data

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Properties

diagram


properties

isRef	0
content	complex

children

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Properties/ModeCode

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the Mode Code number.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Properties/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all mode codes are included.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MIL-STD-1553 message. The absence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/BroadcastModeNoData/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData

diagram


properties

isRef	0
content	complex

children

annotation

documentation

This element defines a broadcast mode message with data.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Properties

diagram


properties

isRef	0
content	complex

children

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Properties/ModeCode

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the Mode Code number.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Properties/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all mode codes are included.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of a MIL-STD-1553 message. The absence of a Destination element implies that the message is to a Bus Controller.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/SubAddress

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

A sub-address on the remote terminal.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/SubAddressMap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to remap the 30 sub-addresses based upon a mode code 17 message.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/SubAddressMap/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/SubAddressMap/Map

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	128
content	simple

facets

minInclusive	0
maxInclusive	127

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/CycleNumber

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/CycleNumber/Any

diagram

properties

isRef

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Destination/CycleNumber/Number

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
minOcc	1
maxOcc	64
content	simple

facets

minInclusive	0
maxInclusive	63

element
MIL-STD-1553-MessageType/BroadcastModeReceiveData/Content

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

annotation

documentation

This element is usd to define the payload of a MIL-STD-1553 message.

complexType
MIL-STD-1553ContentType

diagram


children

MIL-STD-1553-MessageType/BusControllerToRemoteTerminal/Content MIL-STD-1553-MessageType/RemoteTerminalToBusController/Content MIL-STD-1553-MessageType/RemoteTerminalToRemoteTerminal/Content MIL-STD-1553-MessageType/BusControllerToAllRemoteTerminals/Content MIL-STD-1553-MessageType/RemoteTerminalToAllRemoteTerminals/Content MIL-STD-1553-MessageType/ModeTransmitData/Content MIL-STD-1553-MessageType/ModeReceiveData/Content MIL-STD-1553-MessageType/BroadcastModeReceiveData/Content

used by

elements

element
MIL-STD-1553ContentType/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

annotation

documentation

This element defines the placement of a parameter in a frame.

element
MIL-STD-1553ContentType/Mapping/Location

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Offset_Words Offset_Bits WordNumber Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
SubAddressType

diagram


children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

used by

elements

element
SubAddressType/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate that all options are included.

element
SubAddressType/Address

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

For MIL-STD-1553-A the sub-address ranges from 0 to 31 and for MIL-STD-1553-B 0 or 31.

complexType
Network-TransportType

diagram


type

extension of PackageType

properties

base	PackageType

children

used by

element

Network-Transport

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

element
Network-TransportType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

HashBinary

annotation

documentation

This element is used to define the content of the non-data section(s) of the package

element
Network-TransportType/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element can be used to spcify the source of the data packet.

element
Network-TransportType/Source/IPAddress

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP address used as the source of data packets.

element
Network-TransportType/Source/IPAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	000.000.000.000

facets

pattern

[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Source/IPAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Source/IPAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Source/Port

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP port used as the source of data packets.

element
Network-TransportType/Source/Port/Value

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	65536

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Source/Port/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Source/Port/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Source/MACAddress

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

This optional parameter is used to specify the MAC address that corresponds to the IP address. It can be used if the hardware cannot resolve it automatically using the “ARP” standard protocol.

element
Network-TransportType/Source/MACAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	00-00-00-00-00-00

facets

pattern

[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Source/MACAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Source/MACAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of the data packet.

element
Network-TransportType/Destination/IPAddress

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP address used as the destination of data packets.

element
Network-TransportType/Destination/IPAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	000.000.000.000

facets

pattern

[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Destination/IPAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Destination/IPAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Destination/Port

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP port used as the destination of data packets.

element
Network-TransportType/Destination/Port/Value

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	65536

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Destination/Port/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Destination/Port/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Destination/MACAddress

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

This optional element is used to specify the MAC address that corresponds to the IP address. It can be used if the hardware cannot resolve it automatically using the “ARP” standard protocol.

element
Network-TransportType/Destination/MACAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	00-00-00-00-00-00

facets

pattern

[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]

annotation

documentation

This element is used to specify a particular value.

element
Network-TransportType/Destination/MACAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
Network-TransportType/Destination/MACAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
Network-TransportType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueNetworkTransportParameterName		./Parameter	@Name

element
Network-TransportType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
Network-TransportType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Bytes Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
Panavia-MessageType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Content

used by

element

Panavia

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package defines a Panavia message.

element
Panavia-MessageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Tag Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	PanaviaUniqueParameterName		Parameter	@Name

annotation

documentation

This element defines the content of a Panavia message.

element
Panavia-MessageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
Panavia-MessageType/Content/Mapping/Tag

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element is used to specify the value that is used to identify the parameter.

element
Panavia-MessageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

MinorFrameIndex Offset_Words Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

element
Panavia-MessageType/Content/Mapping/Location/MinorFrameIndex

diagram

type

restriction of xs:unsignedLong

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	31

annotation

documentation

This element contains the minor frame number. Note, this number starts at 0.

complexType
RS-232-BasicType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Content

used by

element

RS-232-Basic

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is used to describe a generic RS-232 protocol.

element
RS-232-BasicType/Properties

diagram


properties

isRef	0
content	complex

children

BytesPerPackage StartIdentification StopIdentification

element
RS-232-BasicType/Properties/BytesPerPackage

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The number of bytes in the RS-232 package can be used by some applications to determine when a message ends.

element
RS-232-BasicType/Properties/StartIdentification

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Gap Patterns

annotation

documentation

This optional element is used to identify the start of an package.

element
RS-232-BasicType/Properties/StartIdentification/Gap

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

MilliSeconds Bits

element
RS-232-BasicType/Properties/StartIdentification/Gap/MilliSeconds

diagram

type

xs:float

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element contains the value for the gap (in milliseconds) between packages of this type.

element
RS-232-BasicType/Properties/StartIdentification/Gap/Bits

diagram

properties

isRef	0
minOcc	0
maxOcc	1

annotation

documentation

This element contains the value for the gap (in bits) between packages of this type.

element
RS-232-BasicType/Properties/StopIdentification

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Patterns

annotation

documentation

This optional element is used to identify the end of an package.

element
RS-232-BasicType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueRS232ParameterName		./Parameter	@Name

annotation

documentation

This element describes the payload of an RS-232 message described by MessageIdentification element.

element
RS-232-BasicType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
RS-232-BasicType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Offset_Words Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

complexType
SnarferType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties

used by

element

Snarfer

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package type is used to describe a Snarfer (i.e. a filtered FIFO) used in bus monitoring.

element
SnarferType/Properties

diagram


properties

isRef	0
content	complex

children

NumberOfBitsInSnarferWord PackageTimeOut MinimumPackageSize FIFOFullValue FIFOEmptyValue BusIdentifier ContentIdentifier ErrorCodeValues ContentIdentifierTags

element
SnarferType/Properties/NumberOfBitsInSnarferWord

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The total number of bits in the Snarfer word including data and non-data bits.

element
SnarferType/Properties/PackageTimeOut

diagram

type

xs:double

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The maximum length of time to wait before sending a package.

element
SnarferType/Properties/MinimumPackageSize

diagram

type

xs:double

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The minimum size of sent package.

element
SnarferType/Properties/FIFOFullValue

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

FixedValue LastValueRead

annotation

documentation

This element is used to specify how a FIFO full event has occurred

element
SnarferType/Properties/FIFOFullValue/FixedValue

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

This element is used to specify that the FIFO is full by returning a known fixed value.

element
SnarferType/Properties/FIFOFullValue/LastValueRead

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

element
SnarferType/Properties/FIFOEmptyValue

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

FixedValue LastValueRead

annotation

documentation

This element is used to specify how a FIFO empty event has occurred.

element
SnarferType/Properties/FIFOEmptyValue/FixedValue

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

This element is used to specify that the FIFO is empty by returning a known fixed value.

element
SnarferType/Properties/FIFOEmptyValue/LastValueRead

diagram

properties

isRef

element
SnarferType/Properties/BusIdentifier

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

StartBitIndex StopBitIndex

annotation

documentation

This element is used to determine which bits are used to identify the bus.

element
SnarferType/Properties/BusIdentifier/StartBitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Indicates the first bit in the sequence of bits in the Snarfer word used as the bus identifier

element
SnarferType/Properties/BusIdentifier/StopBitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Indicates the last bit in the sequence of bits in the Snarfer word used as the bus identifier

element
SnarferType/Properties/ContentIdentifier

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

StartBitIndex StopBitIndex

annotation

documentation

This element is used to determine which bits are used to identify content.

element
SnarferType/Properties/ContentIdentifier/StartBitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Indicates the first bit in the sequence of bits in the Snarfer word used as the content identifier.

element
SnarferType/Properties/ContentIdentifier/StopBitIndex

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Indicates the last bit in the sequence of bits in the Snarfer word used as the content identifier.

element
SnarferType/Properties/ErrorCodeValues

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

ErrorDefinition

annotation

documentation

This element contains a list of error code values and their definitions.

element
SnarferType/Properties/ErrorCodeValues/ErrorDefinition

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Value Description

annotation

documentation

This element is used to define an error value and specify its description.

element
SnarferType/Properties/ErrorCodeValues/ErrorDefinition/Value

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

This element contains an error value.

element
SnarferType/Properties/ErrorCodeValues/ErrorDefinition/Description

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element defines the meaning of the error value.

element
SnarferType/Properties/ContentIdentifierTags

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

FIFO Traffic Time Errors

annotation

documentation

This element is used to specify tags for identifying the different types of data in a snarfer.

element
SnarferType/Properties/ContentIdentifierTags/FIFO

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Full Empty

annotation

documentation

This element contains a list of FIFO tags.

element
SnarferType/Properties/ContentIdentifierTags/FIFO/Full

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

element
SnarferType/Properties/ContentIdentifierTags/FIFO/Empty

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

element
SnarferType/Properties/ContentIdentifierTags/Traffic

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

DATA DATA_HI DATA_LO UserDefined

annotation

documentation

This element contains a list of traffic tags.

element
SnarferType/Properties/ContentIdentifierTags/Traffic/DATA

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element is used to tag data traffic.

element
SnarferType/Properties/ContentIdentifierTags/Traffic/DATA_HI

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element is used to tag the most significant 16 bits of data traffic for a 32-bit traffic word.

element
SnarferType/Properties/ContentIdentifierTags/Traffic/DATA_LO

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element is used to tag the least significant 16 bits of data traffic for a 32-bit traffic word.

element
SnarferType/Properties/ContentIdentifierTags/Traffic/UserDefined

diagram


type

extension of xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	required

annotation

documentation

This element can be used to identify user-defined traffic. Each user-defined tag is identifed by using a unique “Nam” attribute.

attribute
SnarferType/Properties/ContentIdentifierTags/Traffic/UserDefined/@Name

type

xs:string

properties

isRef	0
use	required

element
SnarferType/Properties/ContentIdentifierTags/Time

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

TIME_HI TIME_LO TIME_MICO TIME_DAYOFYEAR PTPTime

annotation

documentation

This element contains a list of time tags.

element
SnarferType/Properties/ContentIdentifierTags/Time/TIME_HI

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element specifies an IRIG HIGH TIME word.

element
SnarferType/Properties/ContentIdentifierTags/Time/TIME_LO

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element specifies an IRIG LO TIME word.

element
SnarferType/Properties/ContentIdentifierTags/Time/TIME_MICO

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element specifies an IRIG MICRO TIME word.

element
SnarferType/Properties/ContentIdentifierTags/Time/TIME_DAYOFYEAR

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element specifies an IRIG DAY OF YEAR word.

element
SnarferType/Properties/ContentIdentifierTags/Time/PTPTime

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element is used to indicate that PTP time is being used

element
SnarferType/Properties/ContentIdentifierTags/Errors

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Error

annotation

documentation

This element contains a list of error tags.

element
SnarferType/Properties/ContentIdentifierTags/Errors/Error

diagram

type

xs:hexBinary

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

complexType
STANAG-3910-MessageType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Destination Content

used by

element

STANAG-3910

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This package represents one of ten MIL-STD-1553 messages.

element
STANAG-3910-MessageType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

PhysicalAddress

element
STANAG-3910-MessageType/Properties/PhysicalAddress

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

An five value that is used to identify the STANAG-3910 message.

element
STANAG-3910-MessageType/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

DestinationAddress

annotation

documentation

This element is used to specify the destination of a MiL-STD-1553 message. The absence of a Destination element implies that the message is to a Bus Controller.

element
STANAG-3910-MessageType/Destination/DestinationAddress

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

An 15 value that is used to identify the STANAG-3910 message.

element
STANAG-3910-MessageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueSTANAGContentParameterName		./Parameter	@Name

element
STANAG-3910-MessageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a frame.

element
STANAG-3910-MessageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Offset_Words Offset_Bits Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

element
STANAG-3910-MessageType/Content/Mapping/Location/Occurrences

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	1

used by

elements

annotation

documentation

complexType
iNET-XType

diagram


type

extension of PackageType

properties

base	PackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Properties Source Destination Content

used by

element

iNET-X

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

element
iNET-XType/Properties

diagram


properties

isRef	0
content	complex

children

StreamID Format

annotation

documentation

This element is used to define the content of the non-data section(s) of the package

element
iNET-XType/Properties/StreamID

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element is used to uniquely identify the stream

element
iNET-XType/Properties/Format

diagram


properties

isRef	0
content	complex

children

Placed BitStream Event ParserAligned Block

annotation

documentation

This element is used to specify the type of xNET package.

element
iNET-XType/Properties/Format/Placed

diagram

properties

isRef	0
content	complex

annotation

documentation

Specifies that the packet contains individually placed parameters. Examples would sampled parameters from an Analog module., Snarfer data or Synchronous PCM.

element
iNET-XType/Properties/Format/BitStream

diagram


properties

isRef	0
content	complex

children

DataType SizeInBytes

annotation

documentation

Specifies that the packet contains a stream of bits. Examples would be CVSD or Asynchronous PCM

element
iNET-XType/Properties/Format/BitStream/DataType

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The type of data being transmitted. Some examples are “CVSD”, “PCM” etc.

element
iNET-XType/Properties/Format/BitStream/SizeInBytes

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Contains the size of the packet in bytes

element
iNET-XType/Properties/Format/Event

diagram


properties

isRef	0
content	complex

children

Enumerations

annotation

documentation

Specifies that the packet contains event information

element
iNET-XType/Properties/Format/Event/Enumerations

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Enumeration

used by

complexTypes

ARINC-429-BlockType/Properties/StartIdentification ARINC-429-BlockType/Properties/StopIdentification

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueEnumerationValue		Enumeration	Value

annotation

documentation

This element is used to list all event values.

element
iNET-XType/Properties/Format/Event/Enumerations/Enumeration

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Value Label

annotation

documentation

This element is used to describe an enumerated value

element
iNET-XType/Properties/Format/Event/Enumerations/Enumeration/Value

diagram

type

xs:hexBinary

properties

isRef	0
content	simple

annotation

documentation

The hex value of the event

element
iNET-XType/Properties/Format/Event/Enumerations/Enumeration/Label

diagram

type

xs:string

properties

isRef	0
content	simple

used by

elements

annotation

documentation

A description or label associated with the event.

element
iNET-XType/Properties/Format/ParserAligned

diagram


properties

isRef	0
content	complex

children

DataType TargetSizeInBytes

annotation

documentation

Specifies that the packet contains parsed message data. Examples would include MIL-STD-1553, and ARINC-429 bus messages

element
iNET-XType/Properties/Format/ParserAligned/DataType

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The type of data being transmitted. Some examples are “MIL-STD-1553”, “ARINC-429” etc.

element
iNET-XType/Properties/Format/ParserAligned/TargetSizeInBytes

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Contains the target size of the packet in bytes

element
iNET-XType/Properties/Format/Block

diagram


properties

isRef	0
content	complex

children

BytesPerBlock NumberOfBlocks DataType

annotation

documentation

Specifies that the packet contains one or more blocks of data. Each block would be the same lenght. An example would be a video stream embvedded in the packet.

element
iNET-XType/Properties/Format/Block/BytesPerBlock

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The number of bytes per block

element
iNET-XType/Properties/Format/Block/NumberOfBlocks

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

The number of blocks in the packet

element
iNET-XType/Properties/Format/Block/DataType

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

The type of data being transmitted. An example would be “Video”.

element
iNET-XType/Source

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element can be used to spcify the source of the data packet.

element
iNET-XType/Source/IPAddress

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP address used as the source of data packets.

element
iNET-XType/Source/IPAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	000.000.000.000

facets

pattern

[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Source/IPAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Source/IPAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Source/Port

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP port used as the source of data packets.

element
iNET-XType/Source/Port/Value

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	65536

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Source/Port/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Source/Port/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Source/MACAddress

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

This optional parameter is used to specify the MAC address that corresponds to the IP address. It can be used if the hardware cannot resolve it automatically using the “ARP” standard protocol.

element
iNET-XType/Source/MACAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	00-00-00-00-00-00

facets

pattern

[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Source/MACAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Source/MACAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Destination

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

annotation

documentation

This element is used to specify the destination of the data packet.

element
iNET-XType/Destination/IPAddress

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP address used as the destination of data packets.

element
iNET-XType/Destination/IPAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	000.000.000.000

facets

pattern

[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Destination/IPAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Destination/IPAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Destination/Port

diagram


properties

isRef	0
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

The IP port used as the destination of data packets.

element
iNET-XType/Destination/Port/Value

diagram

type

restriction of xs:unsignedInt

properties

isRef	0
content	simple

facets

minInclusive	0
maxInclusive	65536

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Destination/Port/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Destination/Port/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Destination/MACAddress

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

IENA-Ethernet-UDP-BasicType/Destination IENA-Ethernet-UDP-BasicType/Source

used by

elements

annotation

documentation

This optional element is used to specify the MAC address that corresponds to the IP address. It can be used if the hardware cannot resolve it automatically using the “ARP” standard protocol.

element
iNET-XType/Destination/MACAddress/Value

diagram

type

restriction of xs:string

properties

isRef	0
content	simple
default	00-00-00-00-00-00

facets

pattern

[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]-[0-9a-fA-F][0-9a-fA-F]

annotation

documentation

This element is used to specify a particular value.

element
iNET-XType/Destination/MACAddress/Any

diagram

properties

isRef

annotation

documentation

This element is used to indicate any or all values.

element
iNET-XType/Destination/MACAddress/Wildcard

diagram

type

restriction of xs:string

properties

isRef	0
content	simple

facets

pattern

[0,1,*]+

annotation

documentation

This element contains a binary expression in which individual bits can be wild-carded.

element
iNET-XType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniquexNETParameterName		./Parameter	@Name

annotation

documentation

The content section is really only applicable to “Placed” data. Placed data is ALWAYS aligned on 16 bit boundaries. If a placed Parameter is less than 16 bits then the remaining unused bits, up to the next 16 bit boundary, are uindefined. Also, if the number of bits in a placed Parameter is greater than 16 bits, it will overflow across the next 16 bit boundary and the remaining unused bits will again being undefined. Also, all occurrences of a Parameter are ALWAYS placed contiguously after each other.

element
iNET-XType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

element
iNET-XType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Offset_Bytes Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

element
iNET-XType/Content/Mapping/Location/Occurrences

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	1

used by

elements

annotation

documentation

element
TotalSizeInBits

diagram

type

xs:unsignedInt

properties

content

simple

used by

element

annotation

documentation

Can be used to specify the size of the package in bits

element
TotalSizeInBytes

diagram

type

xs:unsignedInt

properties

content

simple

used by

element

annotation

documentation

Can be used to specify the size of the package in bytes

element
TotalSizeInWords

diagram

type

xs:unsignedInt

properties

content

simple

used by

element

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing Type SubType Properties Content

annotation

documentation

Can be used to specify the size of the package in words

complexType
GenericPackageType

diagram


type

extension of PackageType

properties

base	PackageType

children

used by

element

Generic

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

element
GenericPackageType/Type

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element can be used to specify the type of the package . Examples include, MIL-STD-1553, ARINC-429 and so on.

element
GenericPackageType/SubType

diagram

type

xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element can be used to specify a package’s sub-type. An example would be MIL-STD-1553-RT-RT.

element
GenericPackageType/Properties

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

TotalSizeInBits TotalSizeInBytes TotalSizeInWords DefaultWordSize DefaultNumberOfDataBits DefaultMostSignificantBit DefaultParity DefaultJustification DefaultMask DefaultComplement Settings

annotation

documentation

This element can optinally contain settings decribing the stucture of a package, general header inforamtion and so on.

element
GenericPackageType/Properties/Settings

diagram


type

PackageSettingsType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

elements	Channel ChannelGroup Processes/Process
complexType	InstrumentType

annotation

documentation

Contains a list of package settings

element
GenericPackageType/Content

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

StartOffset Mapping

used by

complexTypes

NumberOfDataBits MostSignificantBit Parity Justification Mask Complement FillValue ParameterReference Parameter PackageReference X-PackageBase Location

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueGenericPackageParameterName		./Parameter	@Name

annotation

documentation

This element describes the payload of an generic package. NOTE: in some cases it is not possible to determine the exact layout of payload data in a pacakge and the content section can be excluded. In these cases the structure nd layout of the content section can be determined from the type and sub-type of the package

element
GenericPackageType/Content/StartOffset

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple
default	0

annotation

documentation

This element is used to indicate at what values the offset location values should start. The default value is 0

element
GenericPackageType/Content/Mapping

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

annotation

documentation

This element defines the placement of a parameter in a package

element
GenericPackageType/Content/Mapping/Location

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

MinorFrame Offset_Bits Offset_Bytes Offset_Words Offset_Address Offset_uS Identifier Occurrences

annotation

documentation

The location(s) of a parameter in a package. NOTE: if more than one location is specified then it is an error to have an Occurrences value greater than one.

element
GenericPackageType/Content/Mapping/Location/MinorFrame

diagram

type

xs:unsignedInt

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

This element can optionally be used to speficy a minor frame number or index.

element
GenericPackageType/Content/Mapping/Location/Identifier

diagram

properties

isRef

annotation

documentation

Thsi element is used to identify a location using an identifier

complexType
PackageSettingsType

diagram


children

GenericPackageType/Properties/Settings

used by

element

element
PackageSettingsType/Setting

diagram


properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Documentation Type Settings Packages Addendum

used by

element

Settings

annotation

documentation

This element contains a package setting

element
PackageSettingsType/Setting/Name

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The name of the packge setting

element
PackageSettingsType/Setting/Value

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The value for the setting

complexType
LinkType

diagram


type

extension of X-DataLinkType

properties

base	X-DataLinkType

children

used by

element

Link

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional

annotation

documentation

This complex type defines a 1553 DataLink.

element
LinkType/Type

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

This element is used to specify the type of data link and can contain values such as RS-232,RS-422, RF and so on.

element
LinkType/Settings

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

elements	Channel ChannelGroup Processes/Process
complexType	InstrumentType

annotation

documentation

Contains a list of settings common to the link or pacages defined on the link

element
LinkType/Settings/Setting

diagram


properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

PackageReference X-PackageBase

used by

element

Settings

annotation

documentation

This element defines a setting

element
LinkType/Settings/Setting/Name

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The name of the setting

element
LinkType/Settings/Setting/Value

diagram

type

xs:string

properties

isRef	0
content	simple

annotation

documentation

The value for the setting

element
LinkType/Packages

diagram


properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

used by

element

annotation

documentation

This element is used to define all Packages that are transmitted/stored over the Datalink.

documentation

This element is usd to define all Packages that are transmitted/stored over the Datalink.

element
LinkType/Packages/PackageReference

diagram

type

PackageReferenceType

properties

isRef	0
content	complex

annotation

documentation

The name of a package defined in the packages section. Describes the structure of the transmitted/stored data.

element
AlgorithmBase

diagram


type

CommonAlgorithmType

properties

content	complex
substGrp	CommonAlgorithmBase
abstract	true

children

AlgorithmManyToManyAlgorithmType

used by

element

Algorithms/AlgorithmSet

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

element
AlgorithmManyToManyAlgorithmBase

diagram


type

properties

content	complex
abstract	true

children

AlgorithmManyToOneAlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInputParameterName4		./Input	@Name
unique	UniqueOutputParameterName4		./Output	@Name

element
AlgorithmManyToOneAlgorithmBase

diagram


type

properties

content	complex
abstract	true

children

AlgorithmOneToManyAlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInputParameterName1		./Input	@Name
unique	UniqueOutputParameterName2		./Output	@Name

element
AlgorithmOneToManyAlgorithmBase

diagram


type

properties

content	complex
abstract	true

children

AlgorithmOneToOneAlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInputParameterName3		./Input	@Name
unique	UniqueOutputParameterName3		./Output	@Name

element
AlgorithmOneToOneAlgorithmBase

diagram


type

properties

content	complex
abstract	true

children

AlgorithmOneToOneAlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInputAlgorithmParameterName		./Input	@Name

element
AlgorithmOneToZeroAlgorithmBase

diagram


type

properties

content	complex
abstract	true

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

identity constraints

	Name	Refer	Selector	Field(s)
unique	UniqueInputParameterName		./Input	@Name
unique	UniqueOutputParameterName		./Output	@Name

complexType
AlgorithmManyToManyAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

used by

element	AlgorithmManyToManyAlgorithmBase
complexTypes	BitmapType MathMLType URL-Defined-AlgorithmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for algorithms with M input and N output parameters.

element
AlgorithmManyToManyAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element can be used to describe the properties of an input parameter.

element
AlgorithmManyToManyAlgorithmType/Output

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element describes the properties of an output parameter.

complexType
AlgorithmManyToOneAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

used by

element	AlgorithmManyToOneAlgorithmBase
complexTypes	AlarmType Boolean-SimpleType Stuck-AlarmType Window-Function-AlarmType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for algorithms with M input parameters and one output parameter.

element
AlgorithmManyToOneAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element describes the properties of an input parameter.

element
AlgorithmManyToOneAlgorithmType/Output

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element can be used to describe the properties of the output parameter.

complexType
AlgorithmOneToManyAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

AlgorithmOneToManyAlgorithmBase

used by

element

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for algorithms with one input parameter and N output parameters.

element
AlgorithmOneToManyAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element can be used to describe the properties of the input parameter.

element
AlgorithmOneToManyAlgorithmType/Output

diagram


type

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element describes the properties of an output parameter.

complexType
AlgorithmOneToOneAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

used by

elements	AlgorithmOneToOneAlgorithmBase AlgorithmOneToZeroAlgorithmBase
complexTypes	Format-DescriptionType NSamplesInOneSampleOut-AmplitudeType NSamplesInOneSampleOut-AverageType NSamplesInOneSampleOut-MaximumType NSamplesInOneSampleOut-MinimumType NSamplesInOneSampleOut-RMSType PolynomialType TableType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for algorithms with one input parameter and one output parameter.

element
AlgorithmOneToOneAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element describes an input parameter.

element
AlgorithmOneToOneAlgorithmType/Output

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

ScaledBinaryCodedDecimalType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	optional

annotation

documentation

This element describes an output parameter.

complexType
AlgorithmOneToZeroAlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

Documentation Input

used by

complexType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

annotation

documentation

This is the base type for algorithms with one input parameter and no output parameters.

element
AlgorithmOneToZeroAlgorithmType/Input

diagram


type

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required

annotation

documentation

This element describes an input parameter.

complexType
AlgorithmType

diagram


type

extension of CommonAlgorithmType

properties

base	CommonAlgorithmType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing

used by

complexType

Bit-EnumerationsType

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Enabled	xs:boolean	optional	true

element
X-PackageBase

diagram


type

PackageType

properties

content	complex
substGrp	CommonPackageBase
abstract	true

children

used by

elements	LinkType/Packages Packages/PackageSet
group	PackageMappingCommonGroup

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

All the built-in package definitions belong to this substitution group.

complexType
PackageType

diagram


type

extension of CommonPackageType

properties

base	CommonPackageType

children

Documentation ReferencedToAbsoluteTime PackageRate PlaceParametersContiguously Sequencing

used by

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional
Enabled	xs:boolean	optional	true

annotation

documentation

This element type is the base type for all the built in package definitions in the XidMlL schema.

element
HashBinary

diagram


type

HashBinaryType

properties

content

complex

children

Value OffsetIndex_Bits OffsetIndex_Bytes OffsetIndex_Words

used by

elements

FirewireType/Properties Network-TransportType/Properties

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	optional

complexType
HashBinaryType

diagram


children

Value OffsetIndex_Bits OffsetIndex_Bytes OffsetIndex_Words

used by

elements

HashBinary CAN-Bus-MessageType/Properties/HashBinary

attributes

Name	Type	Use	Default	Fixed	annotation
Name	xs:string	optional

attribute
HashBinaryType/@Name

type

xs:string

properties

isRef	0
use	optional

element
HashBinaryType/Value

diagram

type

restriction of xs:string

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

pattern

[1,0,*]+

annotation

documentation

The value that occurs at the specified location

element
HashBinaryType/OffsetIndex_Bits

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Specifies the offset in bits of the locaton conatining the specified value.

element
HashBinaryType/OffsetIndex_Bytes

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Specifies the offset in bytes of the locaton conatining the specified value.

element
HashBinaryType/OffsetIndex_Words

diagram

type

xs:unsignedInt

properties

isRef	0
content	simple

annotation

documentation

Specifies the offset in words of the locaton conatining the specified value.

element
LinkBase

diagram


type

X-DataLinkType

properties

content	complex
substGrp	CommonLinkBase
abstract	true

children

used by

elements

Channel Links/LinkSet

attributes

Name	Type	Use	Default	Fixed	annotation
Name	derived by: xs:string	required
Version	xs:decimal	optional

annotation

documentation

All the built-in package definitions belong to this substitution group.

complexType
X-DataLinkType

diagram


type

extension of CommonLinkType

properties

base	CommonLinkType

children
